Spare Parts for Huben GK1 Air Pistol
Spare Parts for Huben GK1 Air Pistol
Precio habitual
€8,70
Precio de venta
€8,70
Precio habitual
Impuestos incluidos.
Envío calculado al finalizar la compra.
Huben Spare Parts for GK1 provide essential replacements to keep your airgun performing at its best. Designed for durability and precision, these components ensure reliable maintenance and optimal function.
Technical Specifications
| Item | Specification |

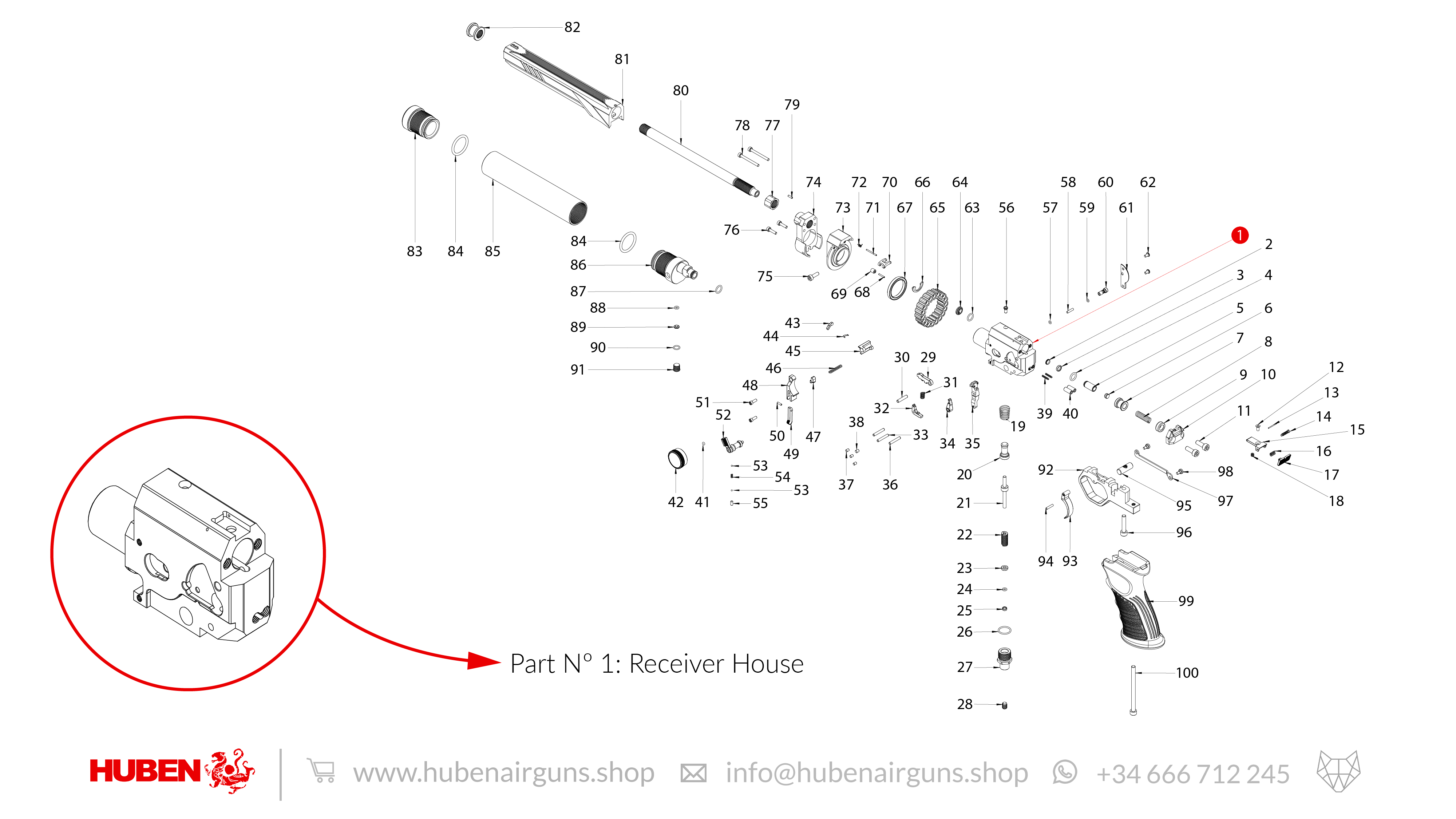

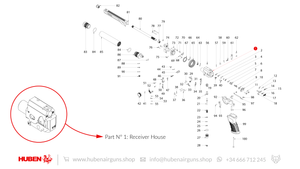

| 1 | Receiver |

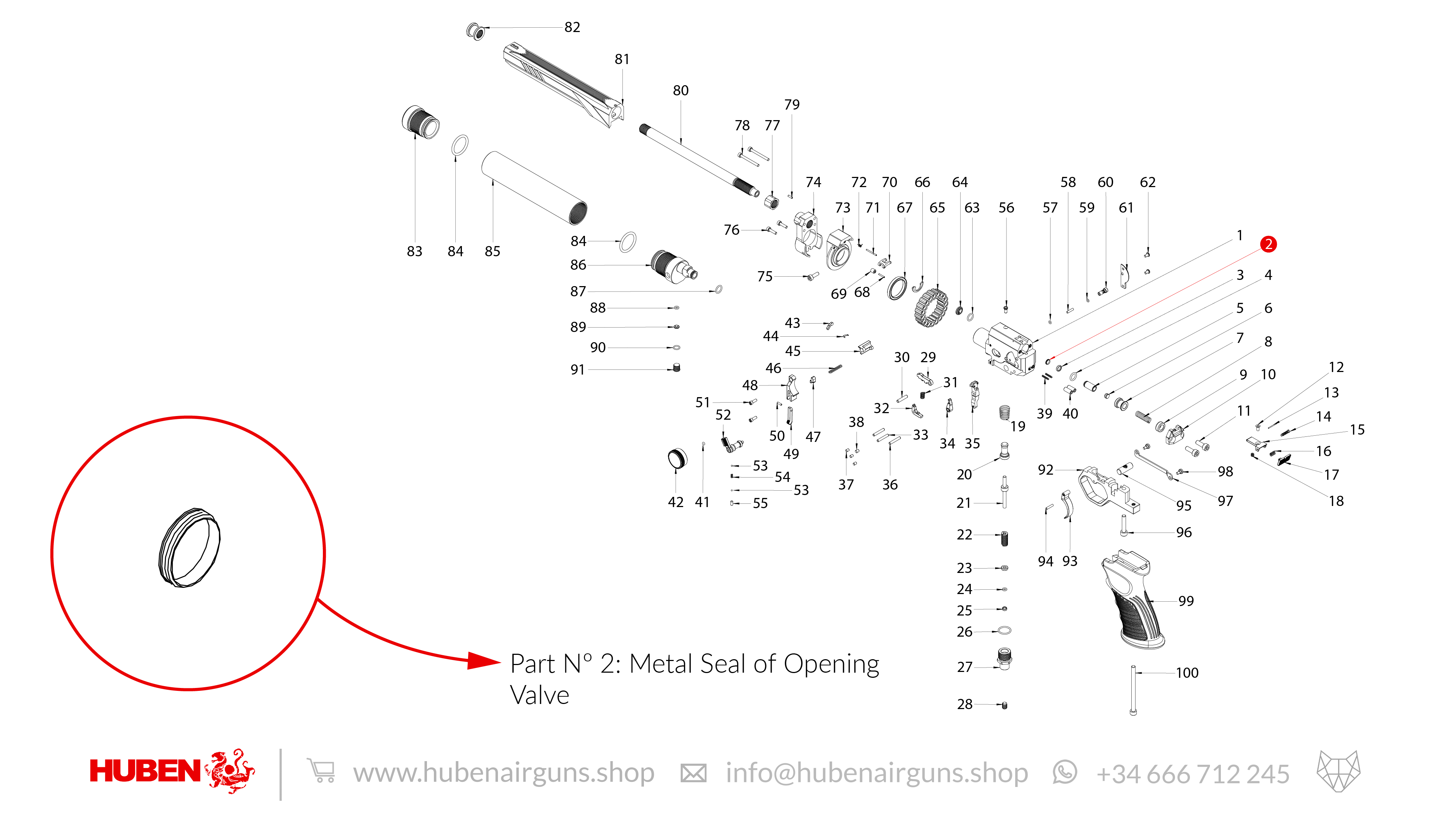

| 2 | Metal Seal of Opening Valve |
| 3 | Plastic Seal of Opening Valve |
| 4 | Opening Valve O-Ring 11.6x1.8 NBR90 |

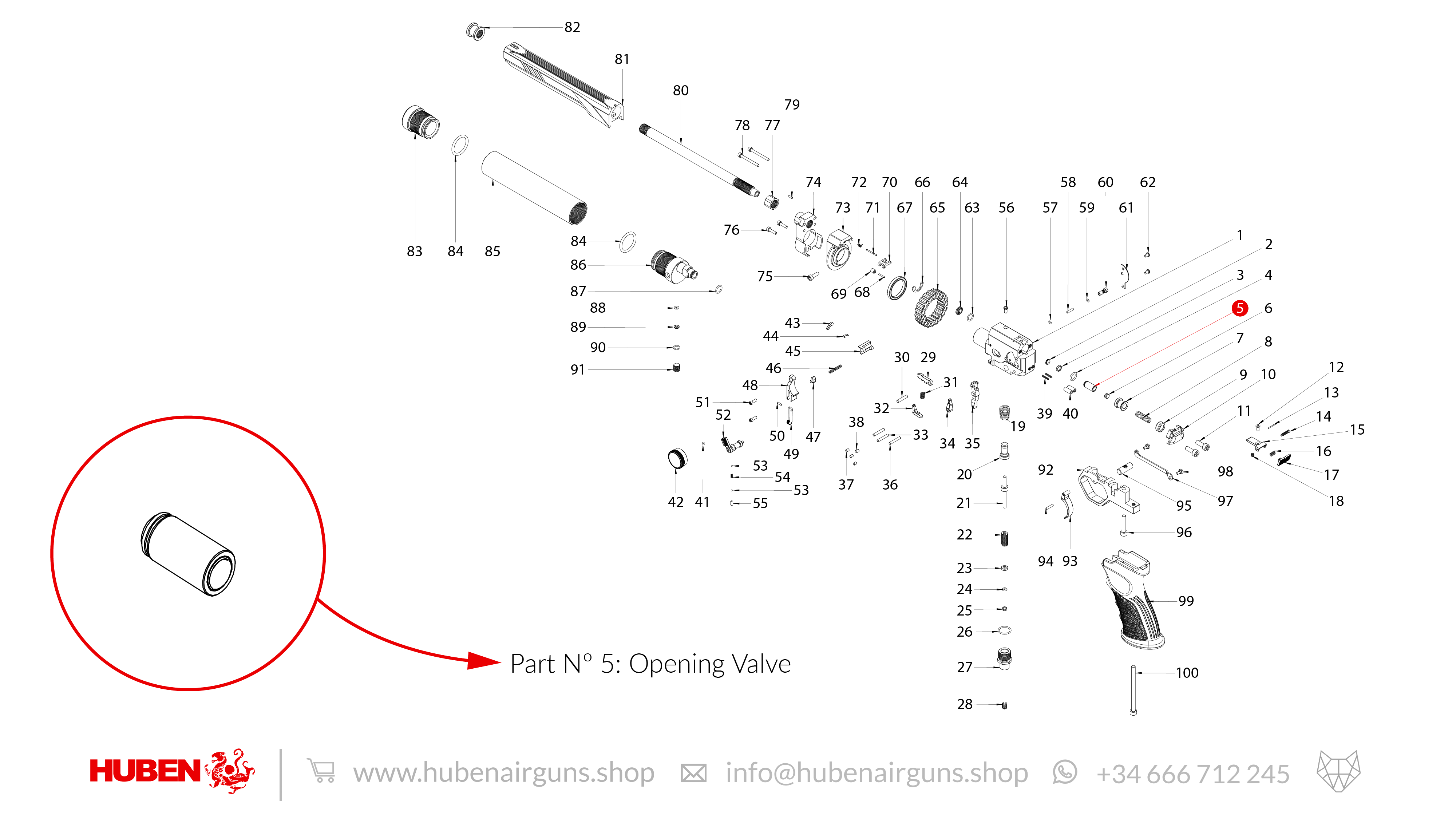

| 5 | Opening Valve |
| 6 | Striker Plastic Cap Cover |

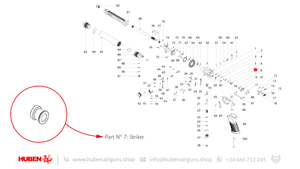

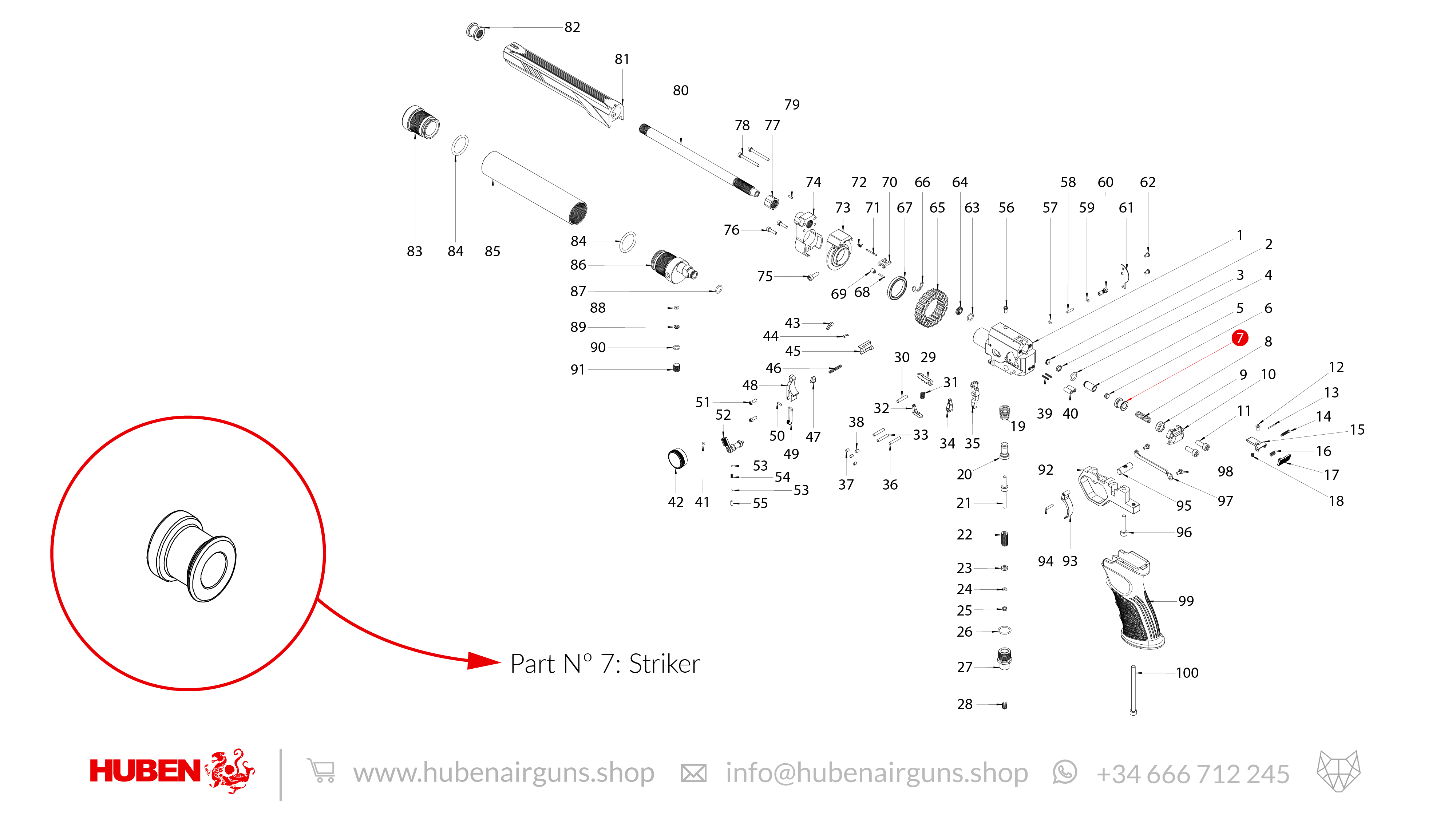

| 7 | Striker |

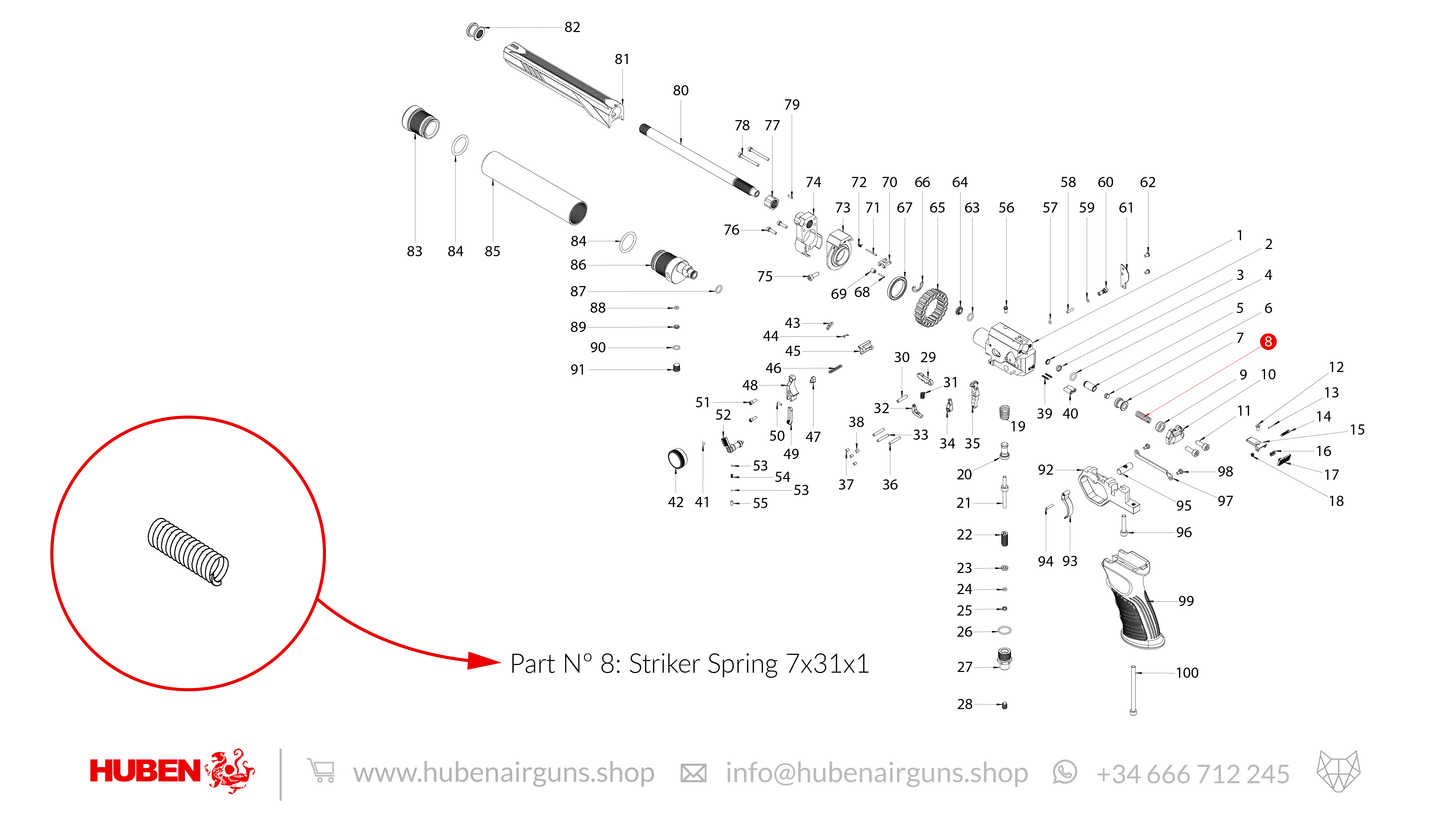

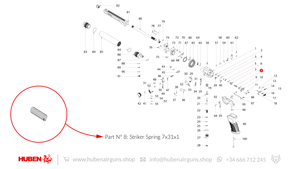

| 8 | Striker Spring 7x31x1 |

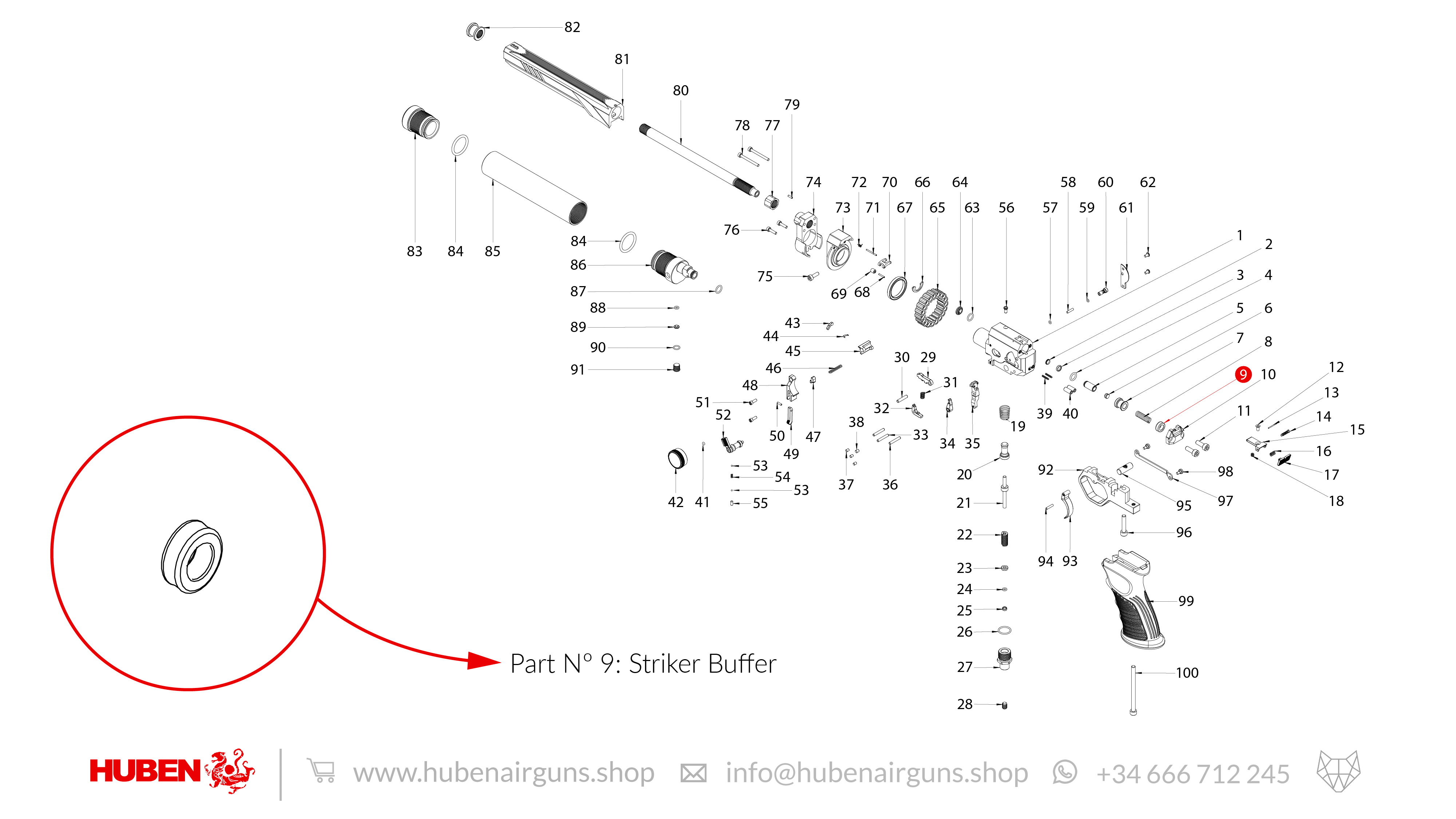

| 9 | Striker Buffer |

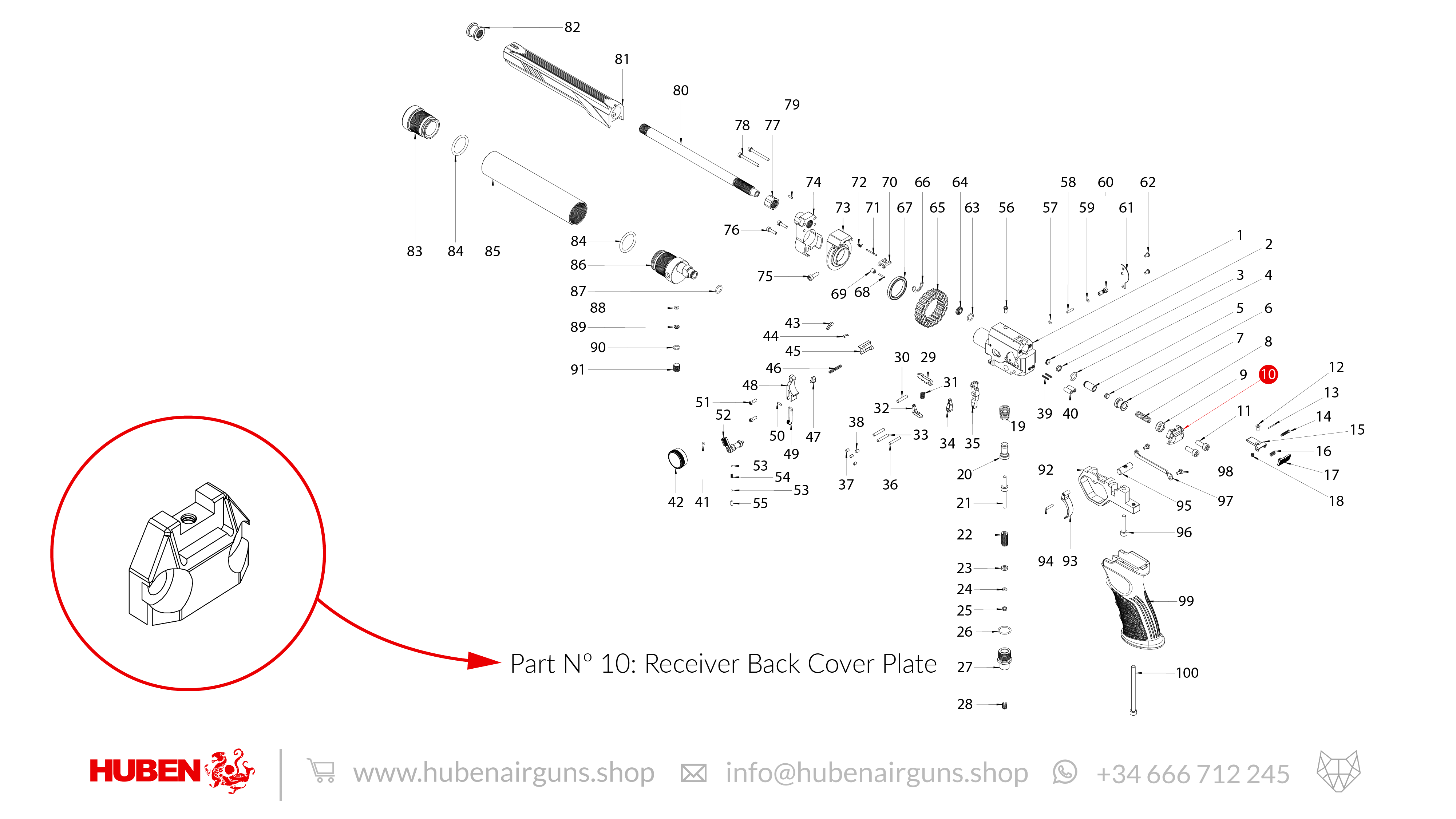

| 10 | Receiver Back Cover Plate |
| 11 | Original Receiver Back Cover Plate Allen Screw M5x14 (x2) |
| 12 | Rear Sight Base Height Adjust Screw M3x6 |

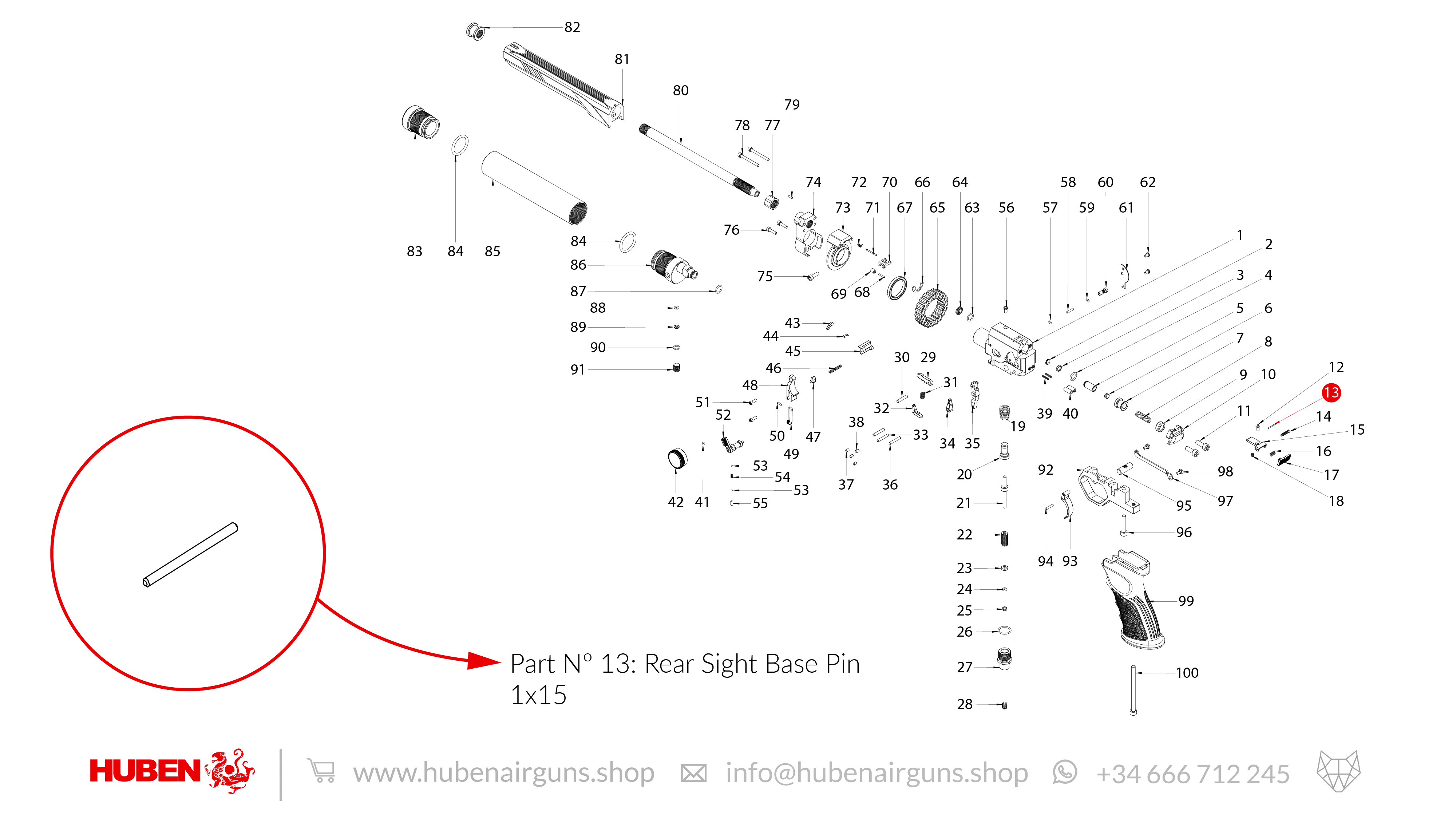

| 13 | Rear Sight Base Pin 1x15 |
| 14 | Rear Sight Base Adjust Screw |

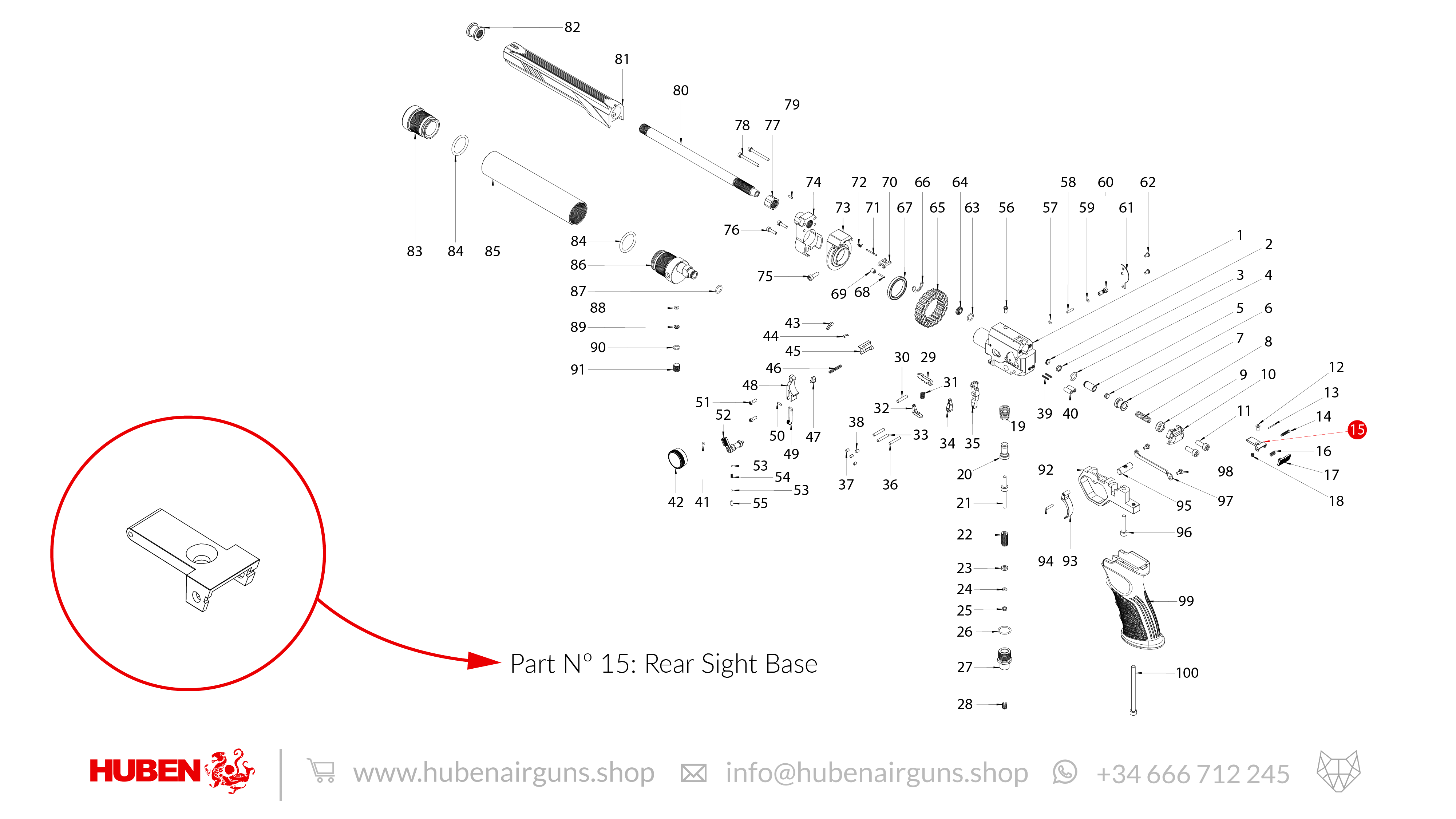

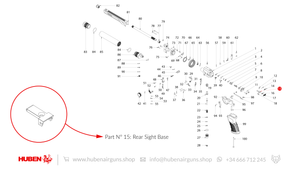

| 15 | Rear Sight Base |

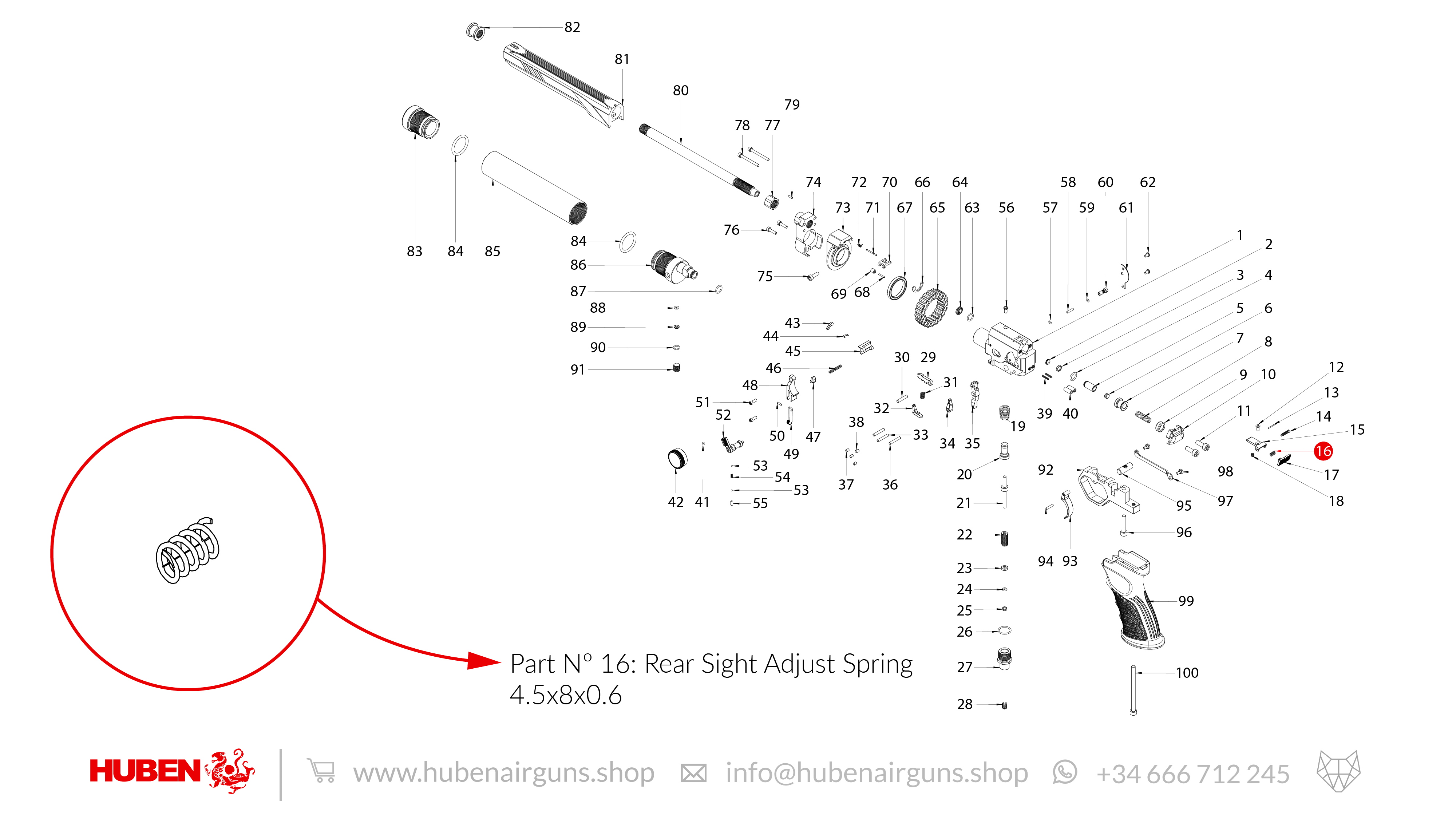

| 16 | Rear Sight Adjust Spring 4.5x8x0.6 |

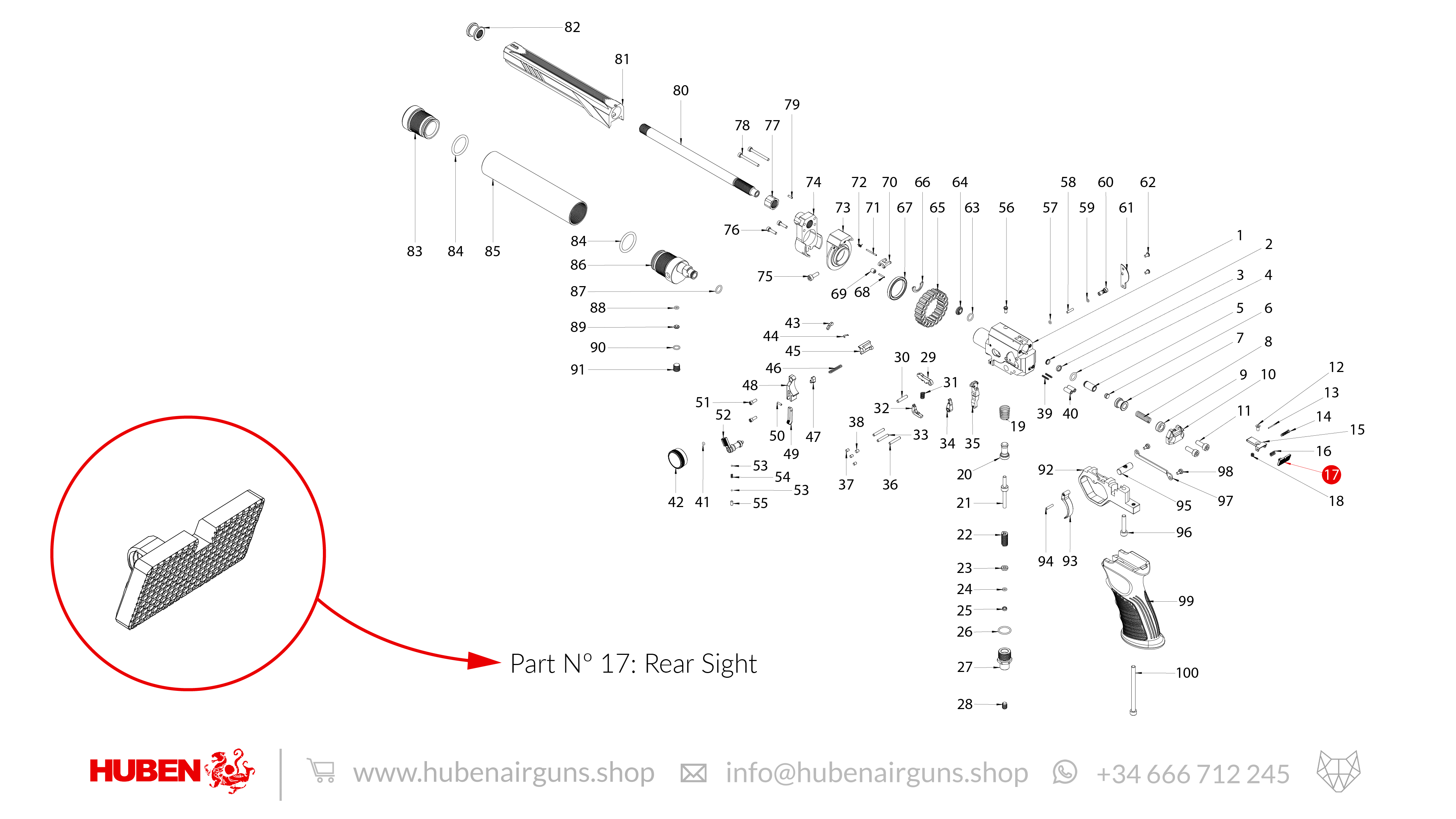

| 17 | Rear Sight |

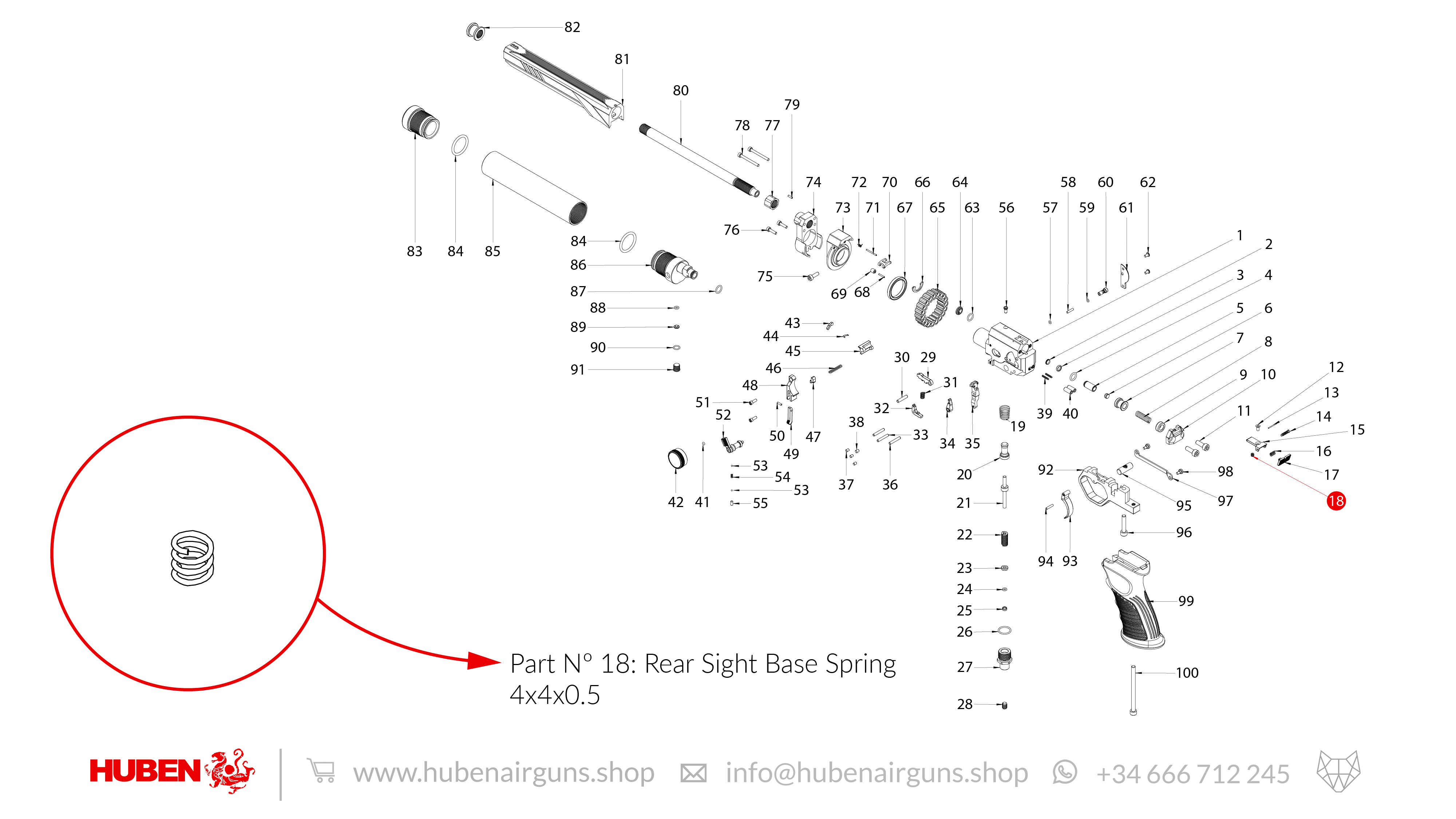

| 18 | Rear Sight Base Spring 4x4x0.5 |

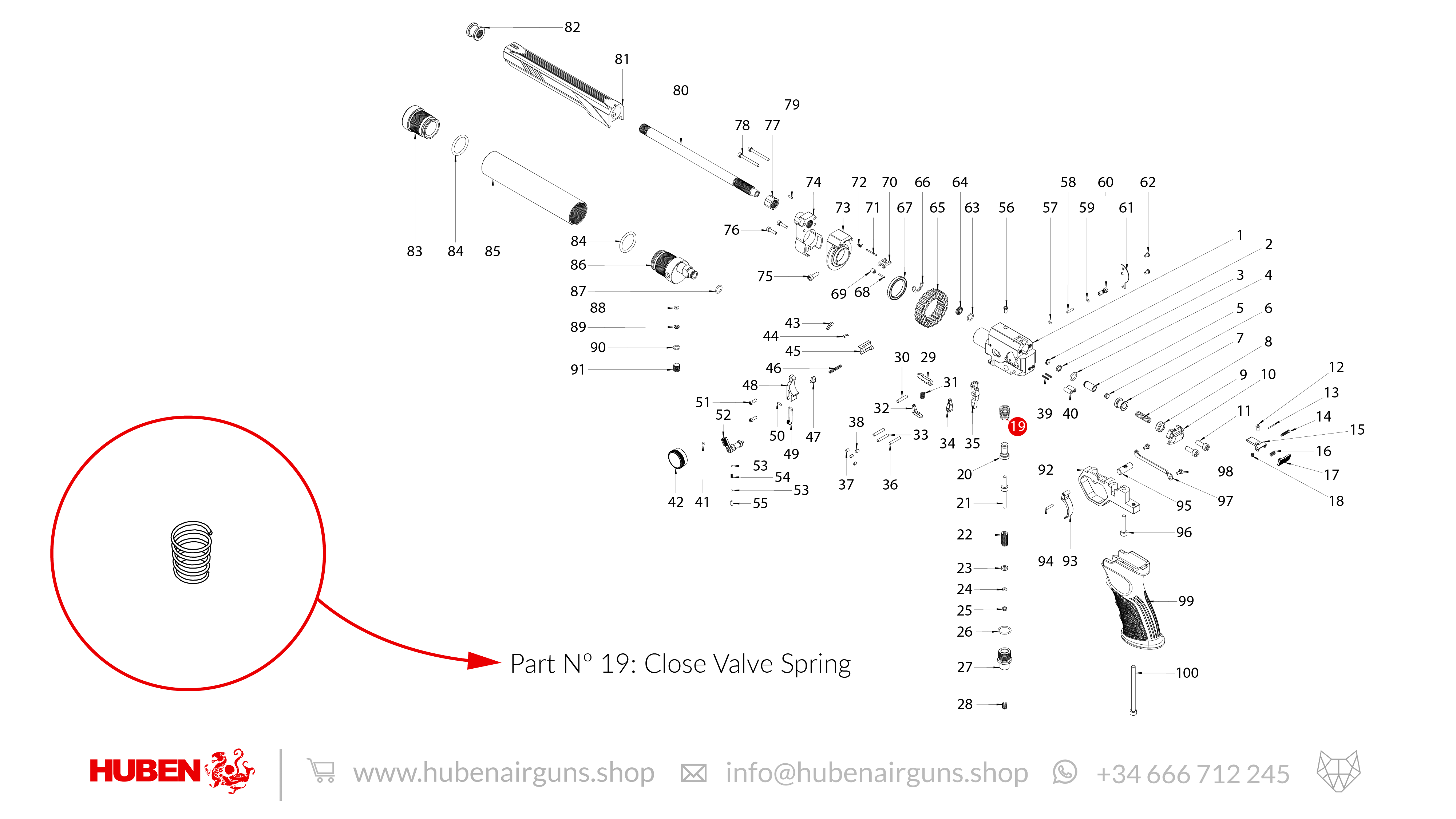

| 19 | Close Valve Spring |

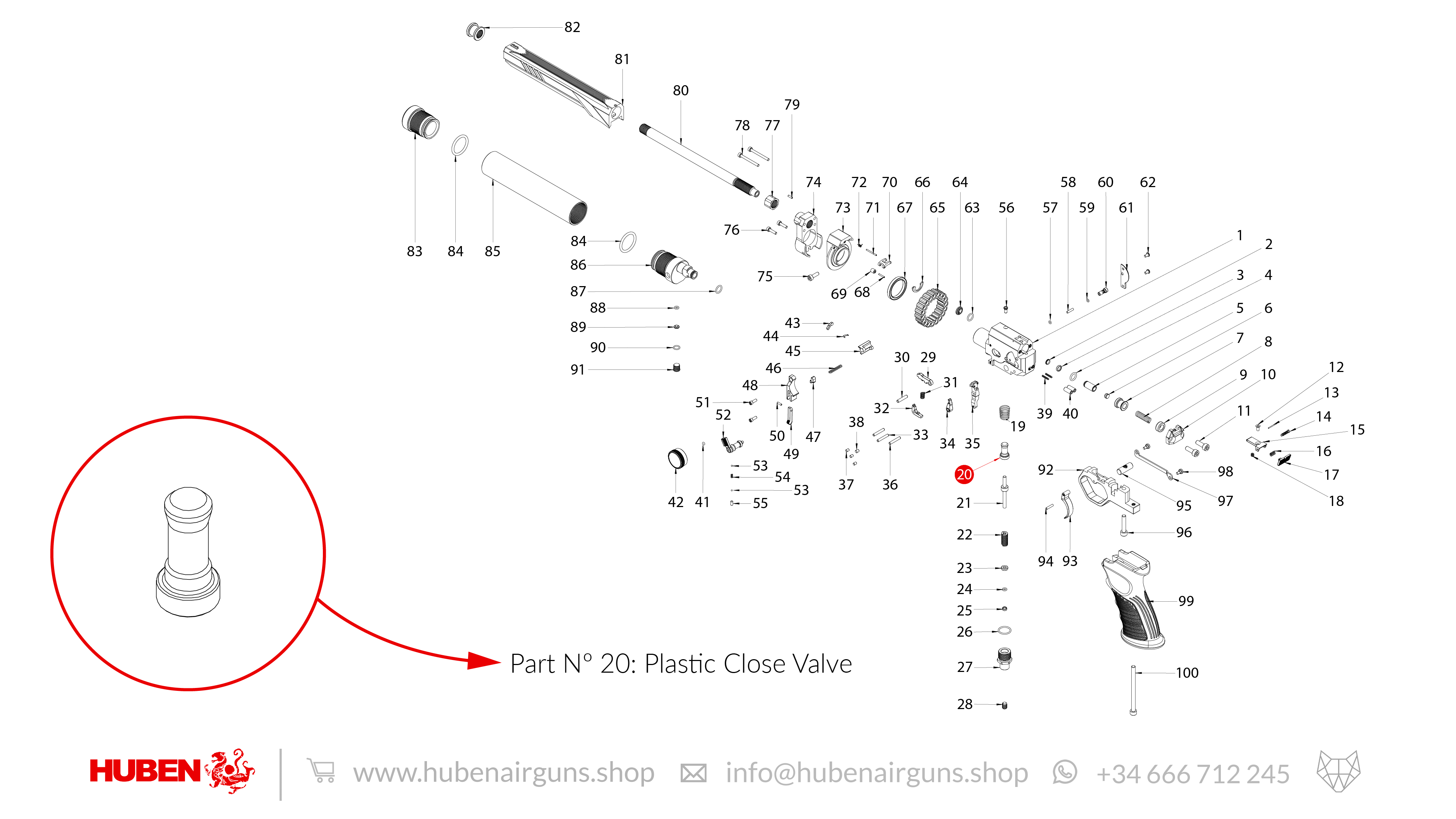

| 20 | Plastic Close Valve |

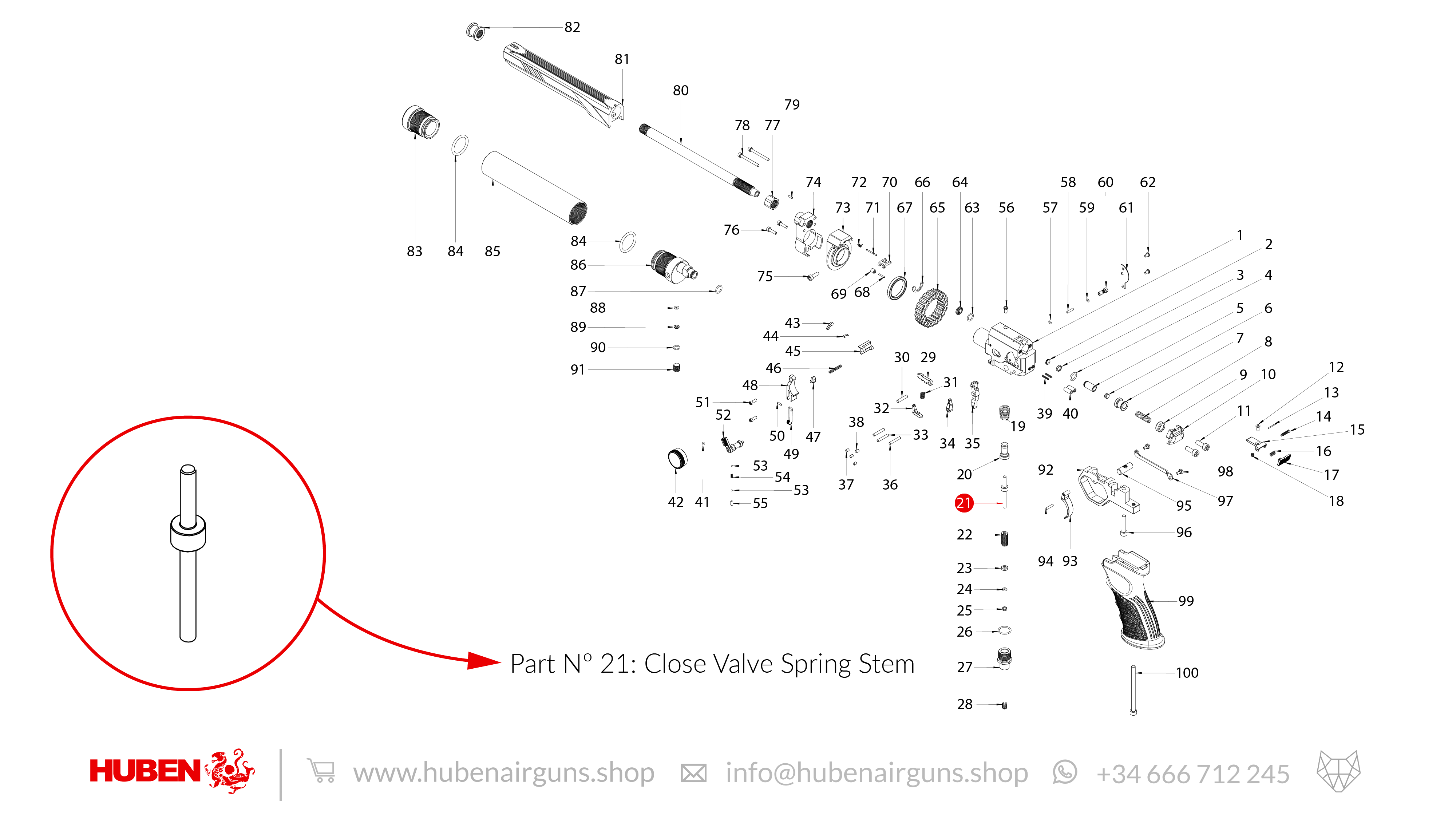

| 21 | Close Valve Spring Stem |

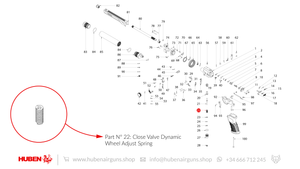

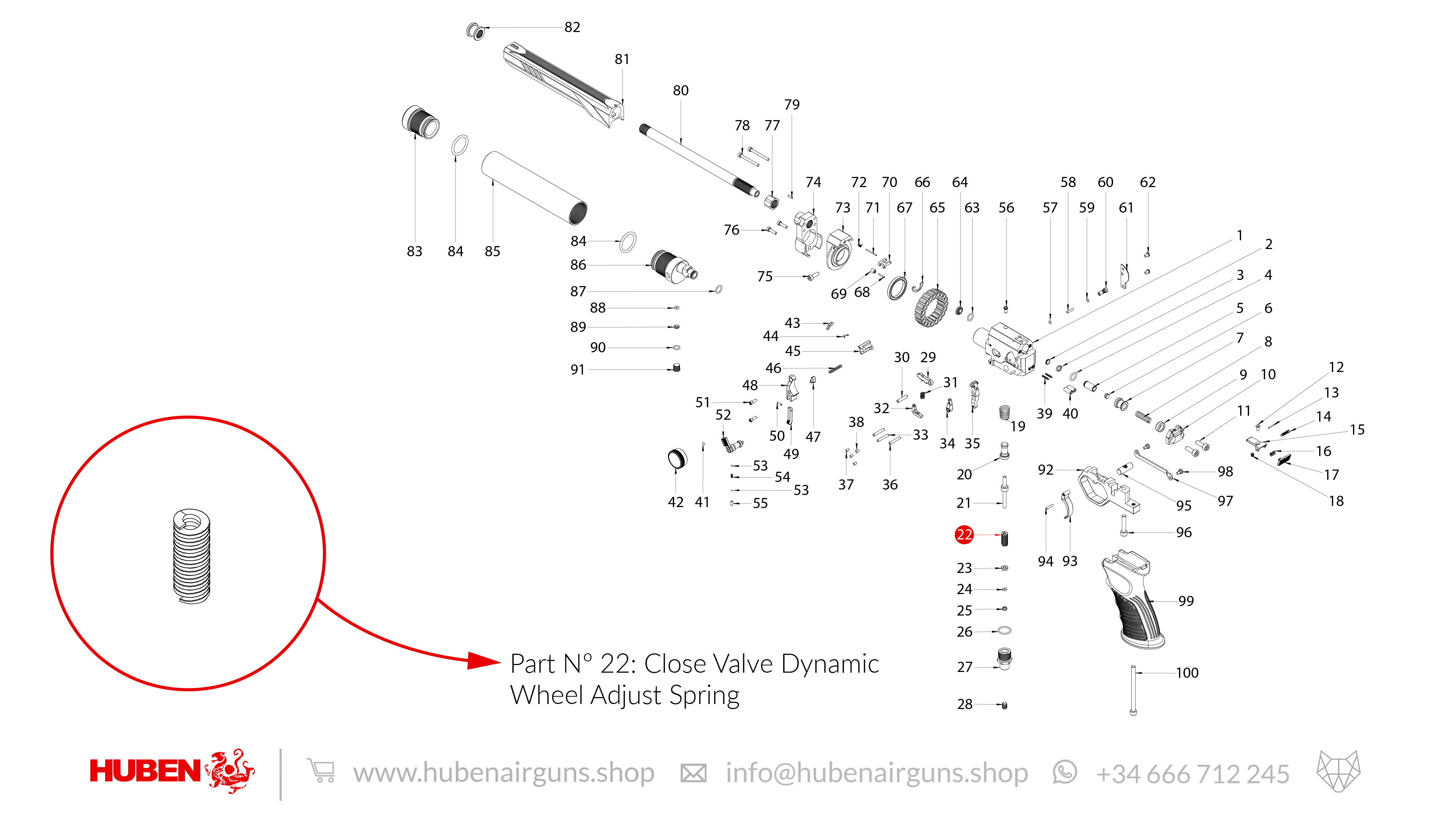

| 22 | Close Valve Dynamic Wheel Adjust Spring |
| 23 | Close Valve Brass Housing Internal to Stem Seal |
| 24 | Close Valve Brass Housing Internal Seal Btm 6.4x1.2 NBR90 |
| 25 | Close Valve Brass Housing Internal Seal Top |
| 26 | Close Valve Brass Housing O-Ring 17x1.5 NBR90 |

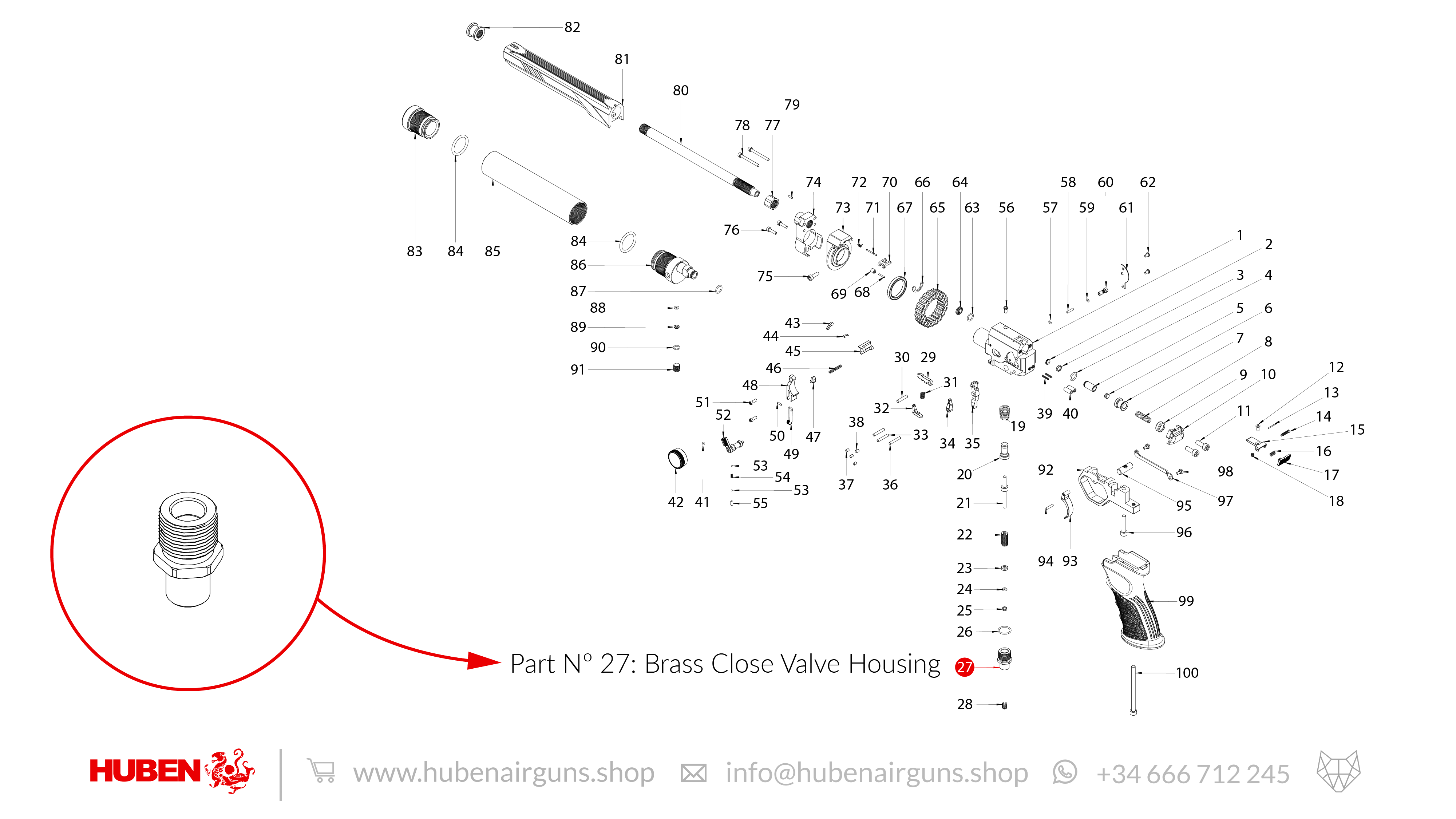

| 27 | Brass Close Valve Housing |
| 28 | Dynamic Power Adjust Screw M6x8 |

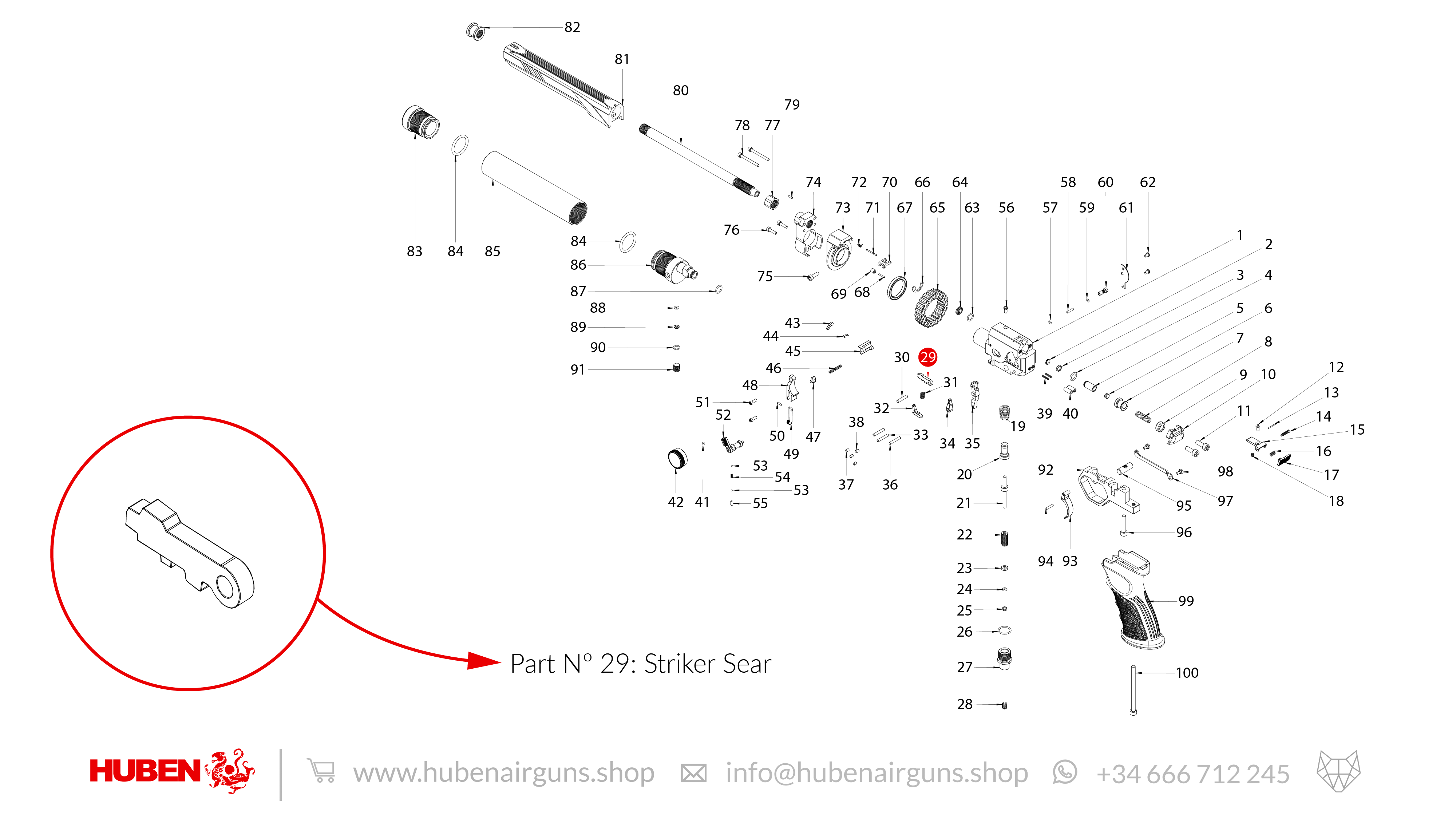

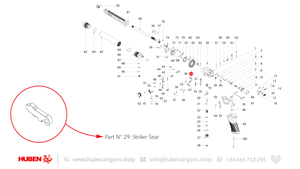

| 29 | Striker Sear |

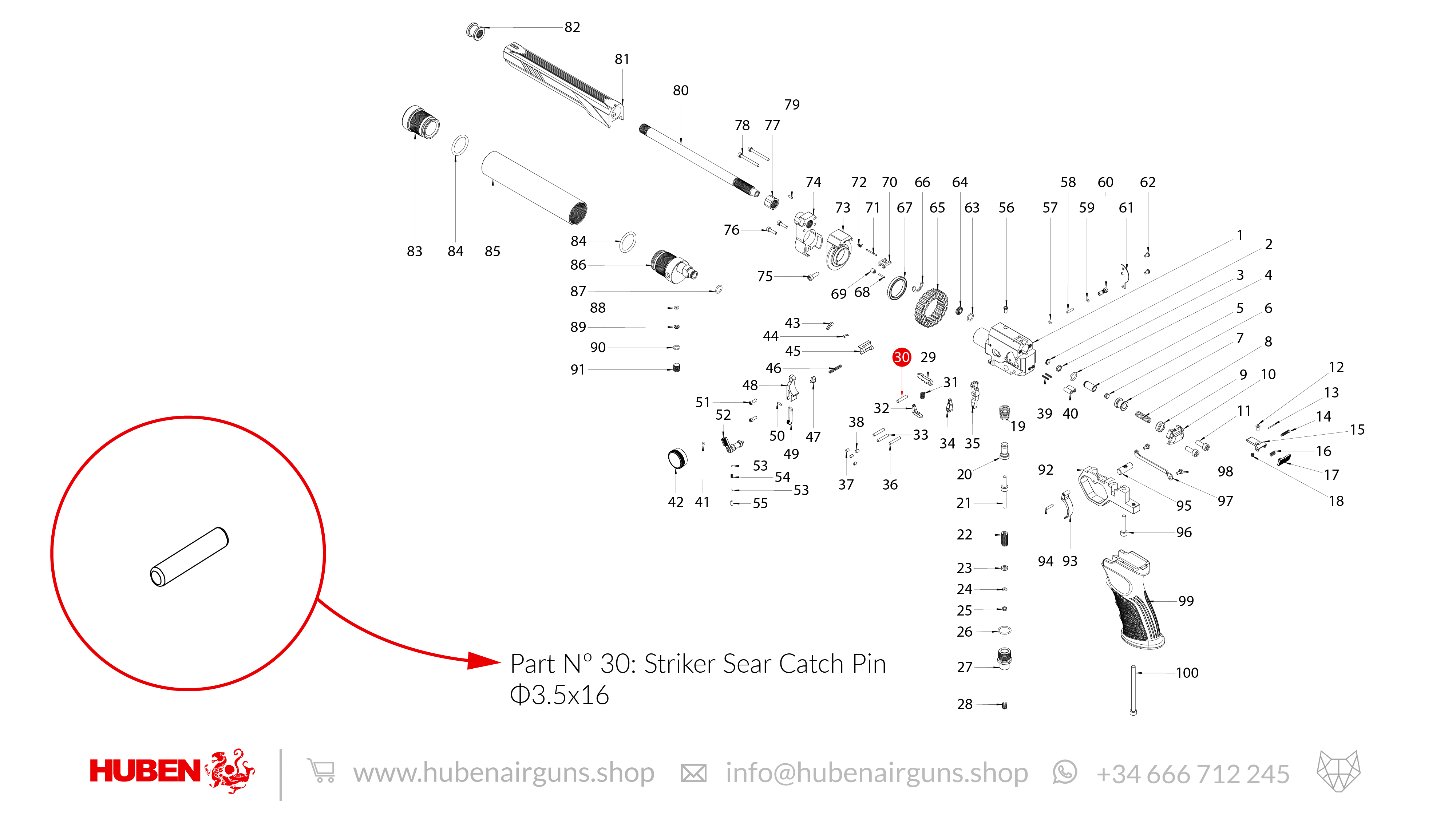

| 30 | Striker Sear Catch Pin Φ3.5x16 |
| 31 | Sear Spring 5.3x13x0.5 |

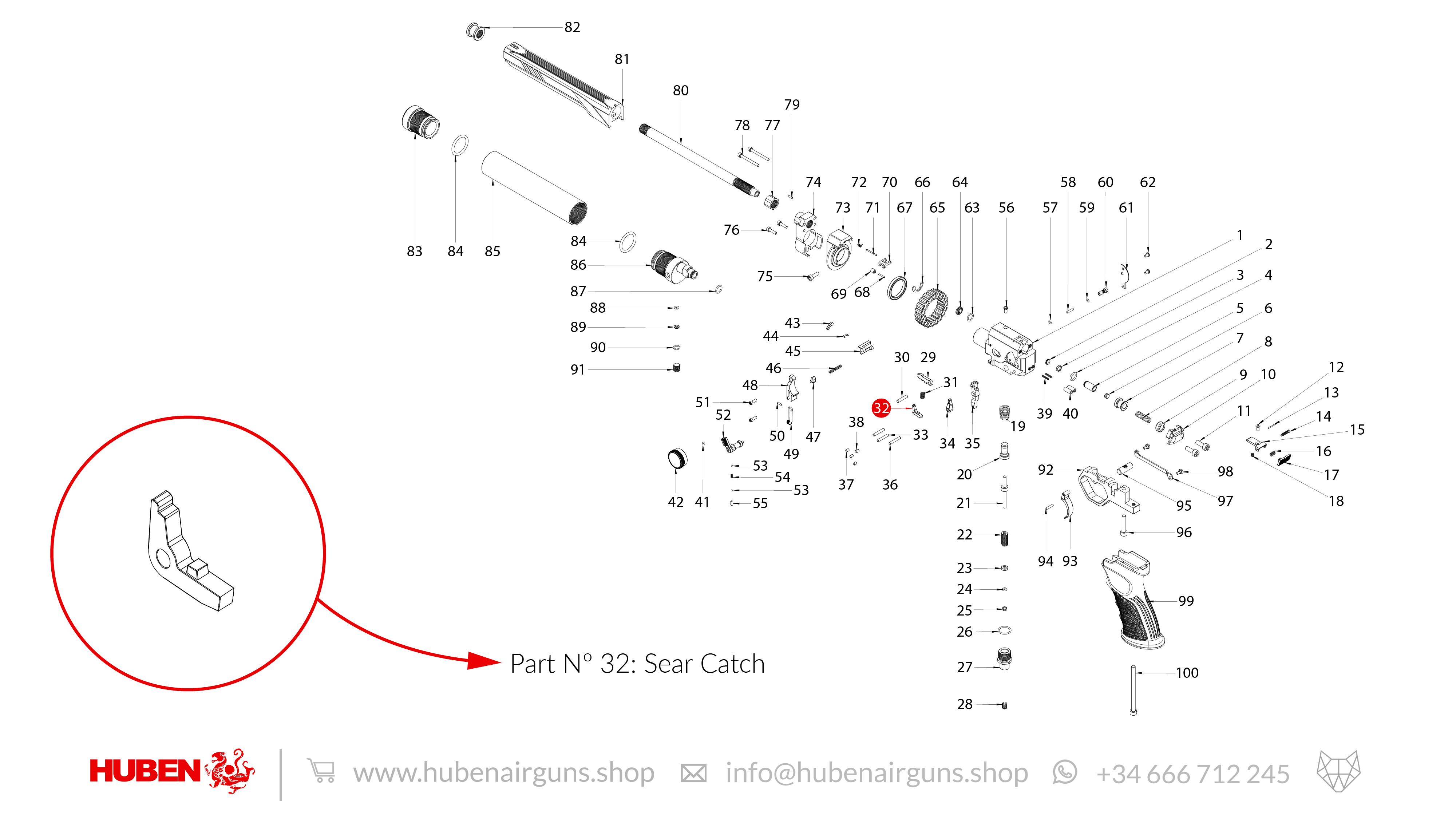

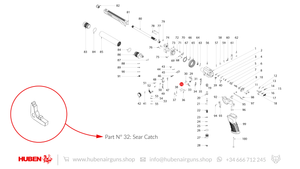

| 32 | Sear Catch |
| 33 | Trigger Arm Pin Φ3x17 (x2) |

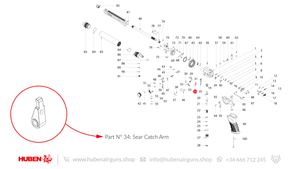

| 34 | Sear Catch Arm |

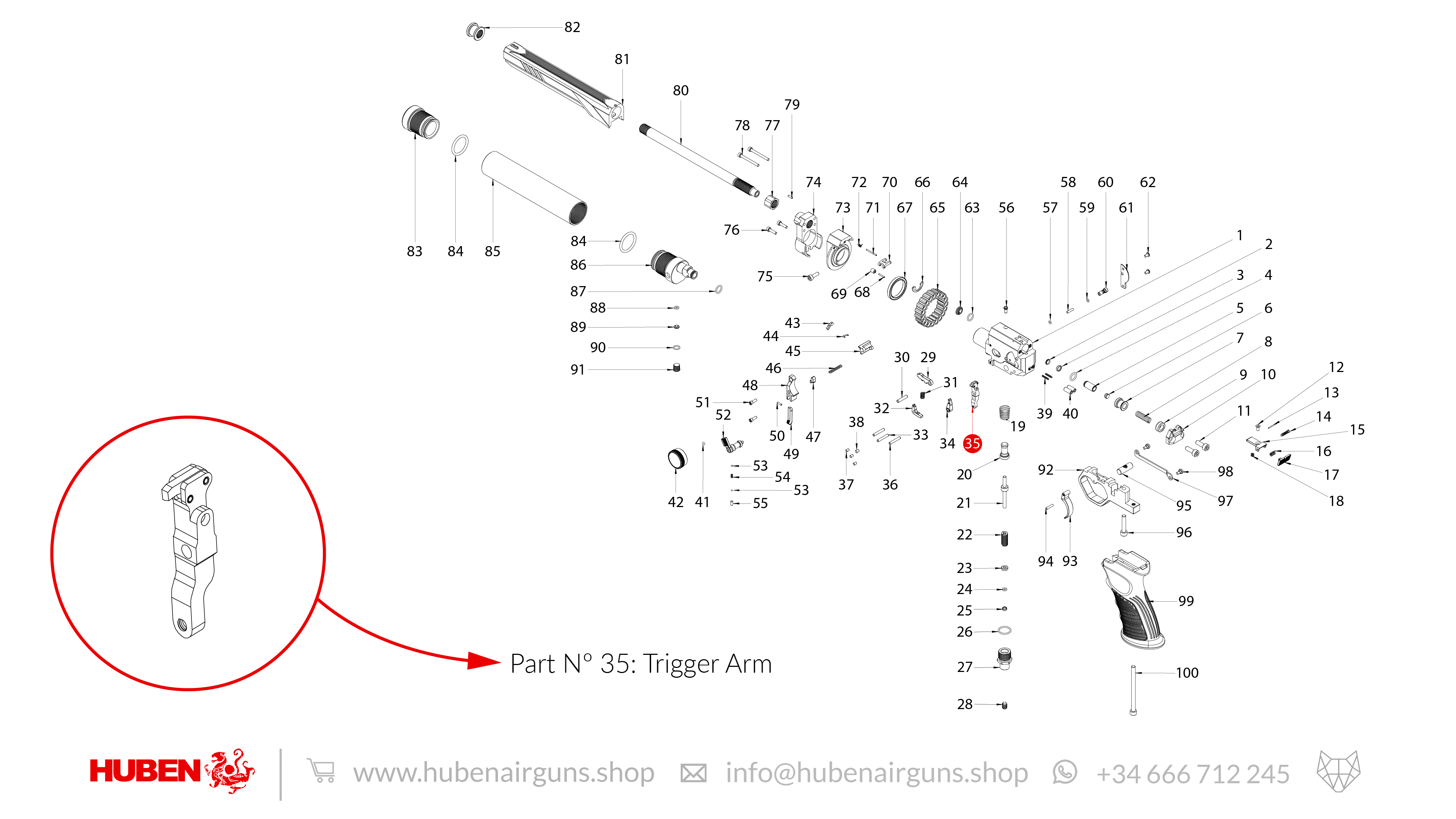

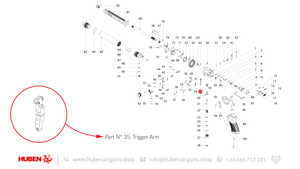

| 35 | Trigger Arm |
| 36 | Sear Catch Arm Pin Φ3x19 |

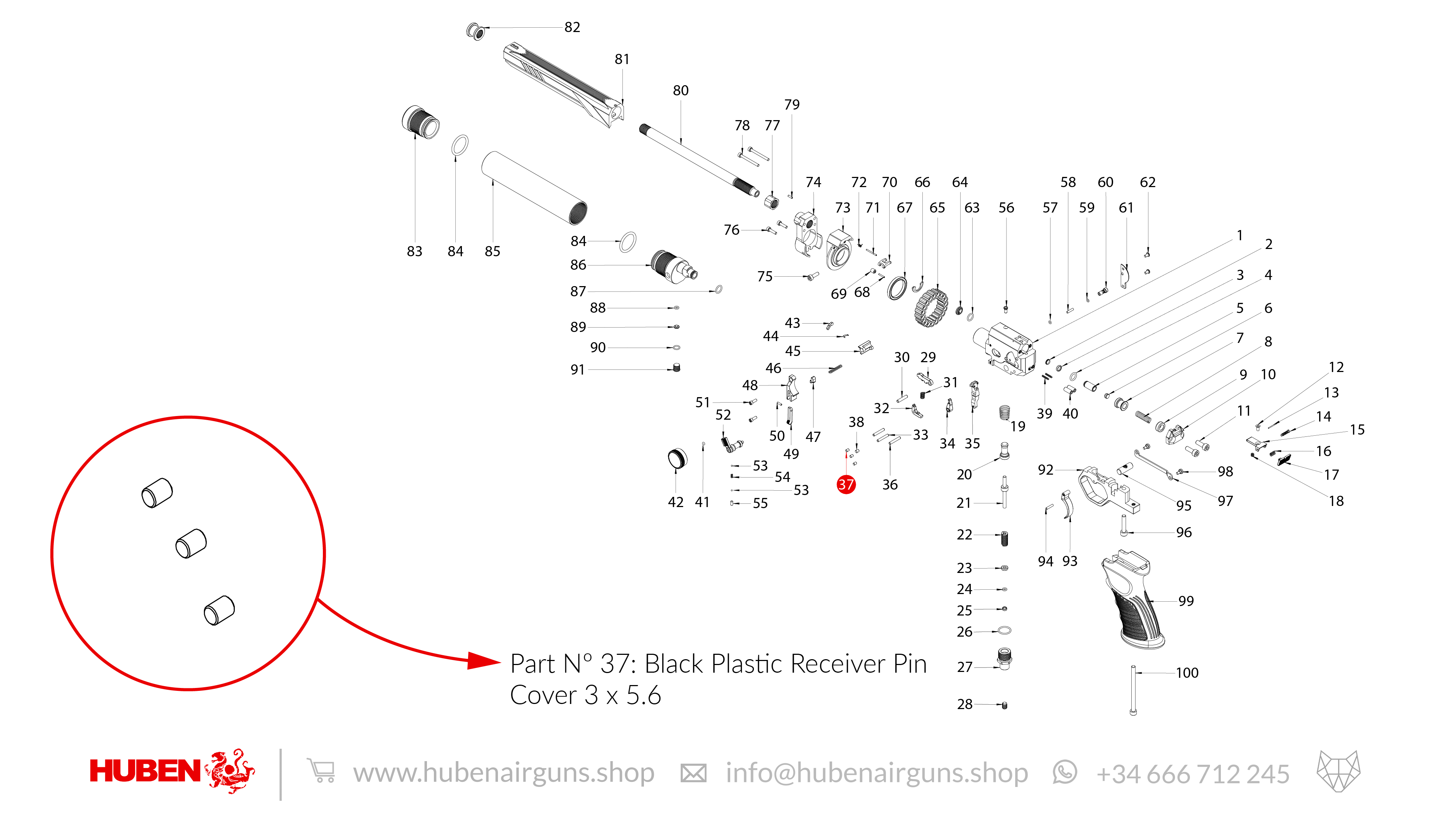

| 37 | Black Plastic Receiver Pin Cover 3 x 5.6 (x3) |
| 38 | Black Plastic Receiver Pin Cover 3.5 x 5.6 |

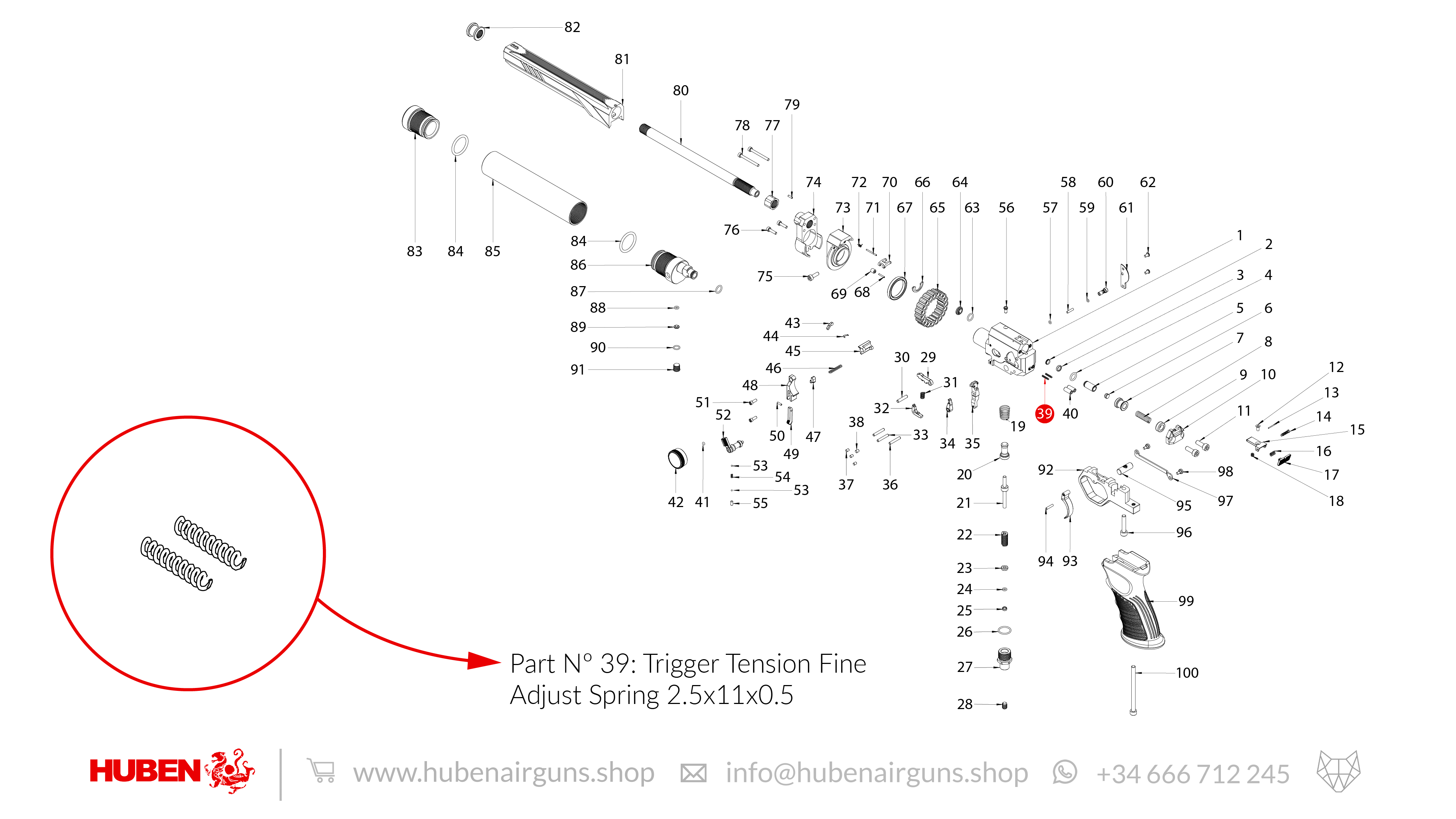

| 39 | Trigger Tension Fine Adjust Spring 2.5x11x0.5 (x2) |

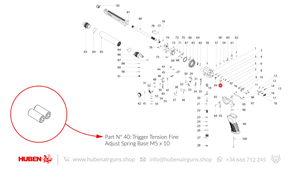

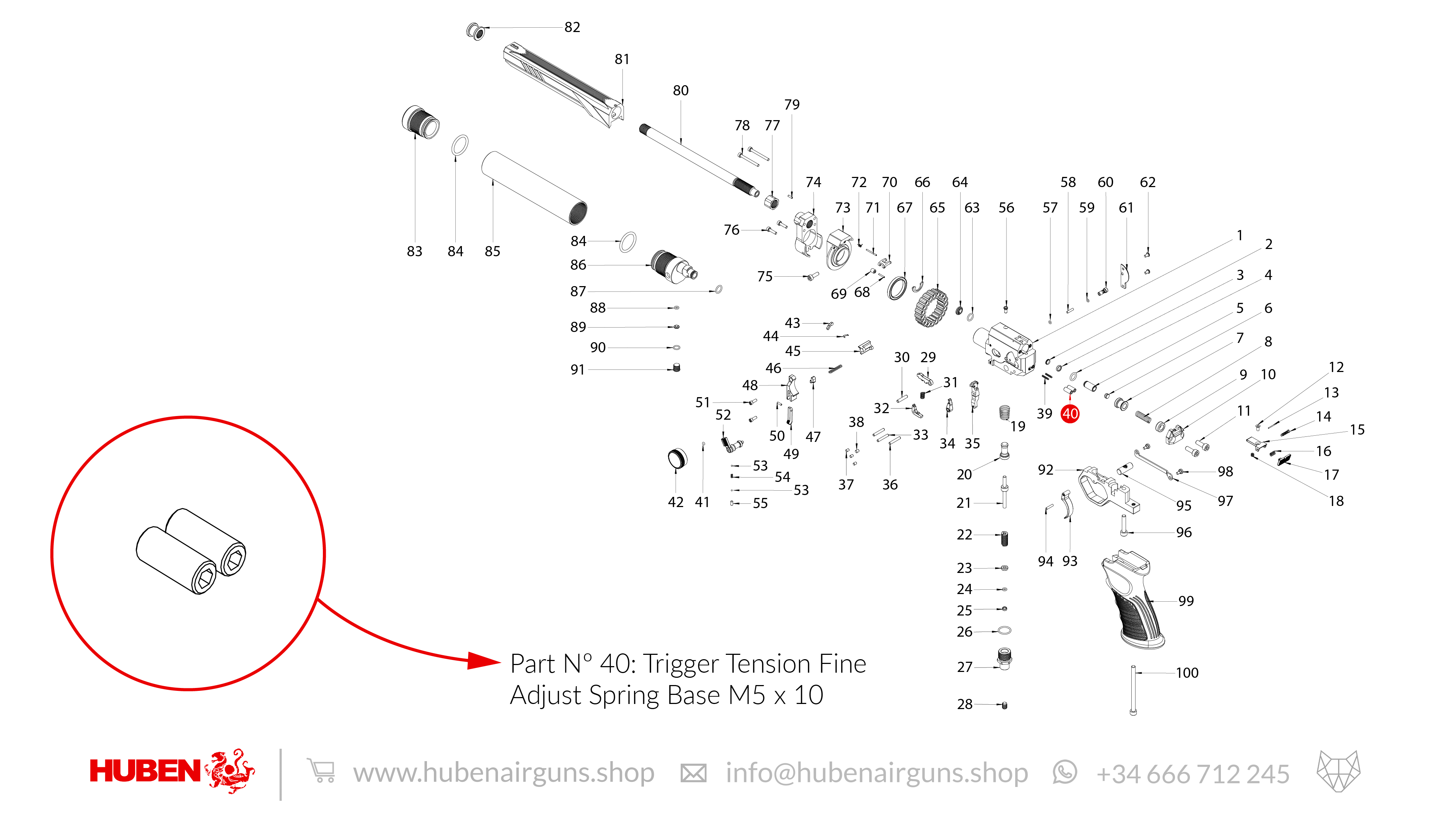

| 40 | Trigger Tension Fine Adjust Spring Base M5 x 10 (x2) |
| 41 | Pressure Gauge O-Ring 4x1.5 NBR90 |

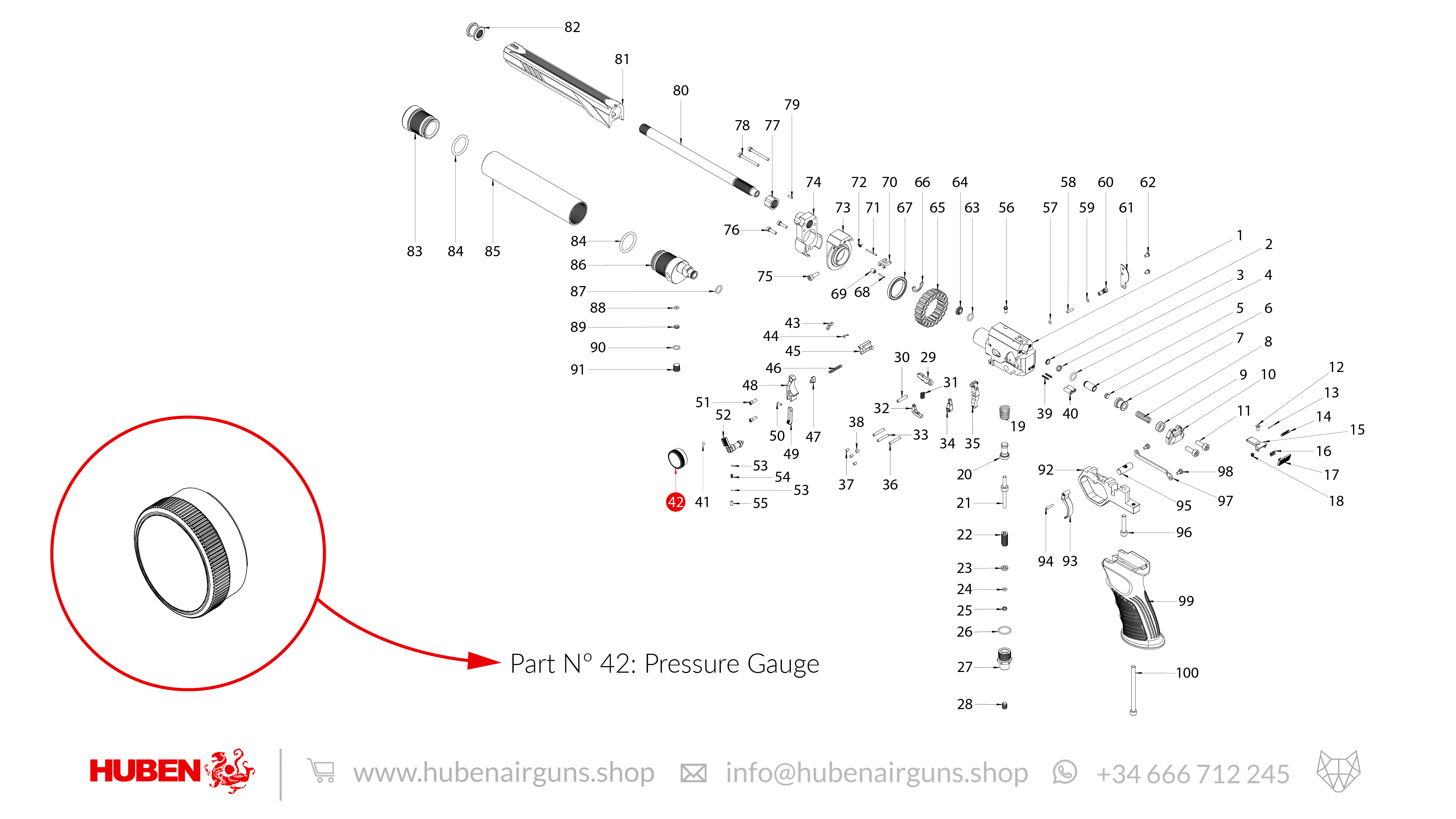

| 42 | Pressure Gauge |
| 43 | Magazine Indexing Arm |
| 44 | Magazine Indexing Spring |

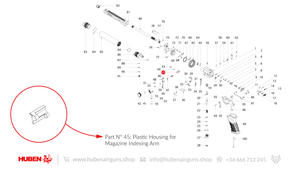

| 45 | Plastic Housing for Magazine Indexing Arm |
| 46 | Magazine Release Arm Tension Spring 2.9x30x0.6 |

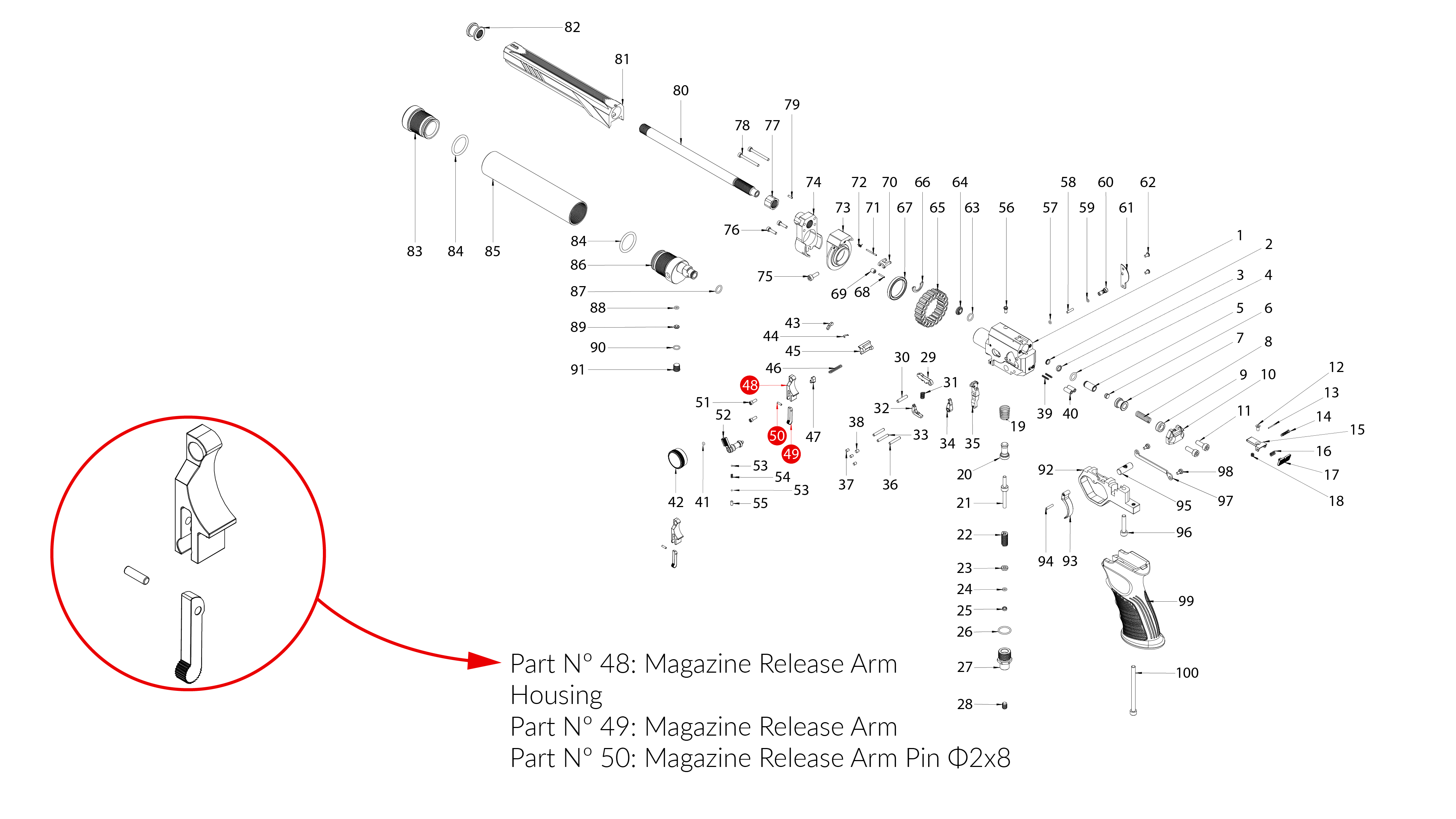

| 47 | Magazine Release Pusher |
| 48 | Magazine Release Arm Housing |
| 49 | Magazine Release Arm |
| 50 | Magazine Release Arm Pin Φ2x8 |
| 51 | Magazine Release Assembly Allen Screw M3x8 (x2) |

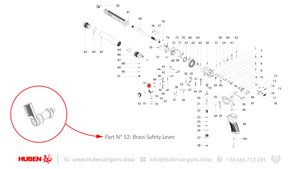

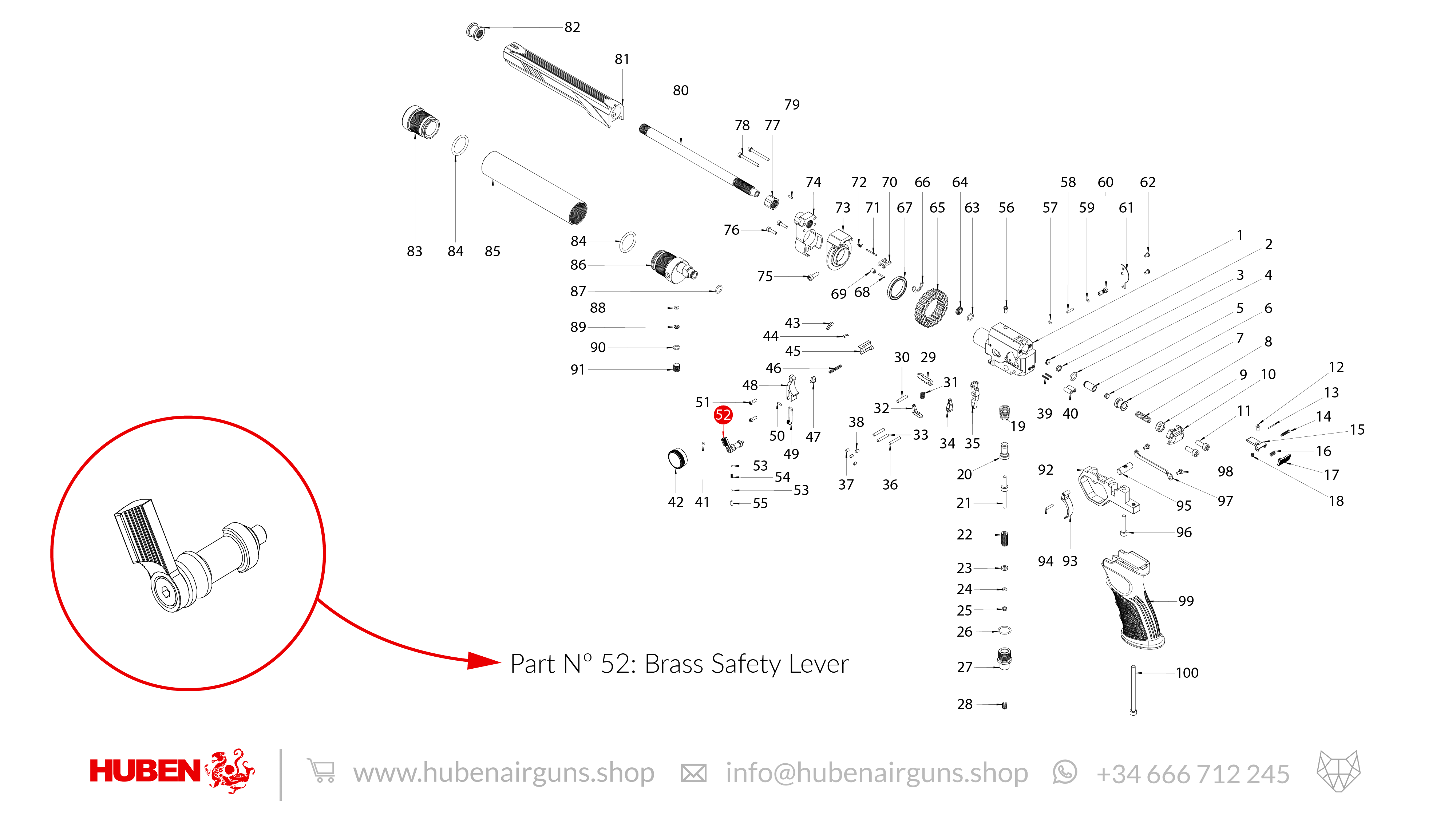

| 52 | Brass Safety Lever |

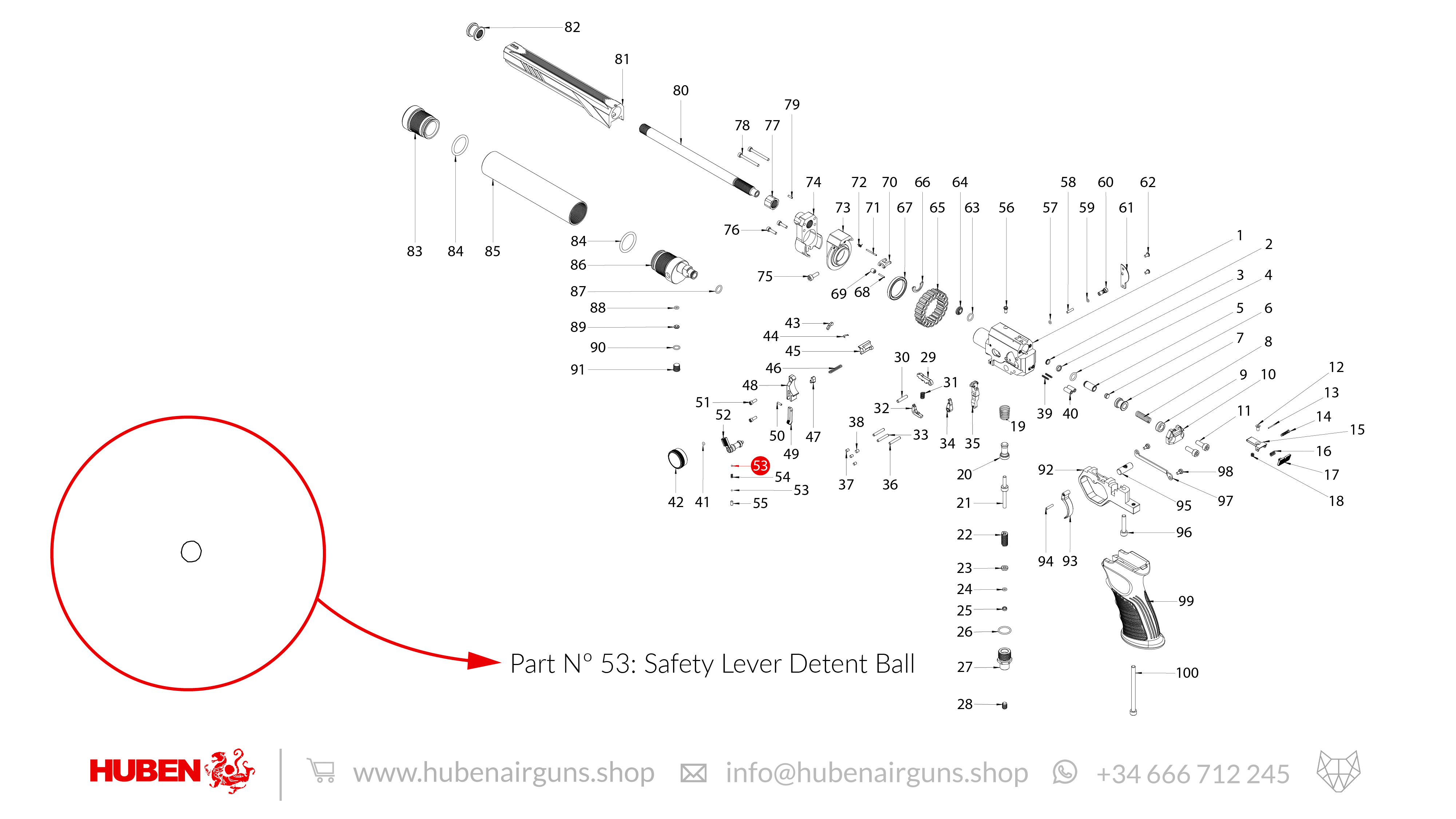

| 53 | Original Safety Lever Detent Ball (3mm) (x2) |
| 54 | Safety Lever Detent Ball Spring 3x5.5x0.6 |
| 55 | Safety Lever Adjust Tension Allen Set Screw M4x6 |

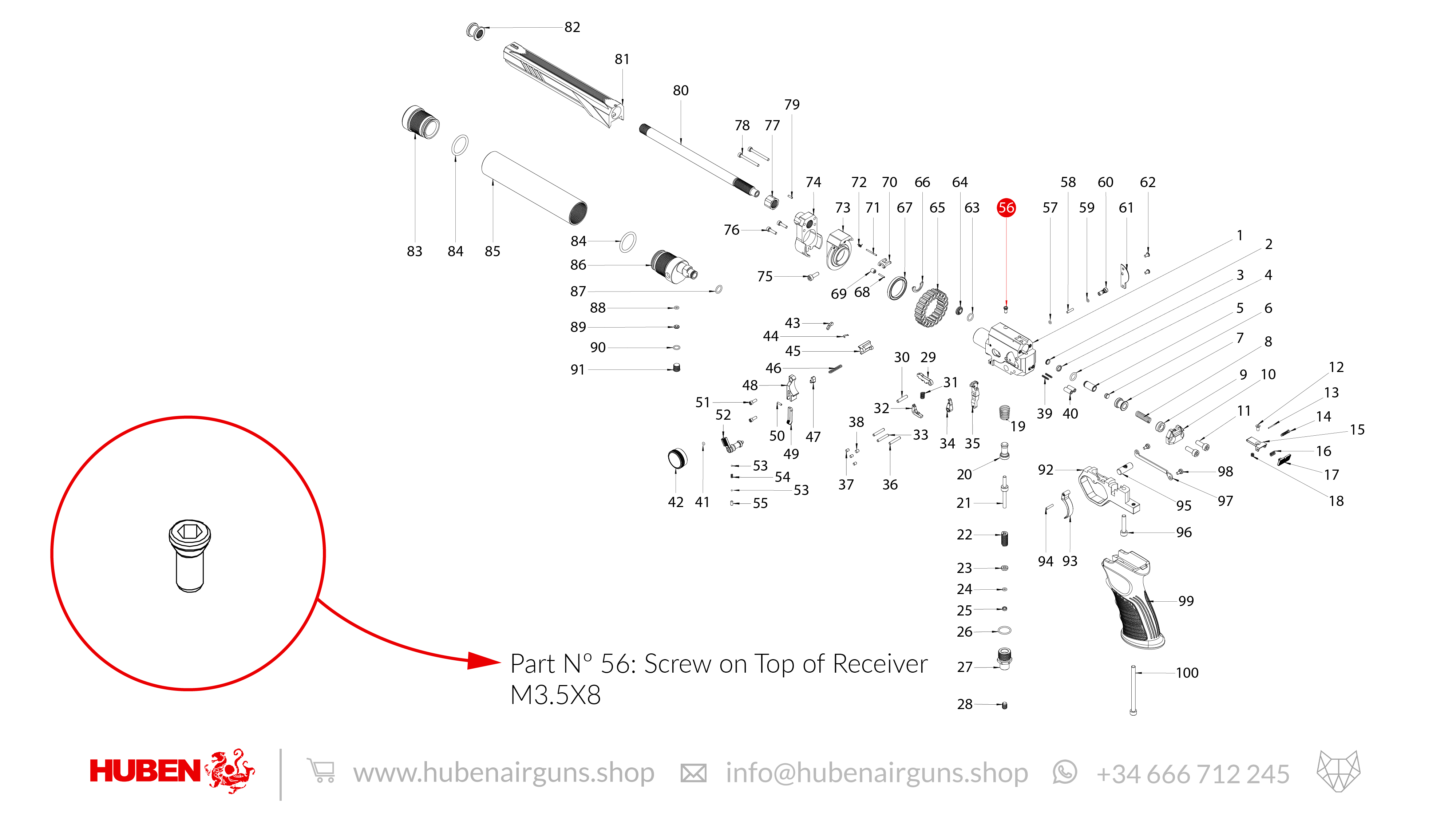

| 56 | Screw on Top of Receiver M3.5X8 |

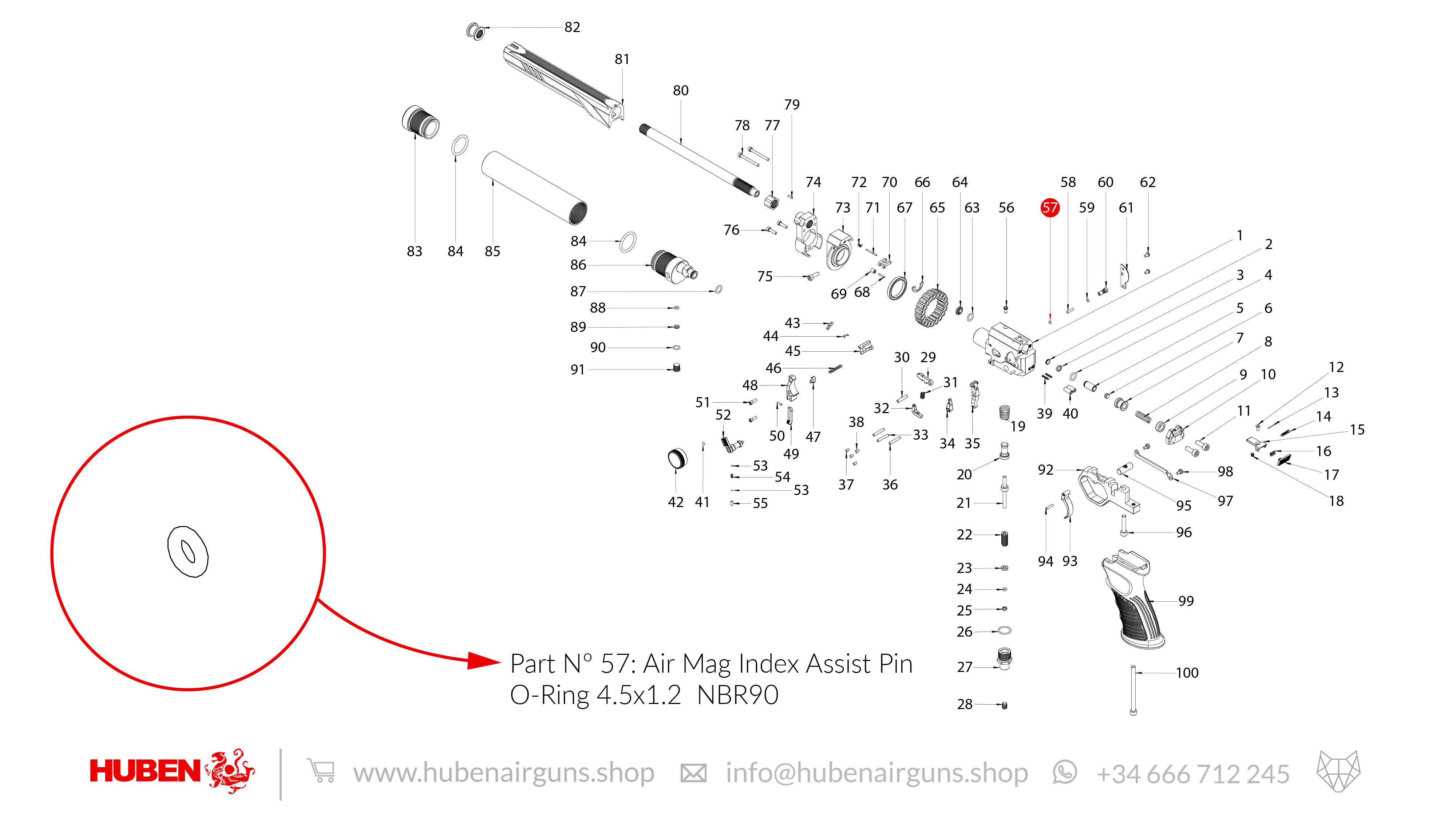

| 57 | Air Mag Index Assist Pin O-Ring 4.5x1.2 NBR90 |
| 58 | Air Mag Index Assist Pin Φ2.5X11 |
| 59 | Brass Insert Screw O-Ring 4.5x1 NBR80 |

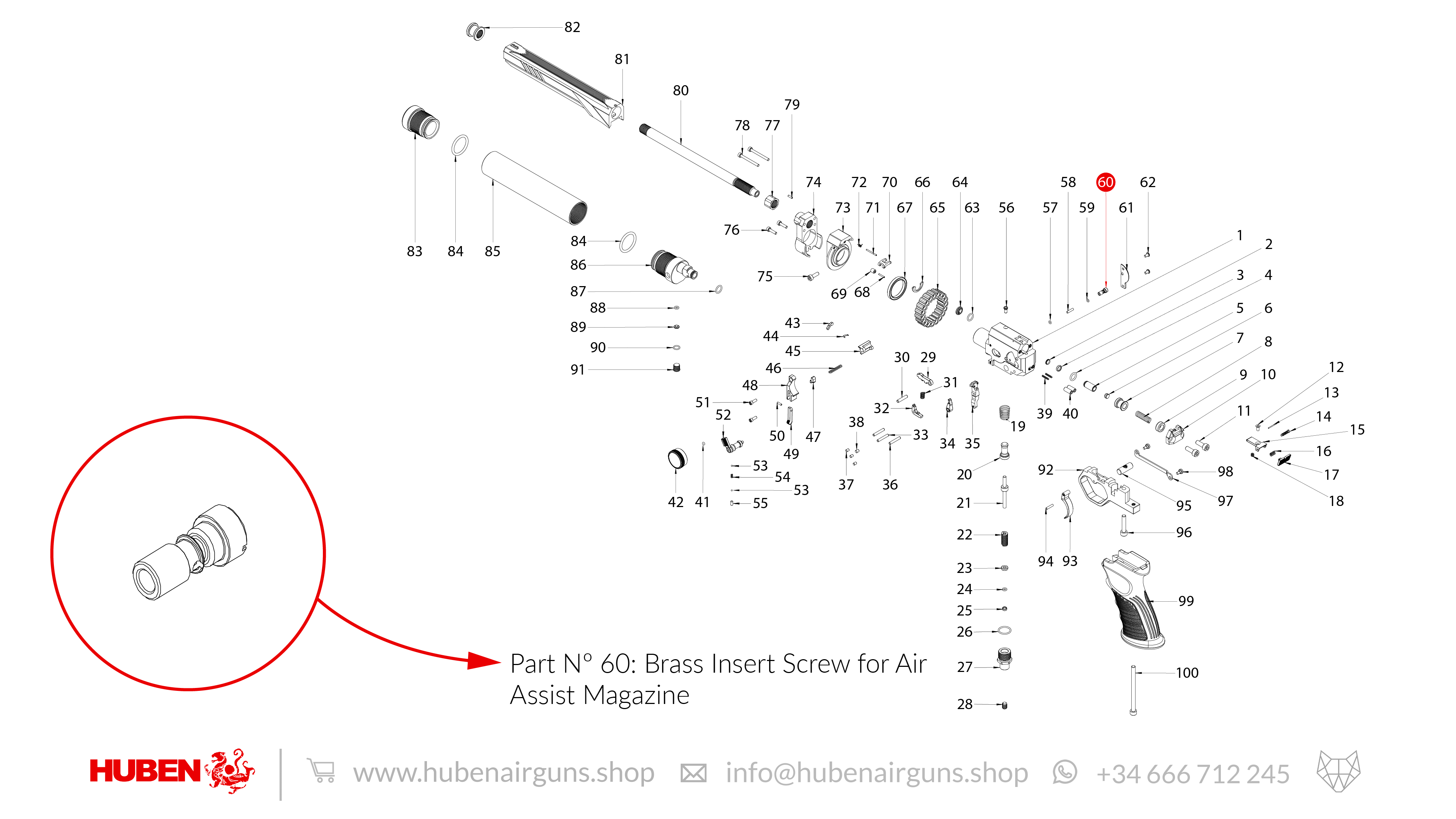

| 60 | Brass Insert Screw for Air Assist Magazine |

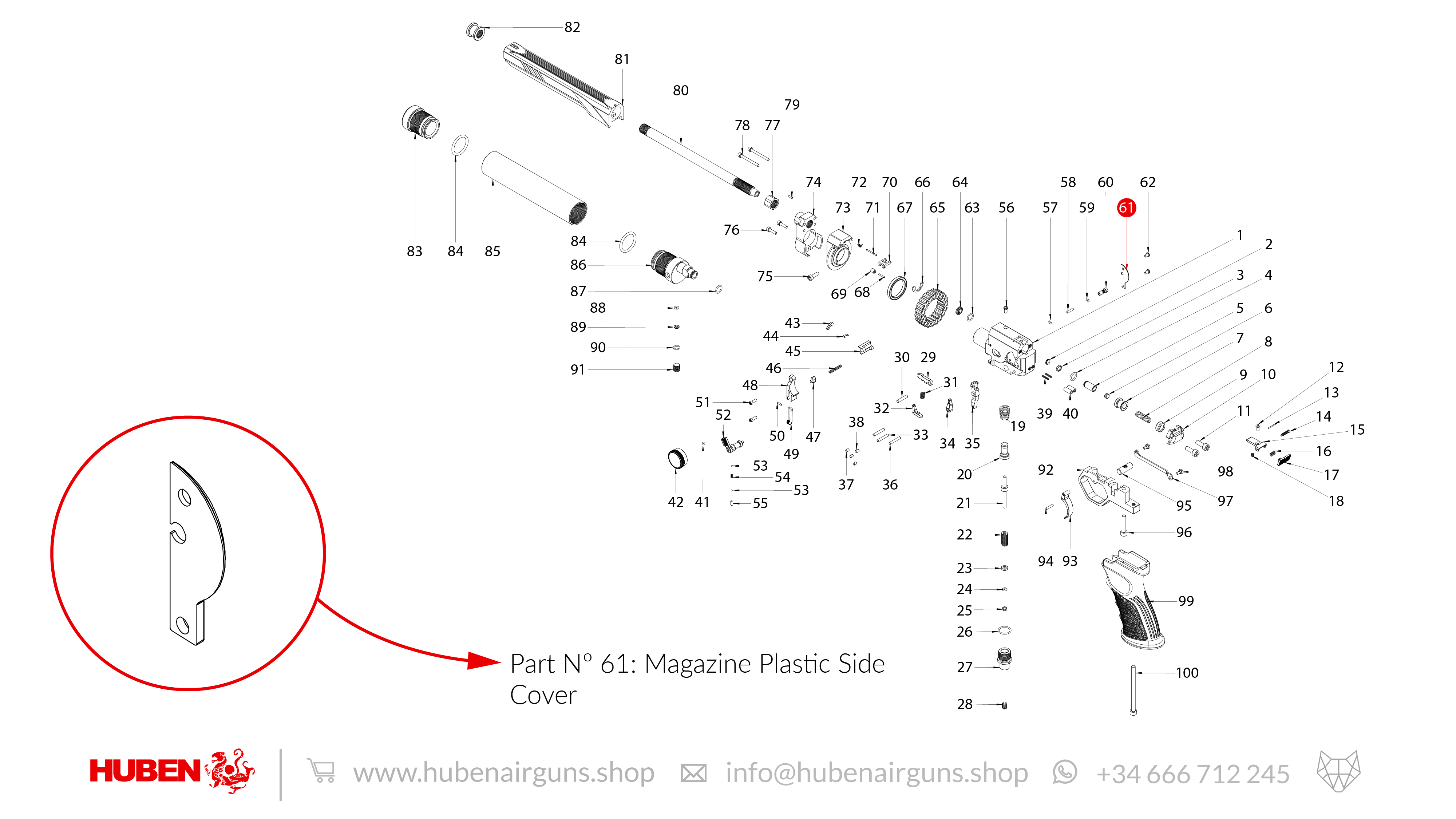

| 61 | Magazine Plastic Side Cover |

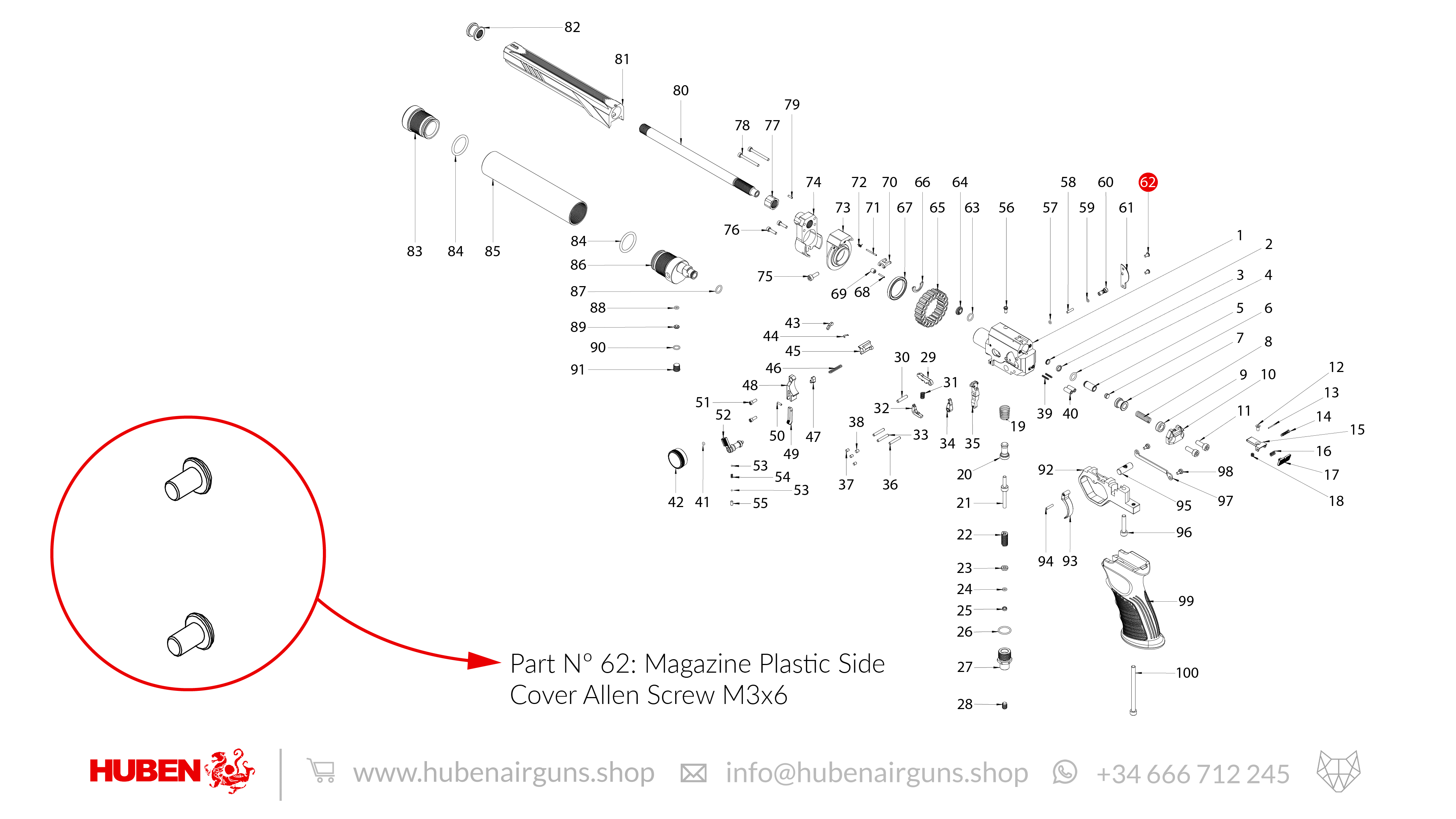

| 62 | Magazine Plastic Side Cover Allen Screw M3x6 (x2) |
| 63 | Breech Seal O-Ring 11.5x1.5 NBR90 |

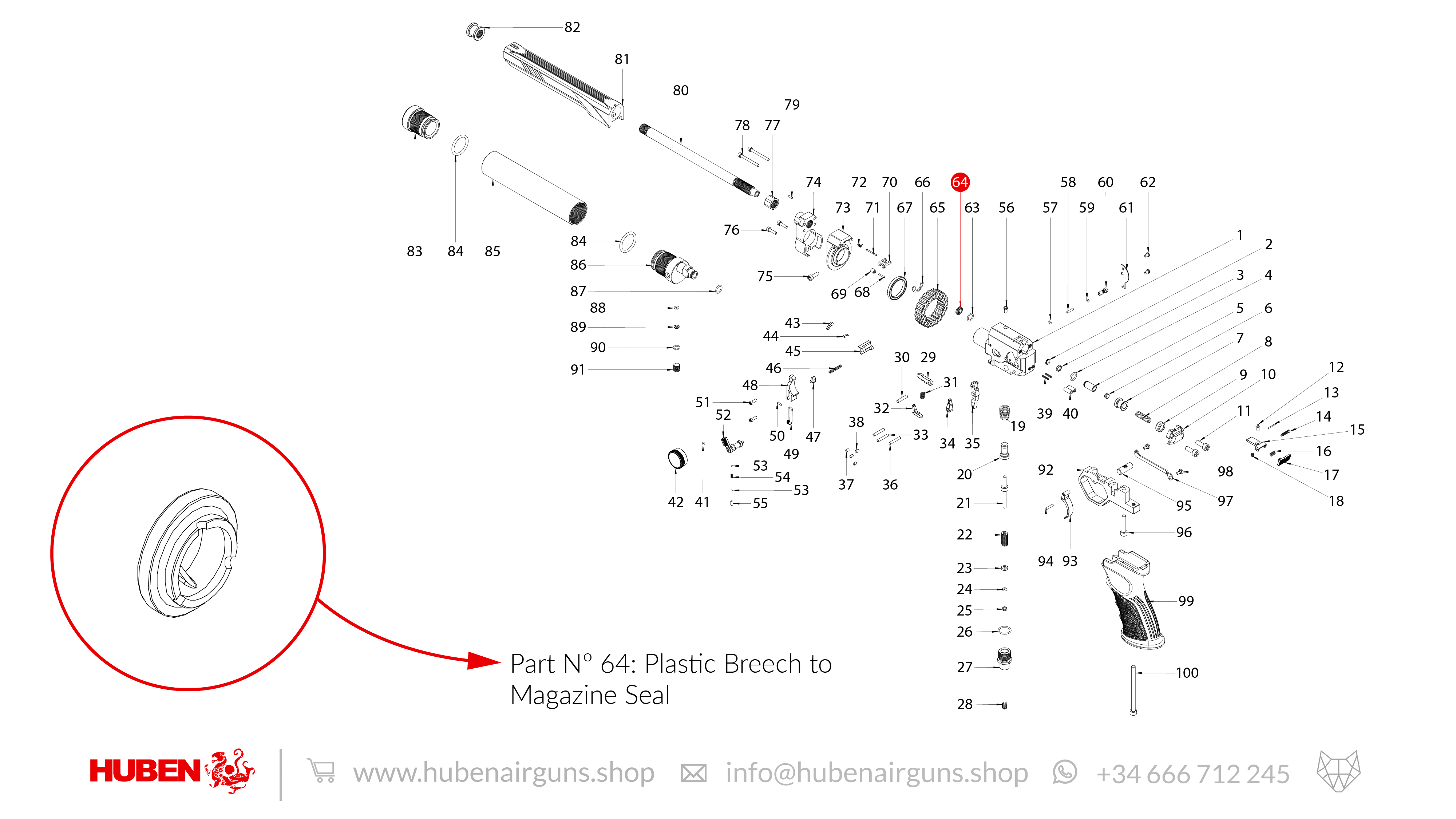

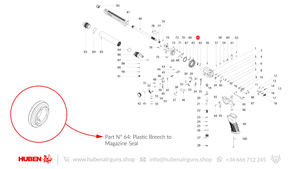

| 64 | Plastic Breech to Magazine Seal |

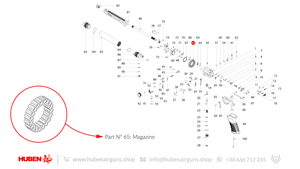

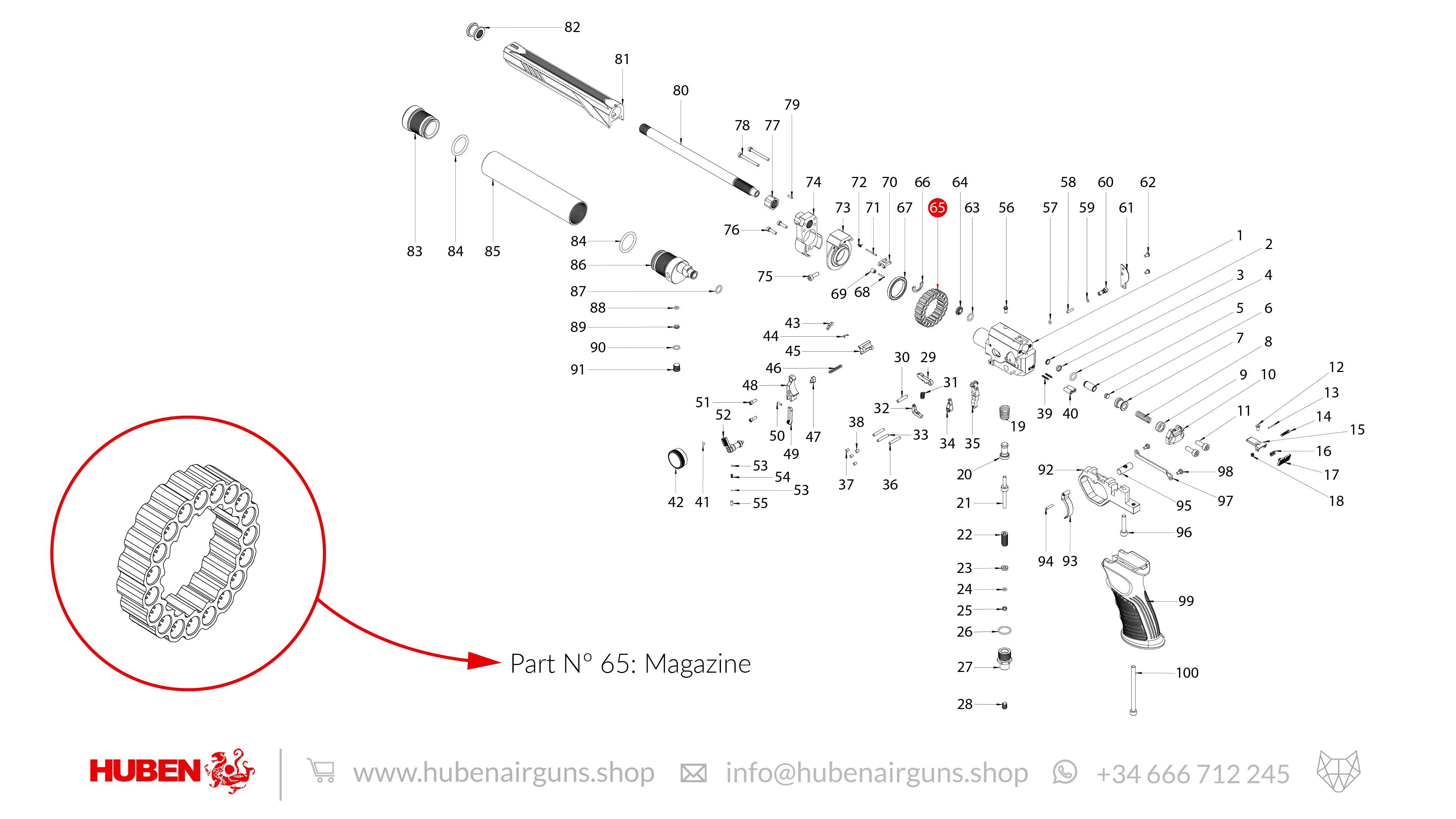

| 65 A | Magazine .177 19 shots |
| 65 B | Magazine .22 19 shots |
| 65 C | Magazine .25 17 shots |

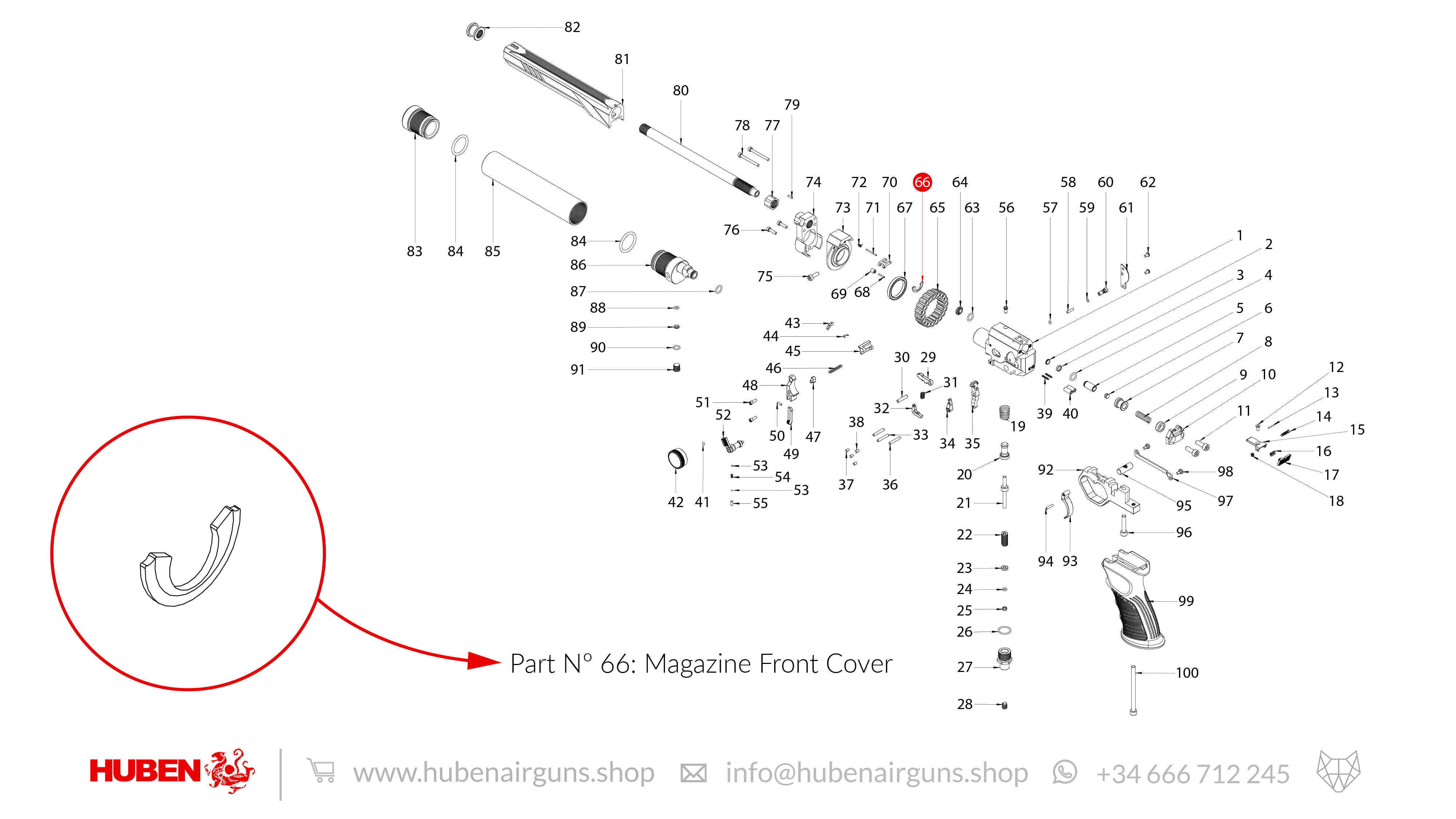

| 66 | Magazine Front Cover |

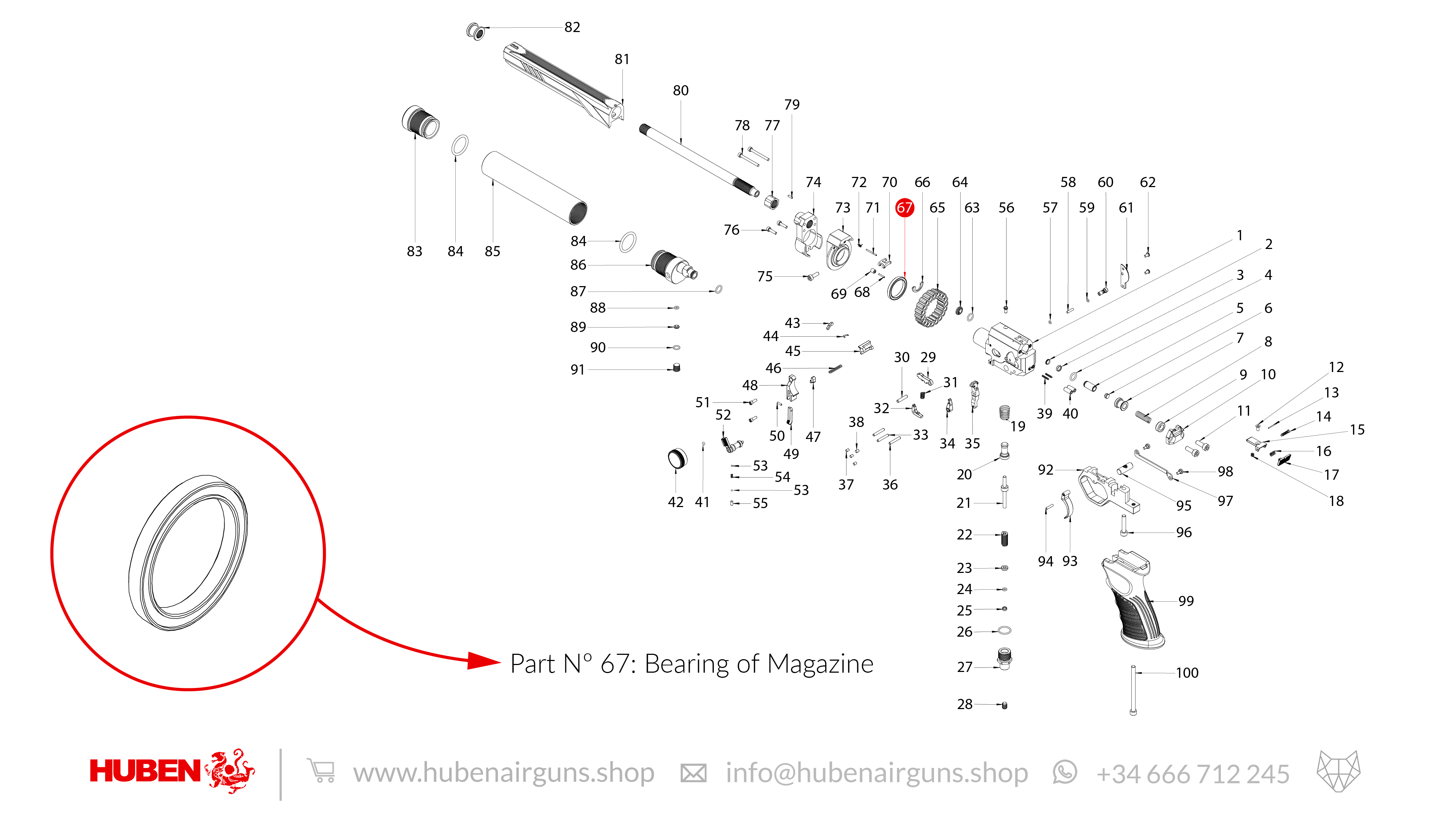

| 67 | Bearing of Magazine |

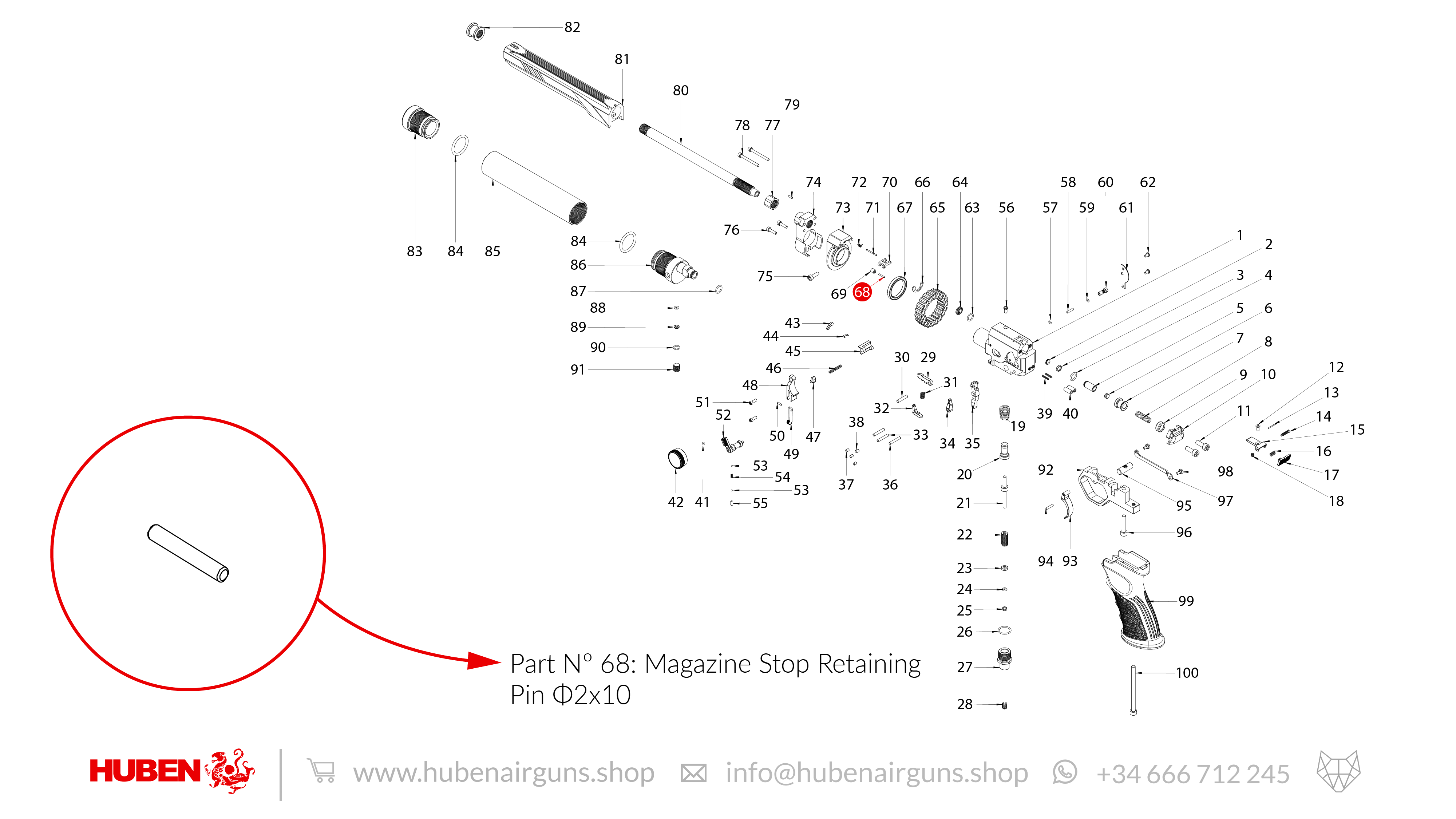

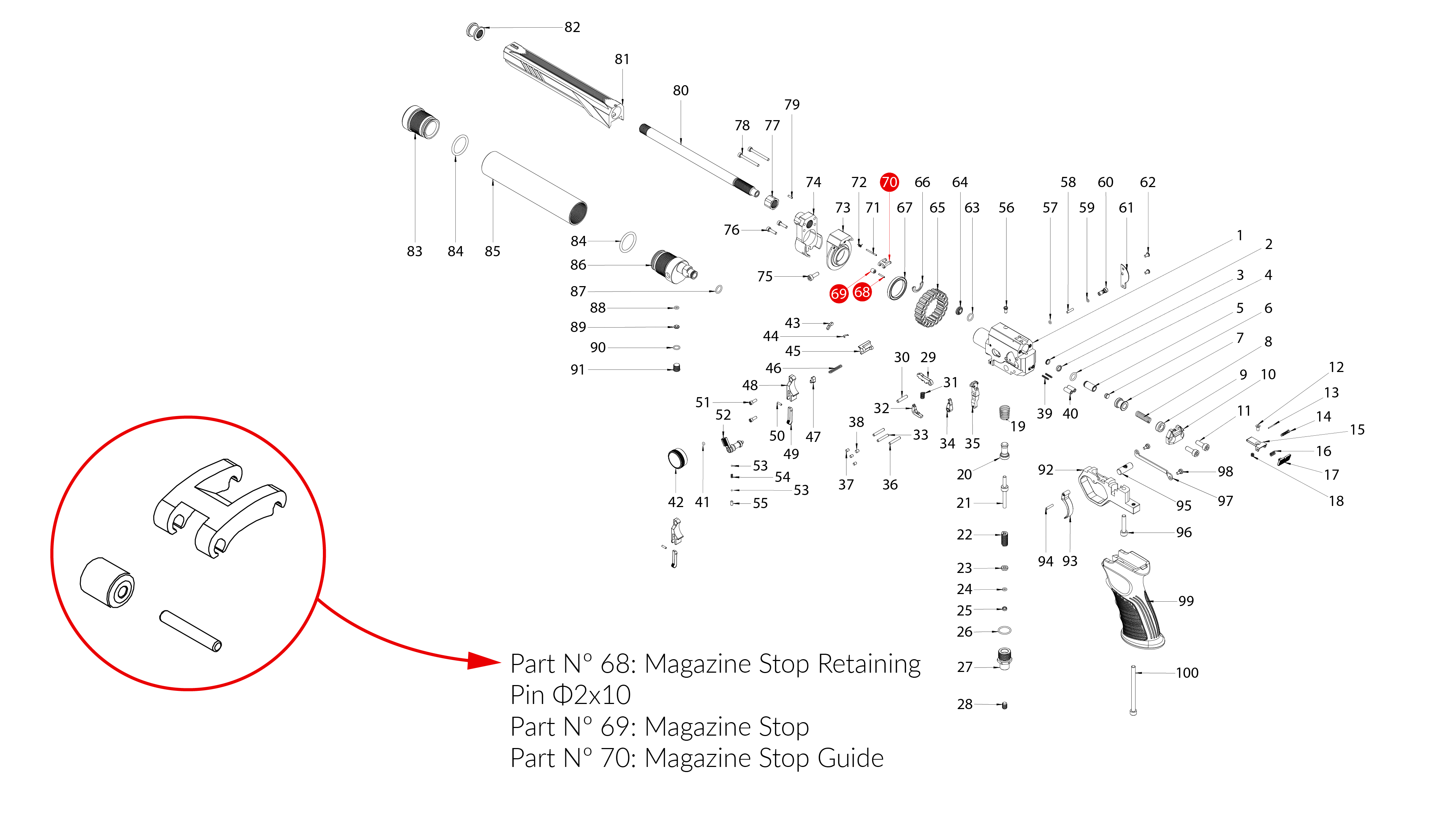

| 68 | Magazine Stop Retaining Pin Φ2x10 |

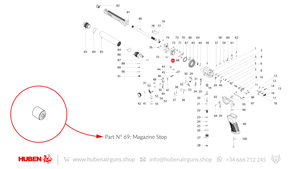

| 69 | Magazine Stop |

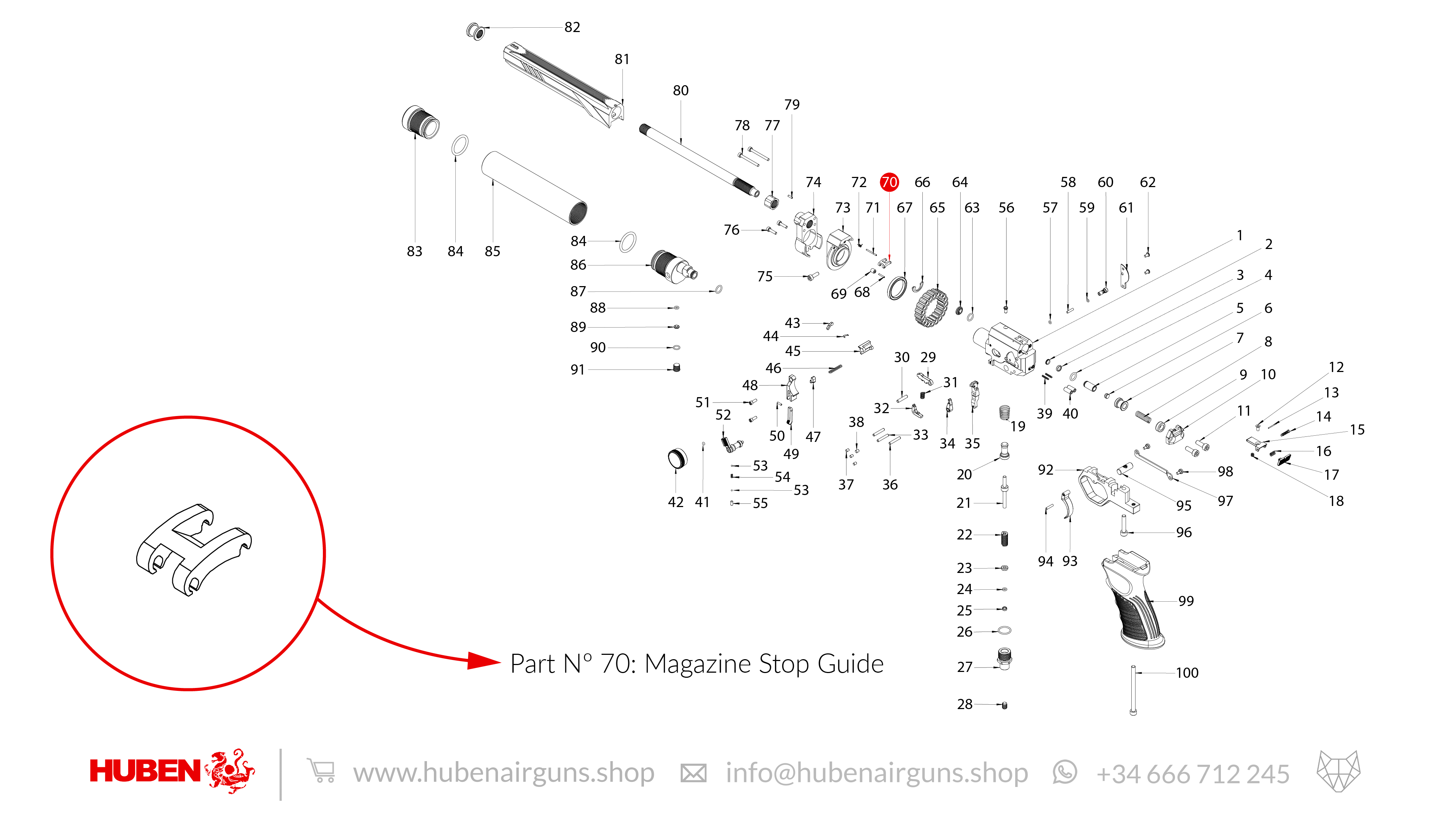

| 70 | Magazine Stop Guide |

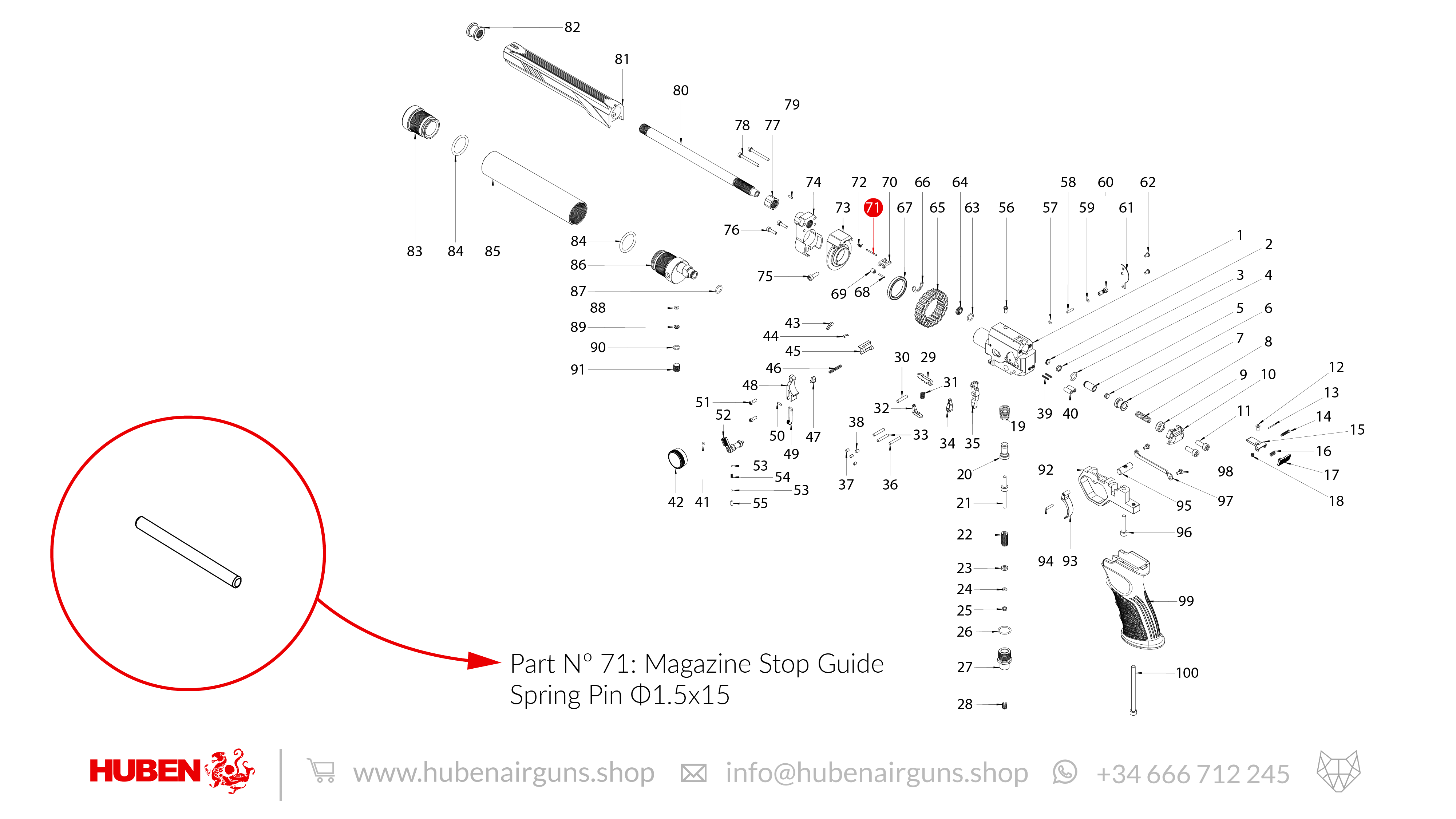

| 71 | Magazine Stop Guide Spring Pin Φ1.5x15 |
| 72 | Magazine Stop Guide Spring |

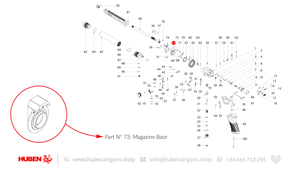

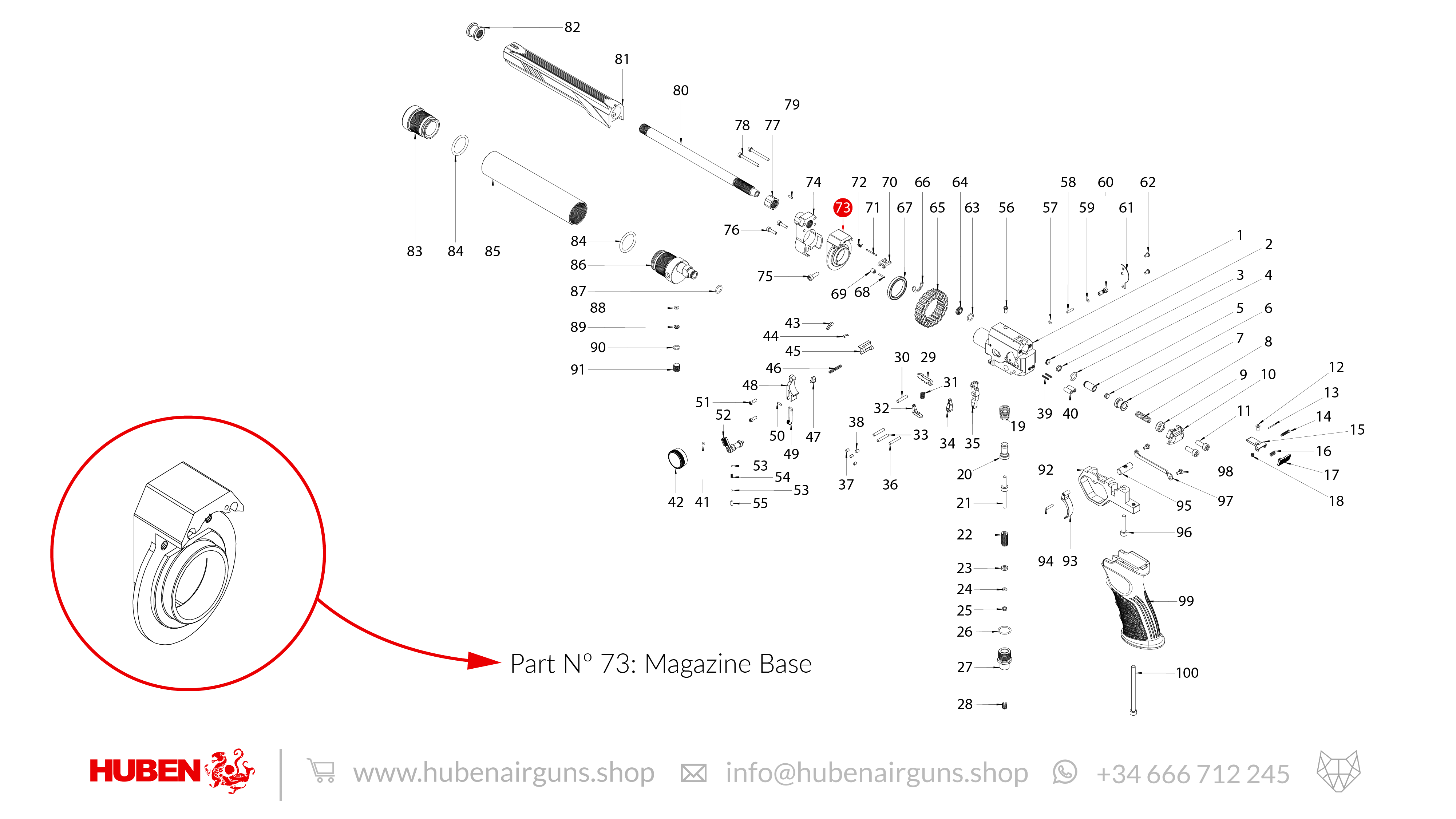

| 73 | Magazine Base |

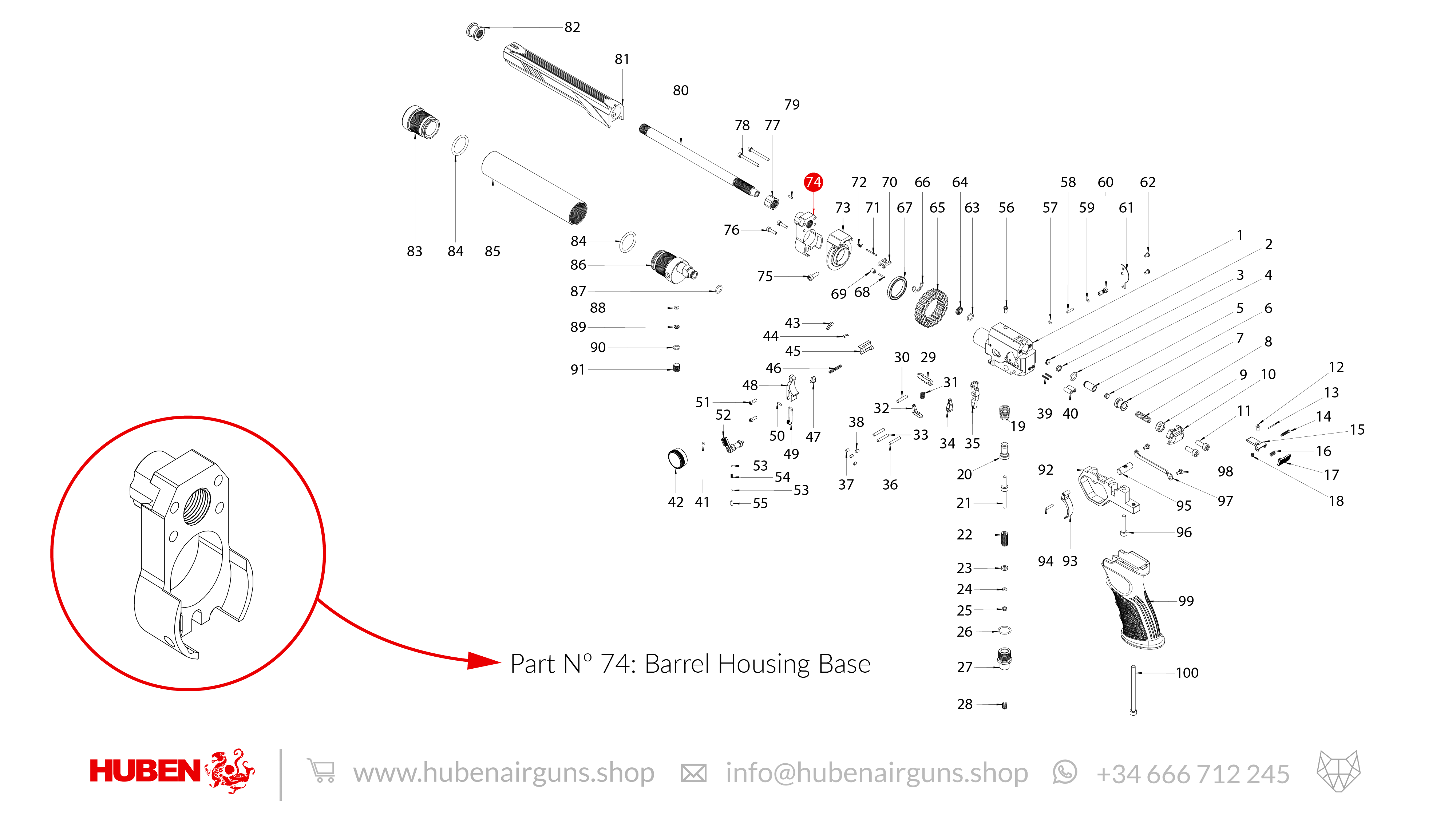

| 74 | Barrel Housing Base |
| 75 | Magazine & Barrel Housing Bases to Receiver Fasten Screw M4 x 12 |

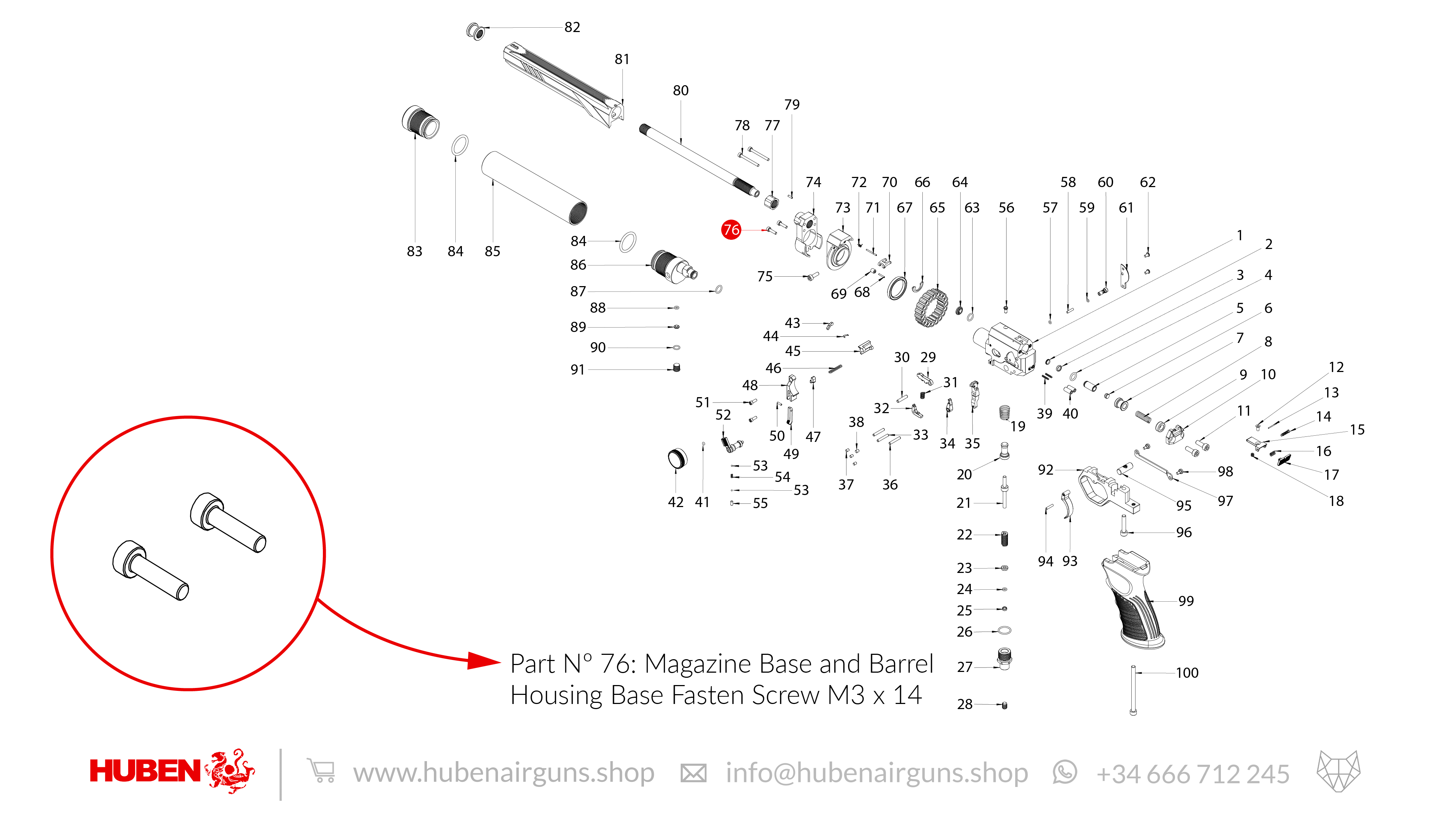

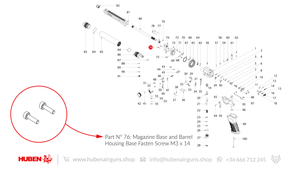

| 76 | Magazine Base and Barrel Housing Base Fasten Screw M3 x 14 (x2) |

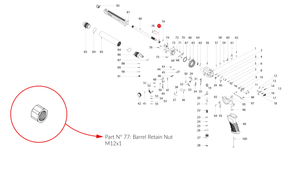

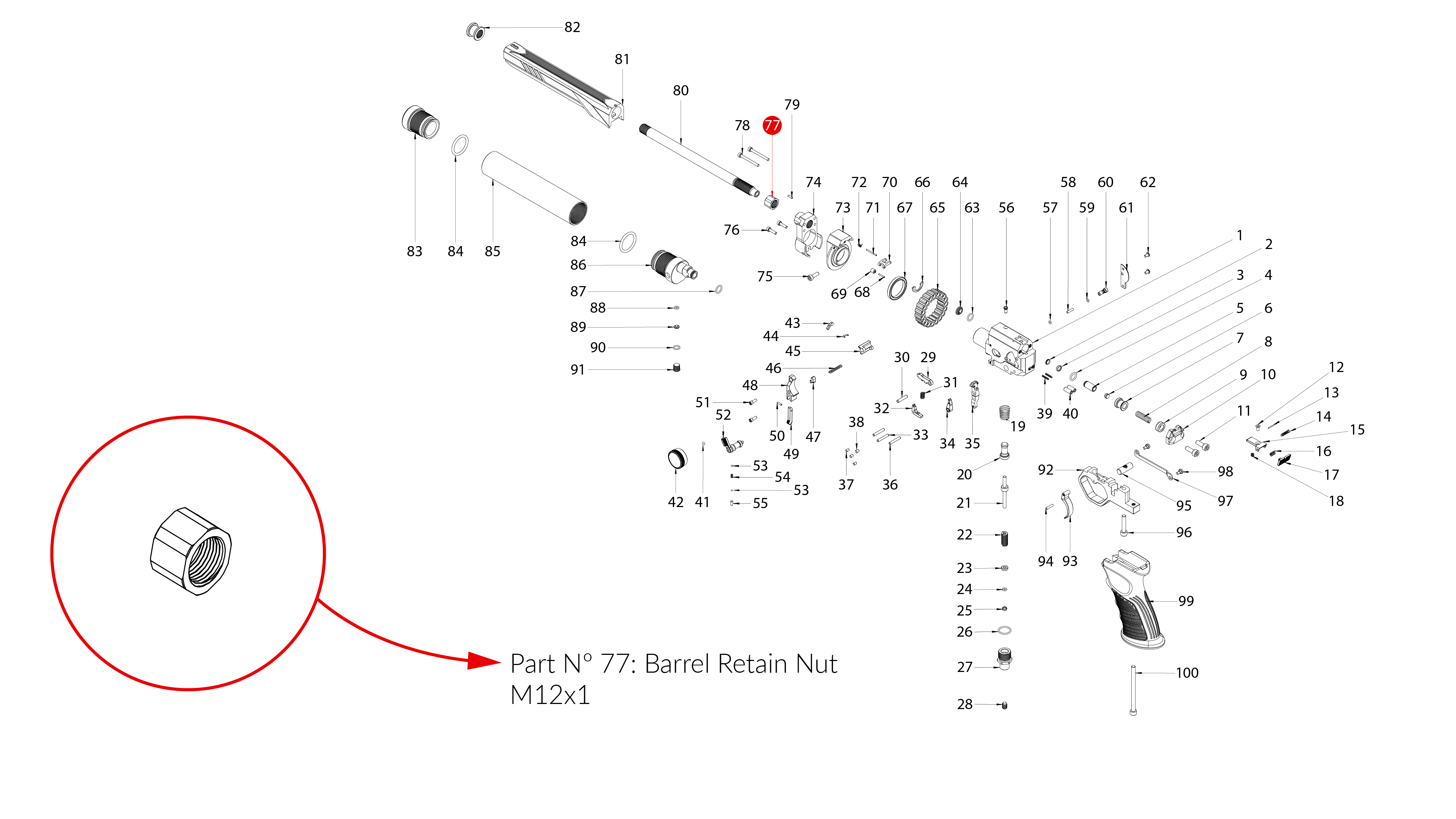

| 77 | Barrel Retain NutM12x1 |

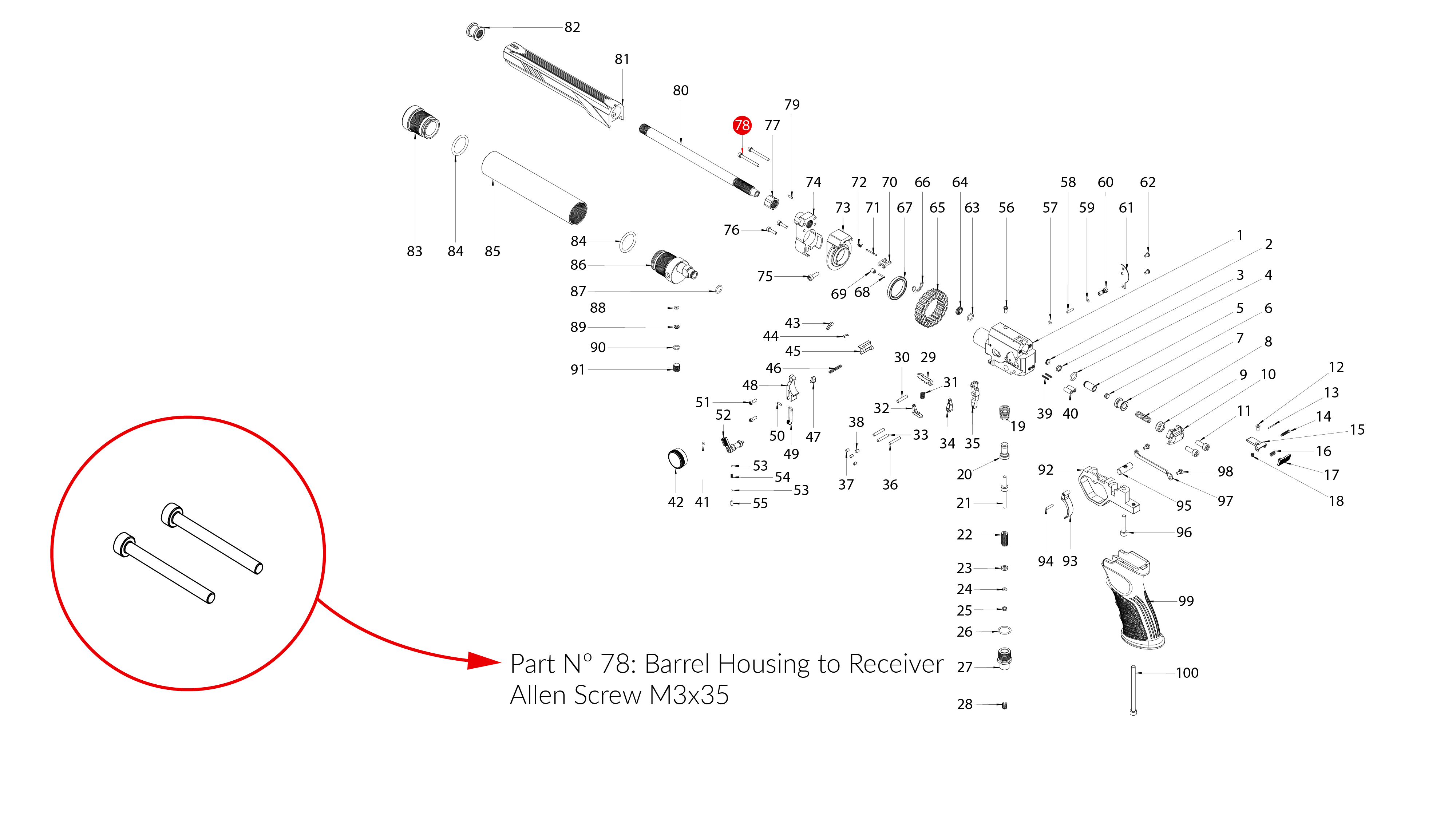

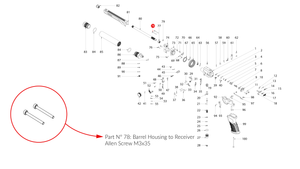

| 78 | Barrel Housing to Receiver Allen Screw M3x35 (x2) |

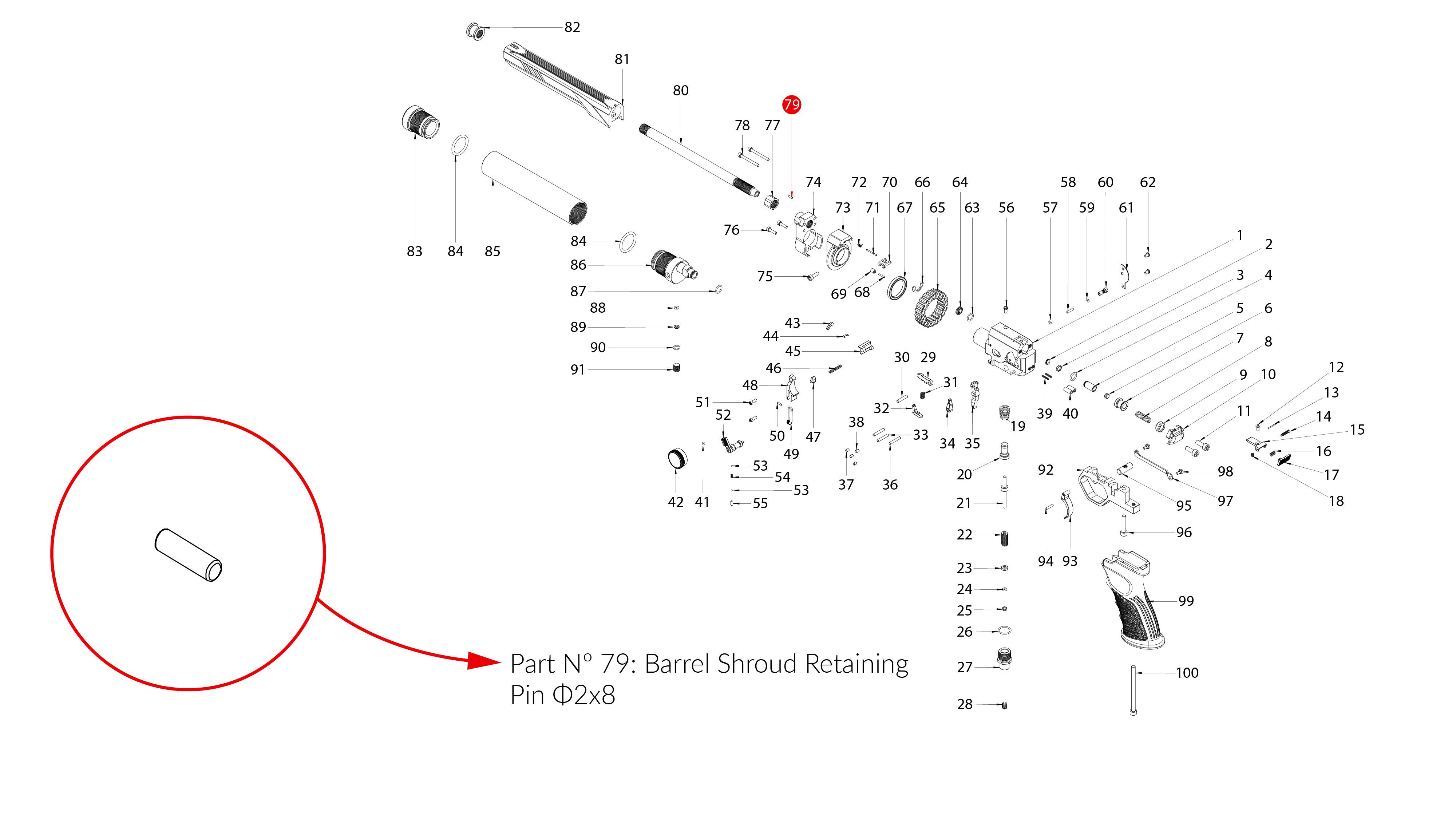

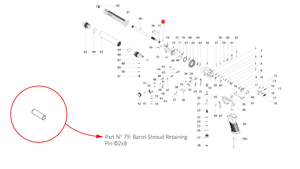

| 79 | Barrel Shroud Retaining Pin Φ2x8 |

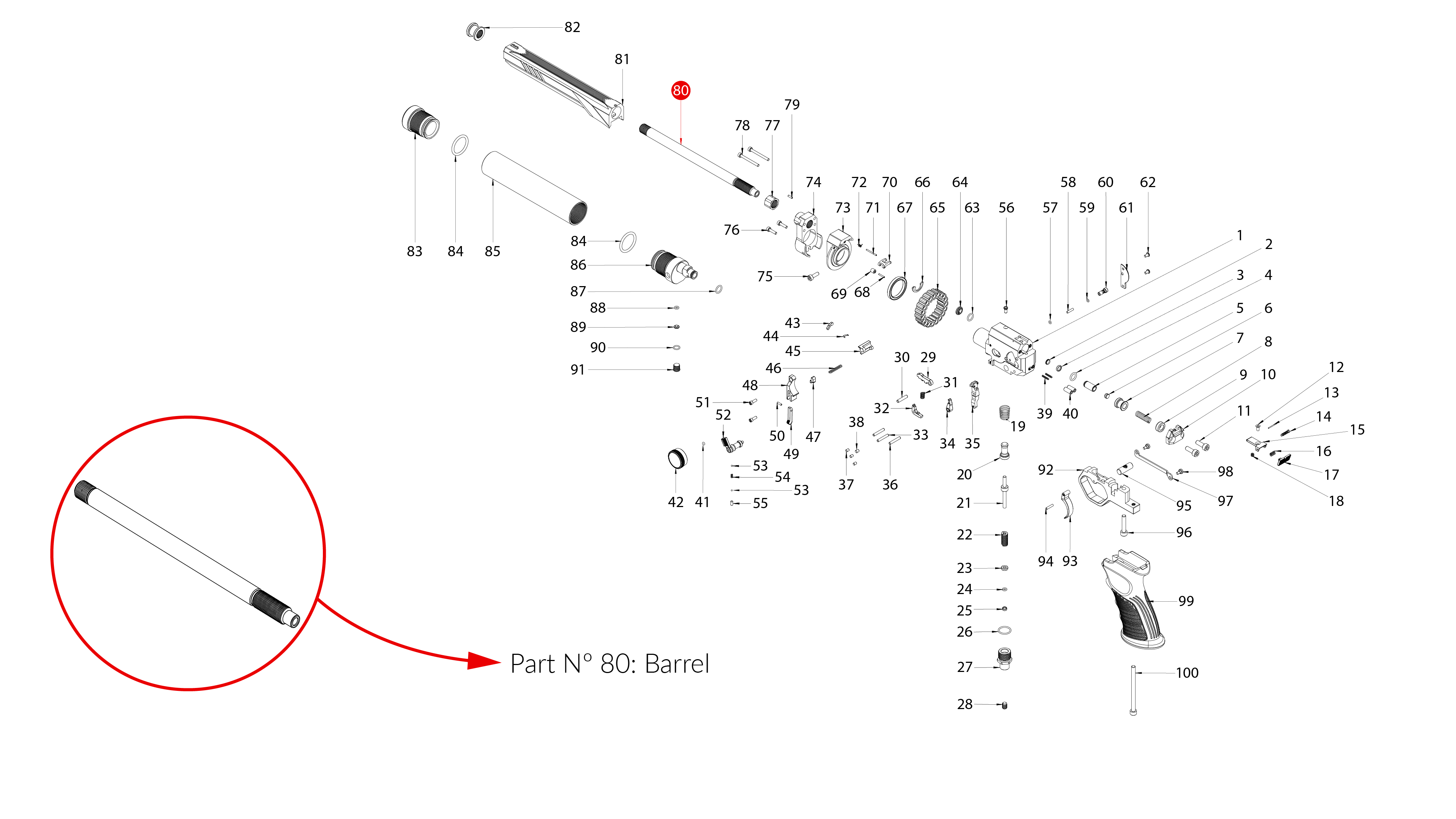

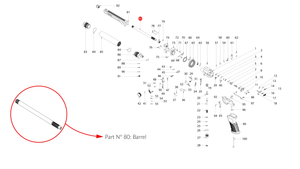

| 80A | Barrel .22 (5.5mm) |
| 80B | Barrel .25 (6.5mm) |

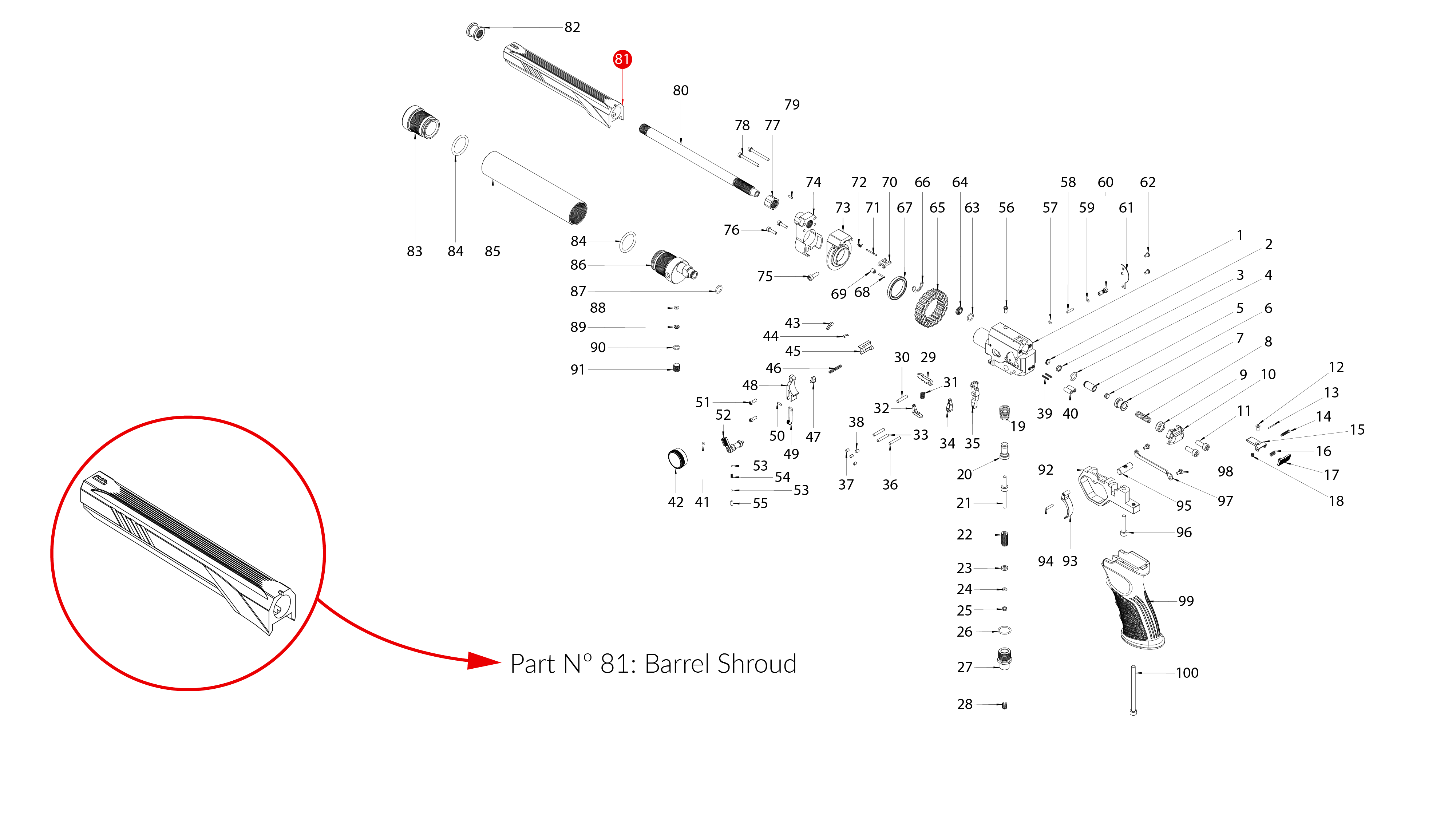

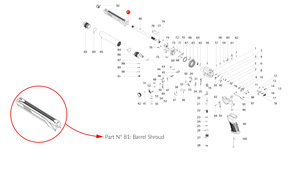

| 81 | Barrel Shroud |

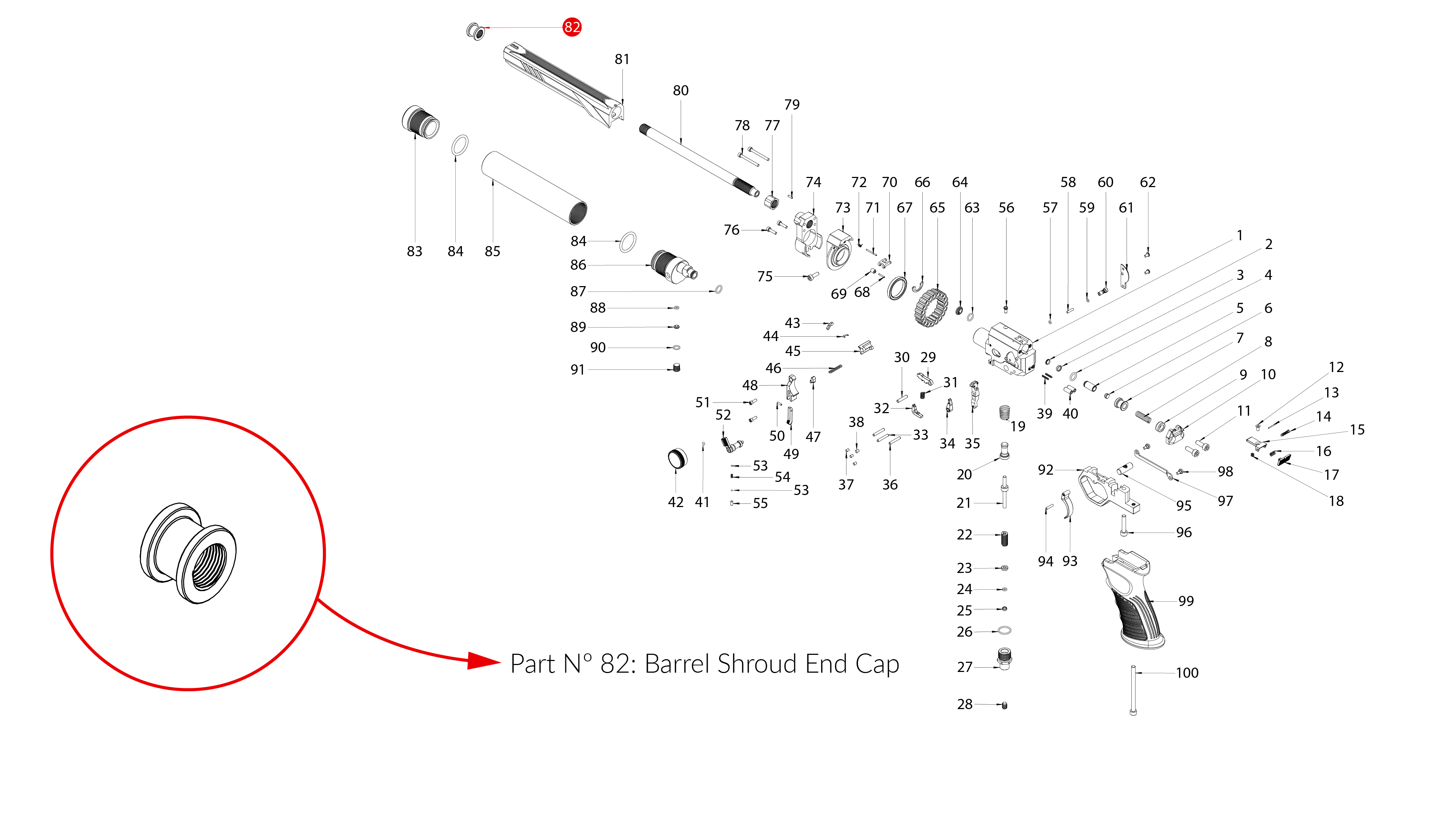

| 82 | Barrel Shroud End Cap |

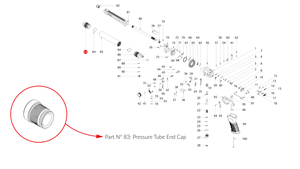

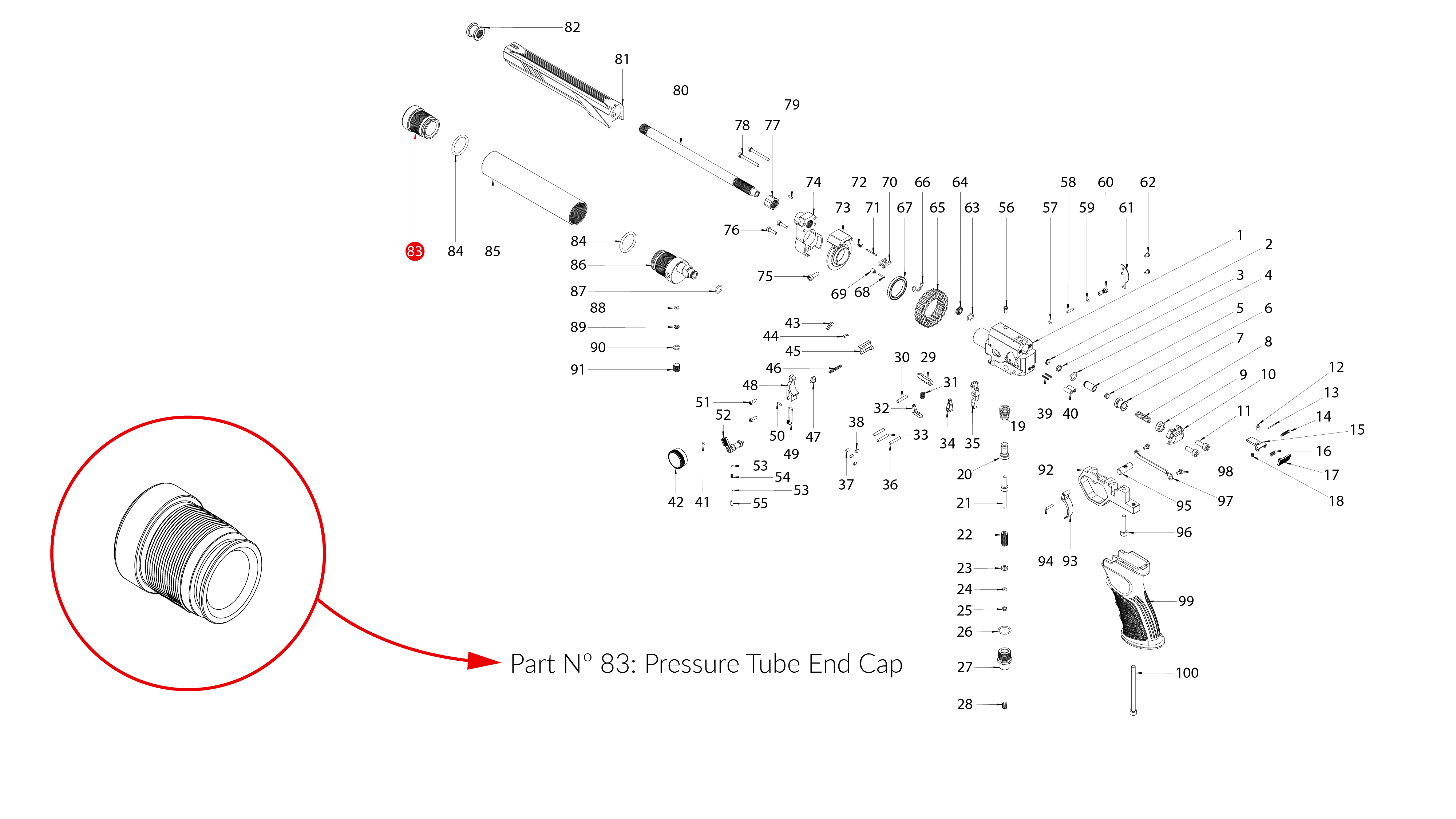

| 83 | Pressure Tube End Cap |

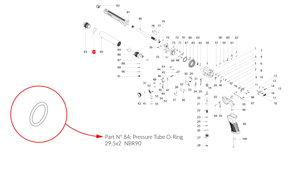

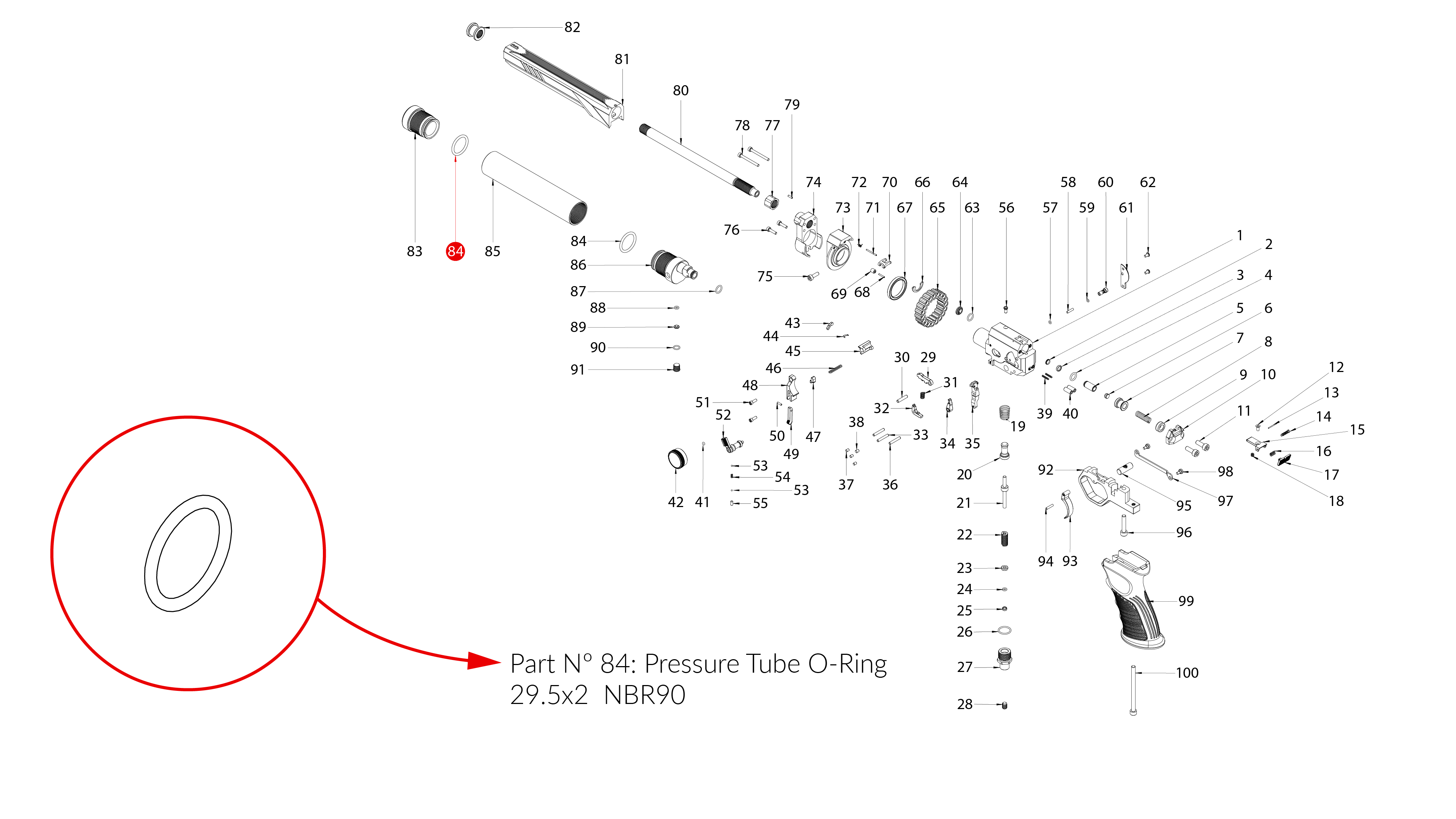

| 84 | Pressure Tube O-Ring 29.5x2 NBR90 (x2) |

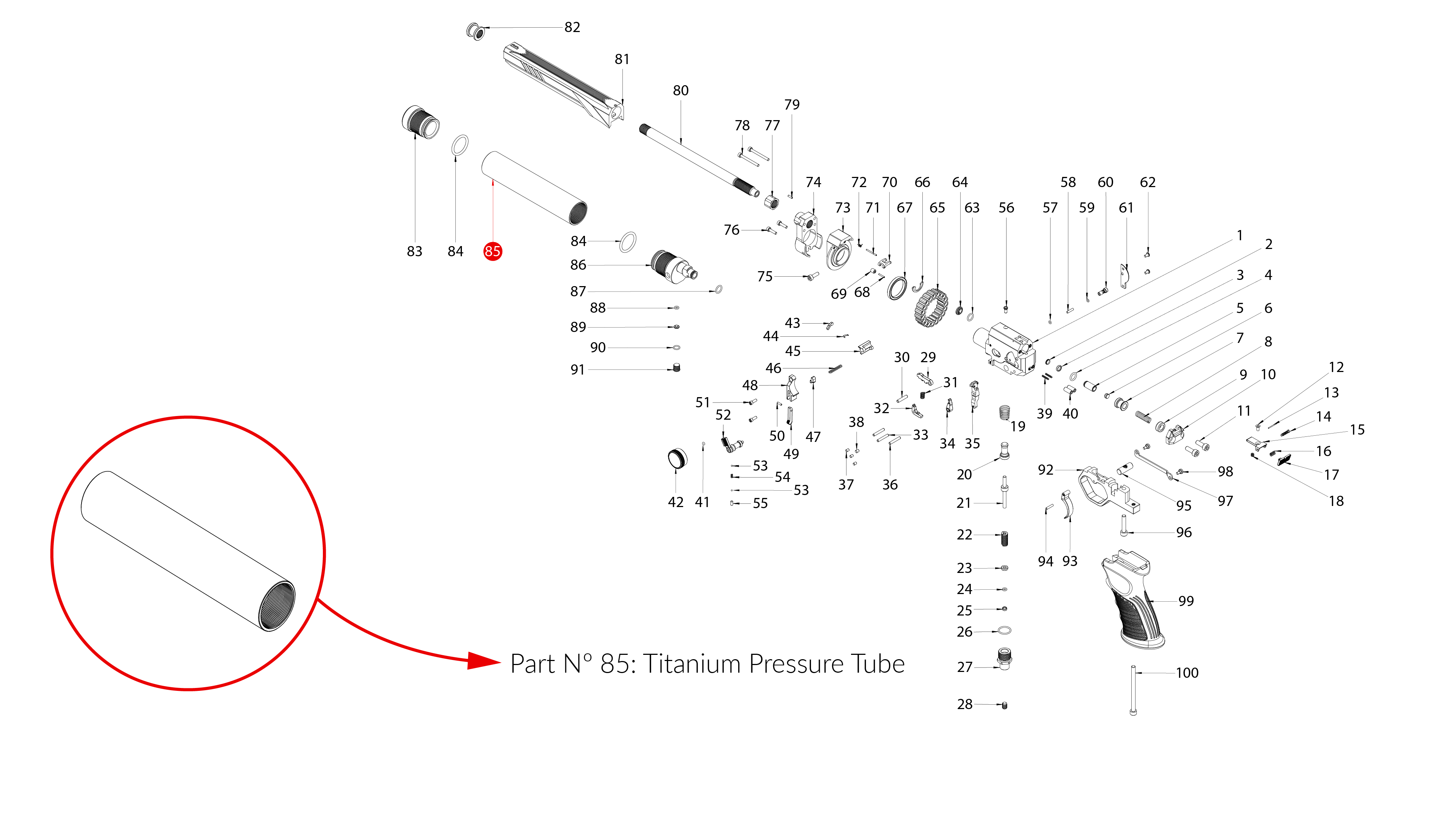

| 85 | Titanium Pressure Tube |

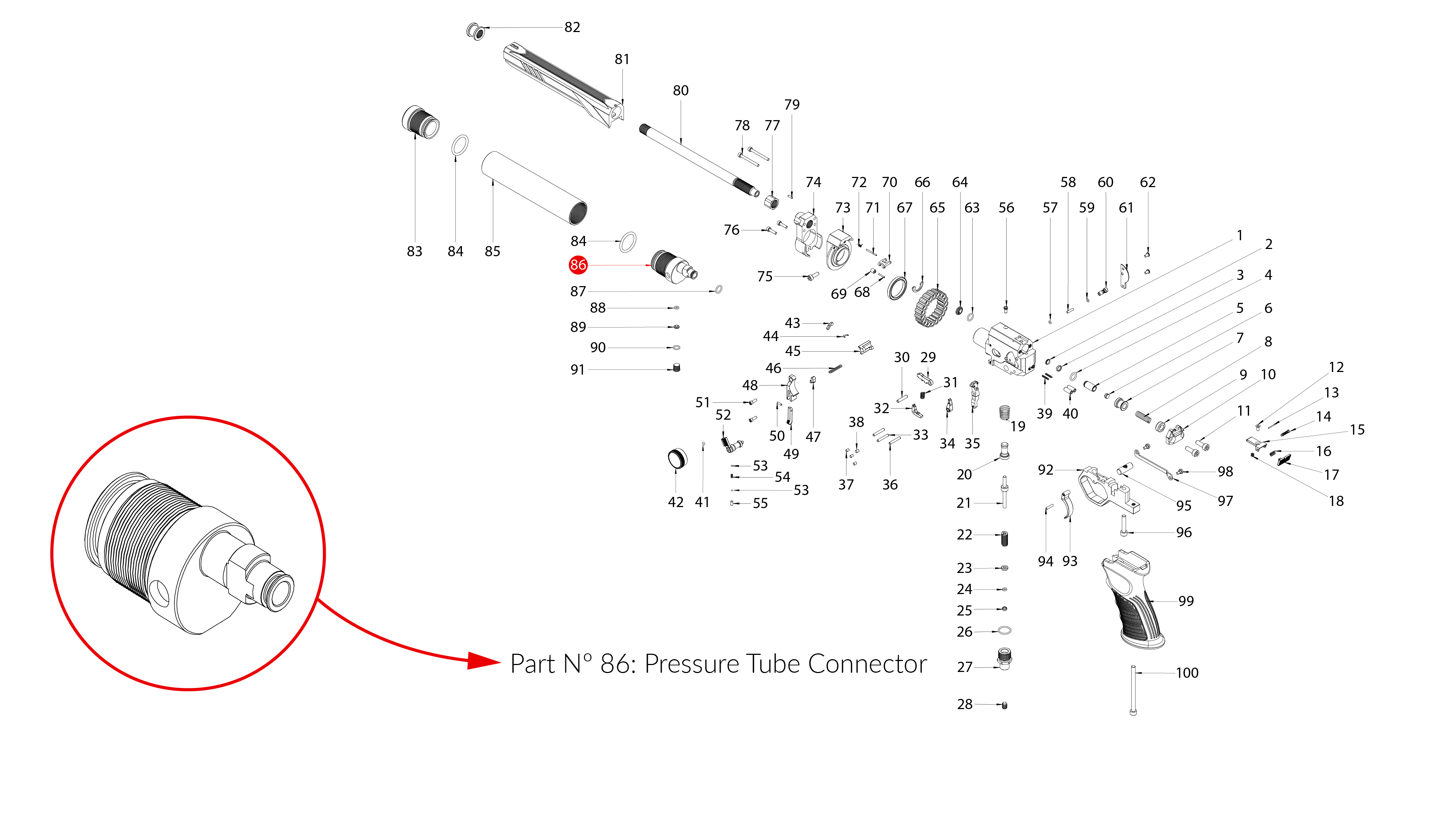

| 86 | Pressure Tube Connector |

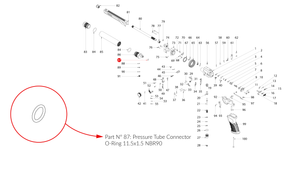

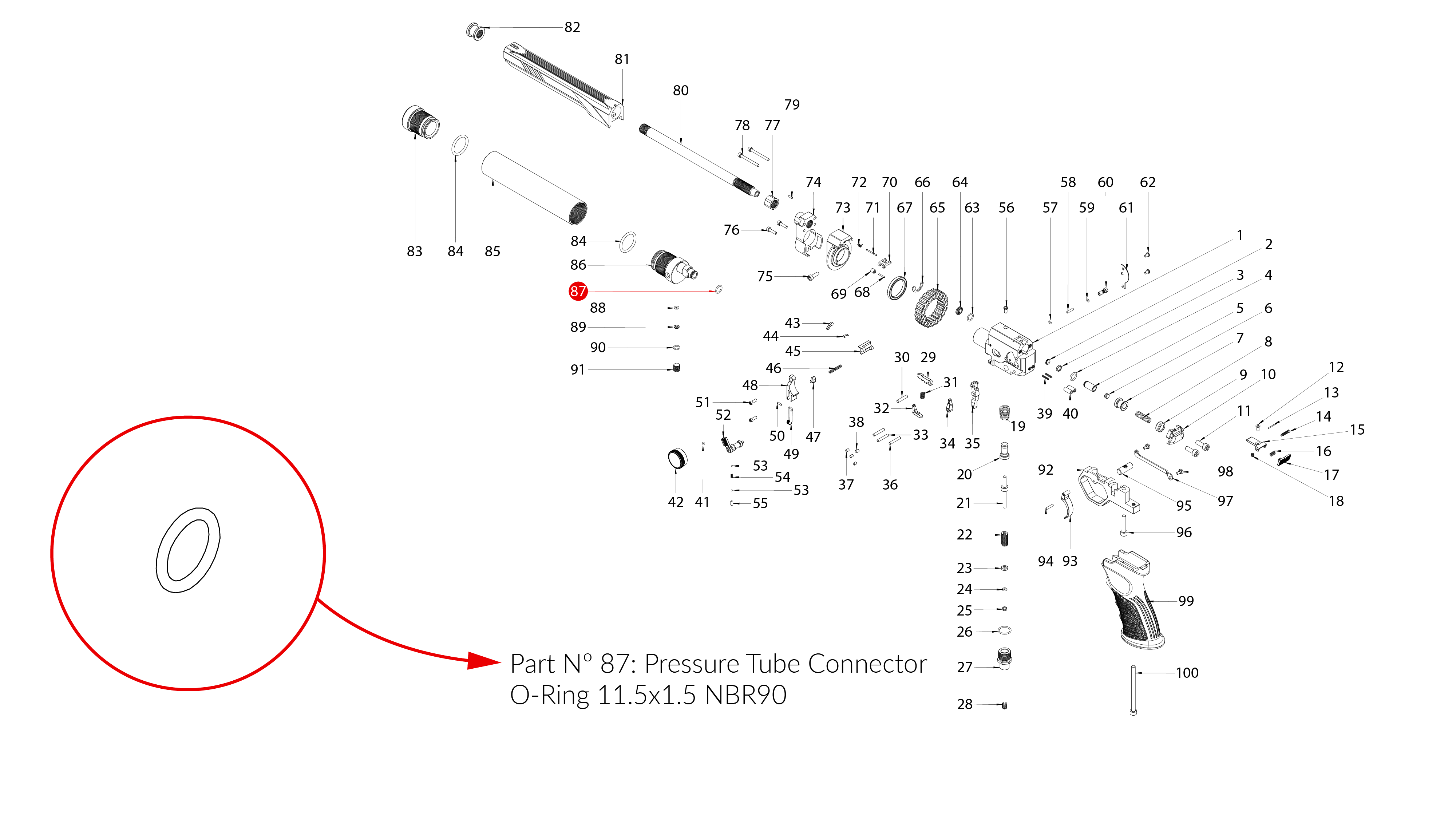

| 87 | Pressure Tube Connector O-Ring 11.5x1.5 NBR90 |

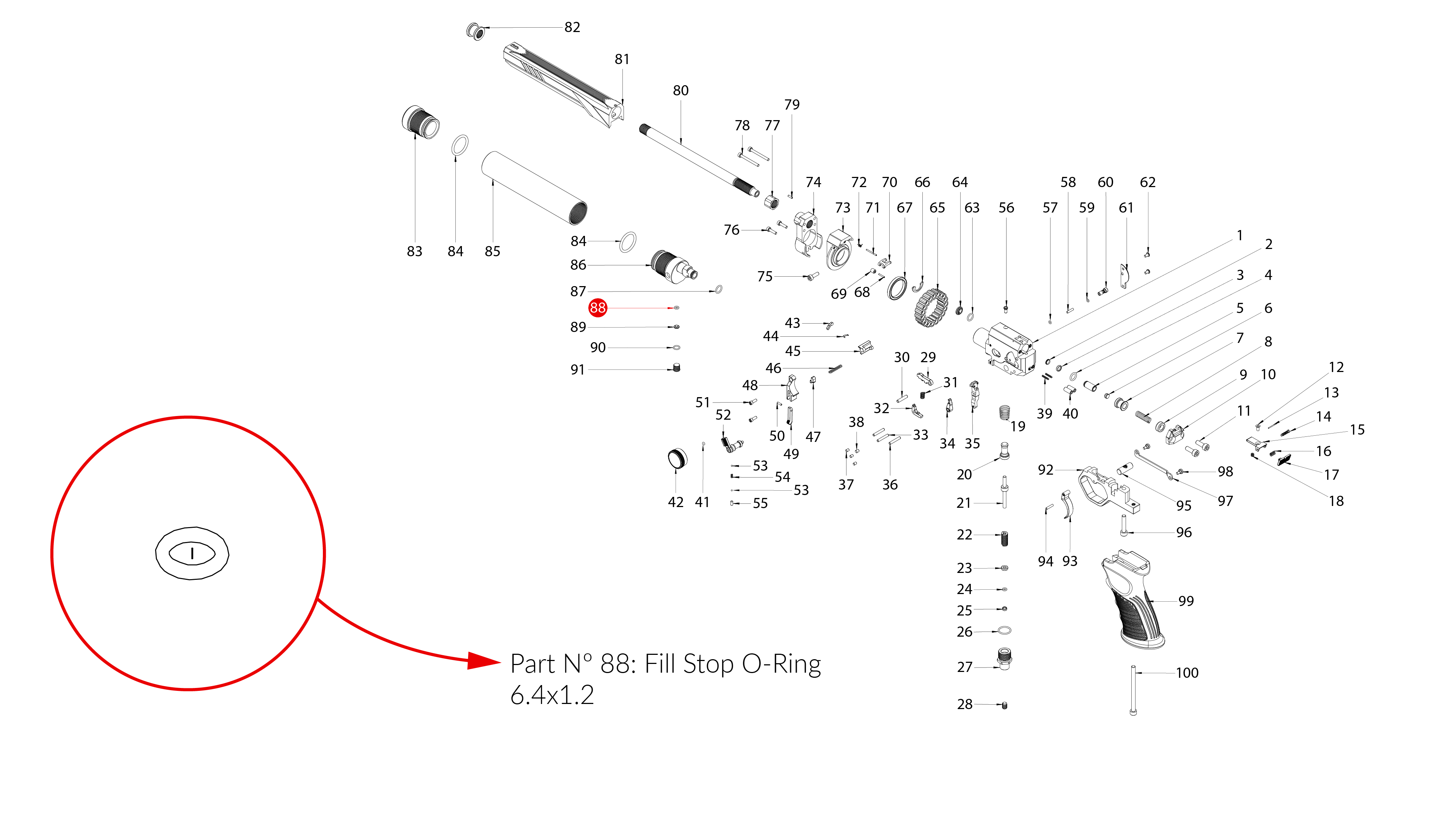

| 88 | Fill Stop O-Ring 6.4x1.2 |

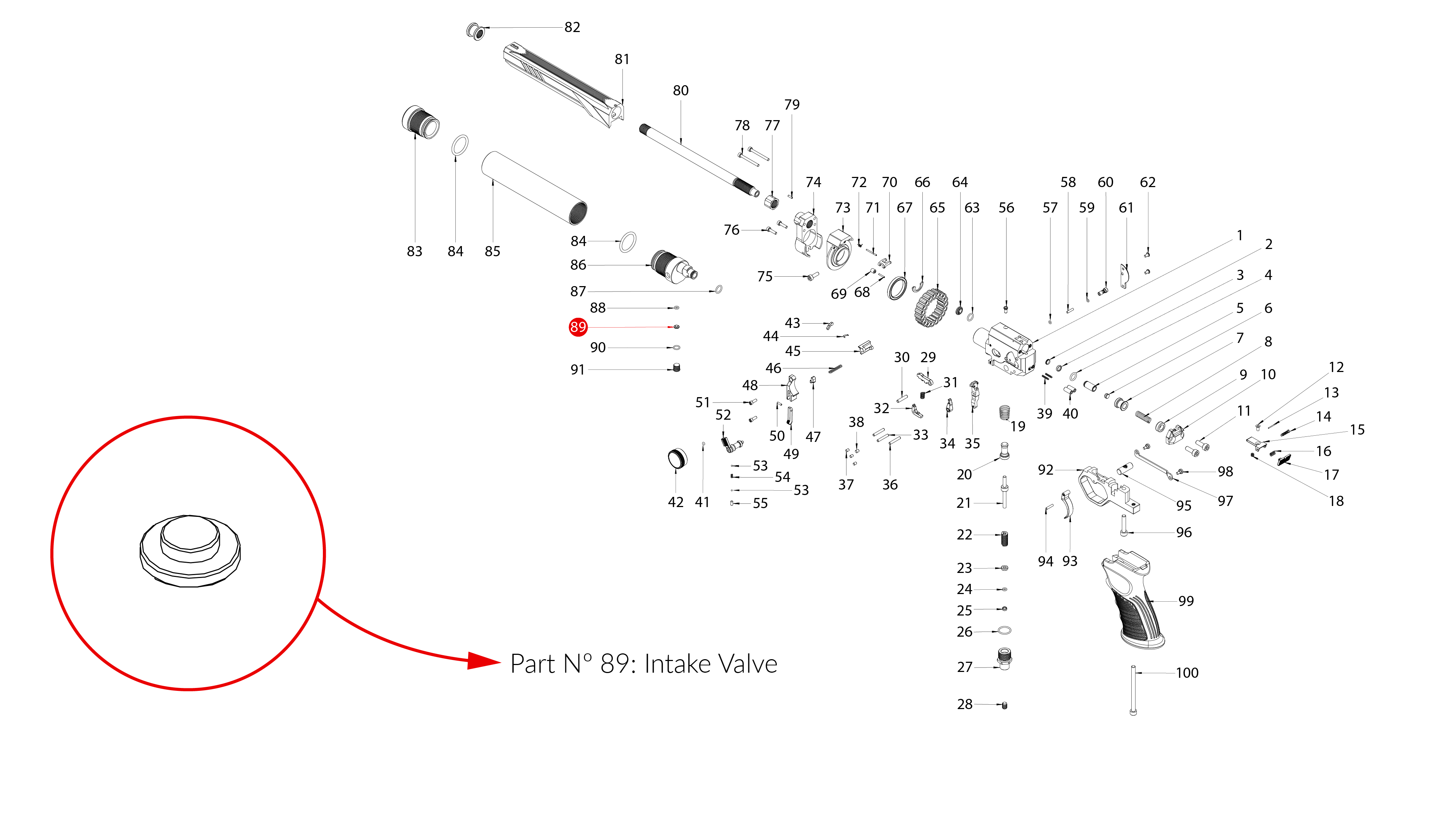

| 89 | Intake Valve |

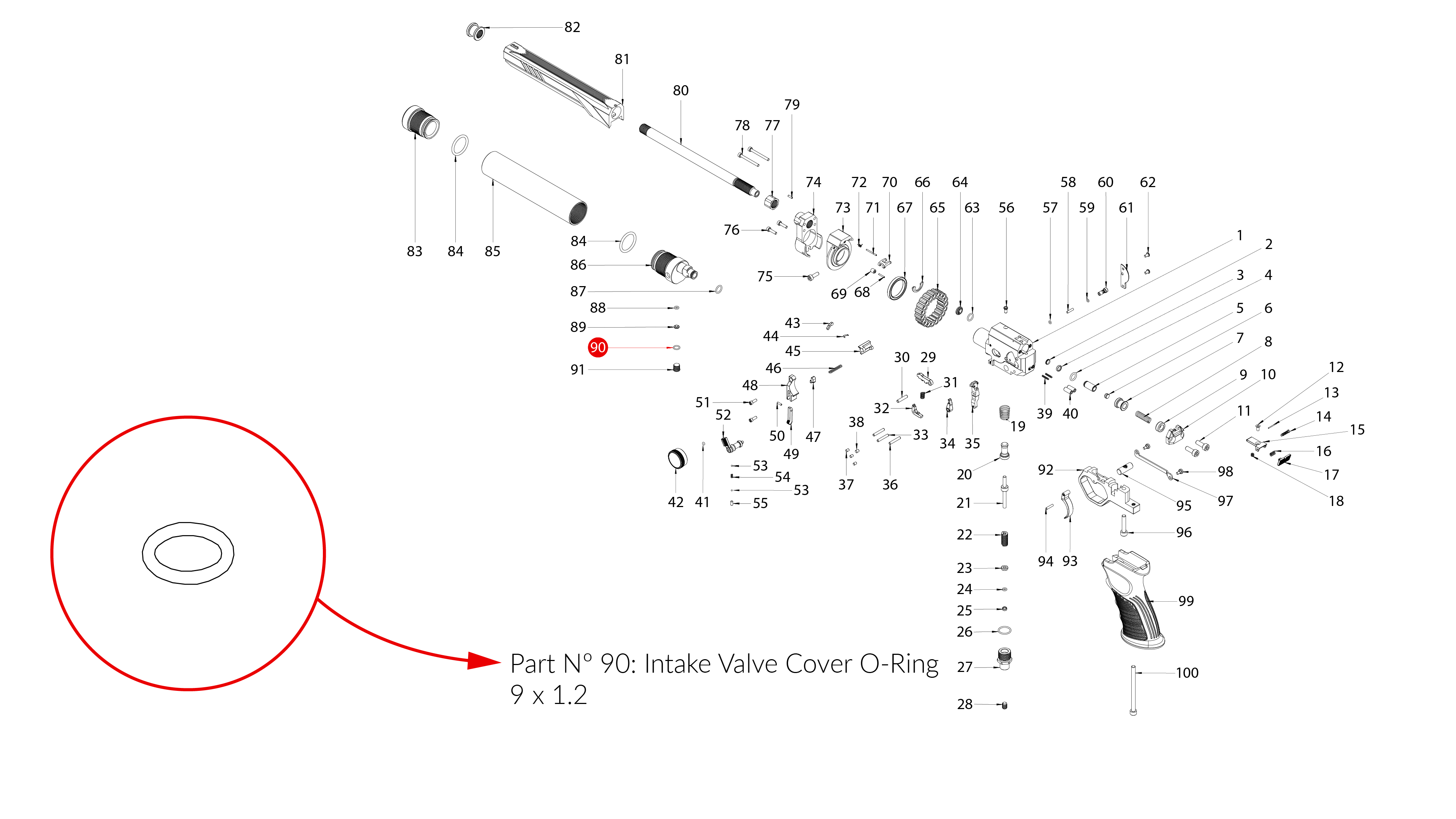

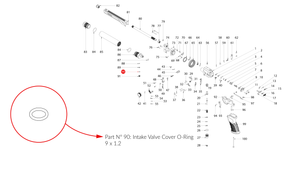

| 90 | Intake Valve Cover O-Ring 9 x 1.2 |

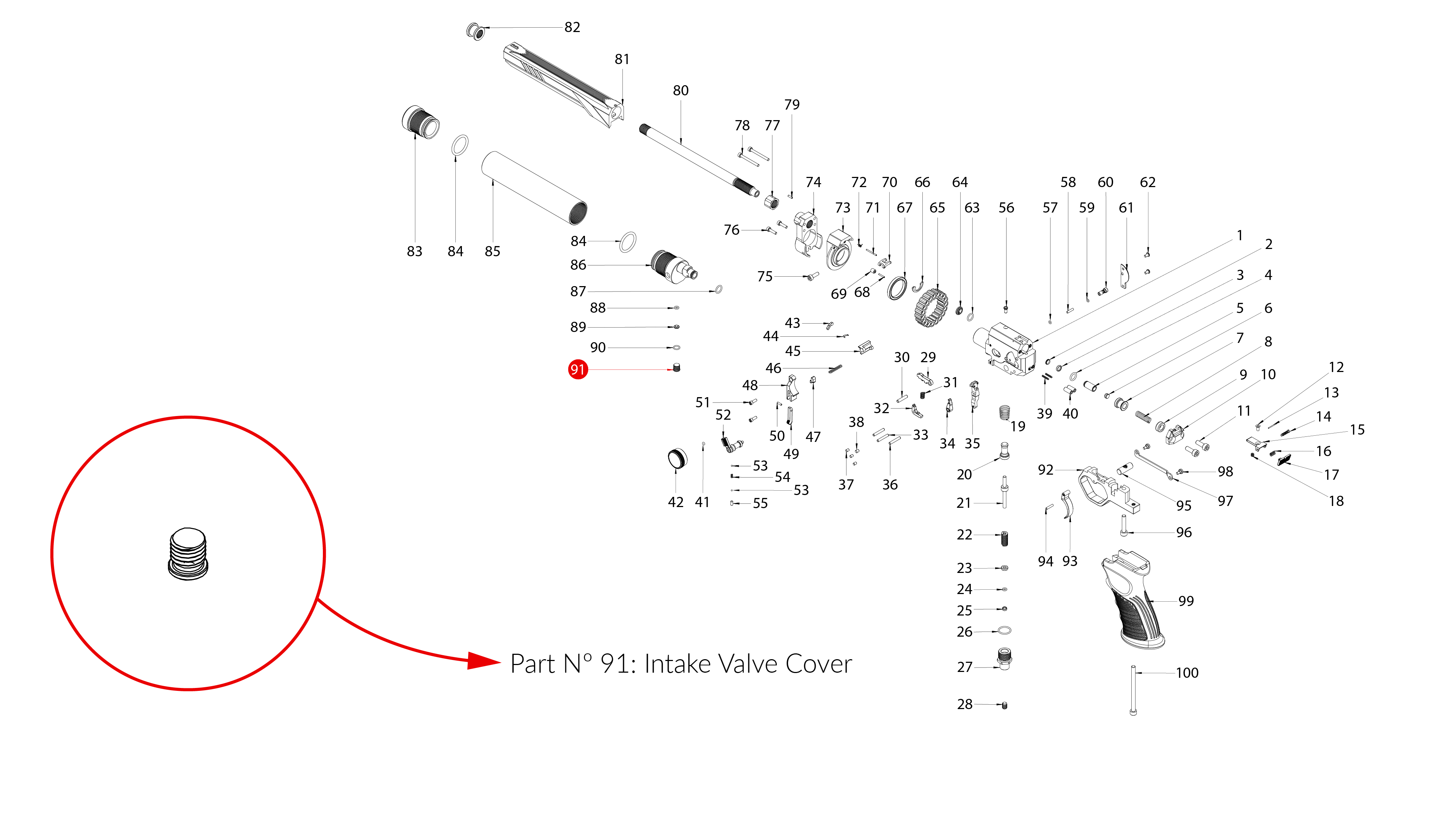

| 91 | Intake Valve Cover |

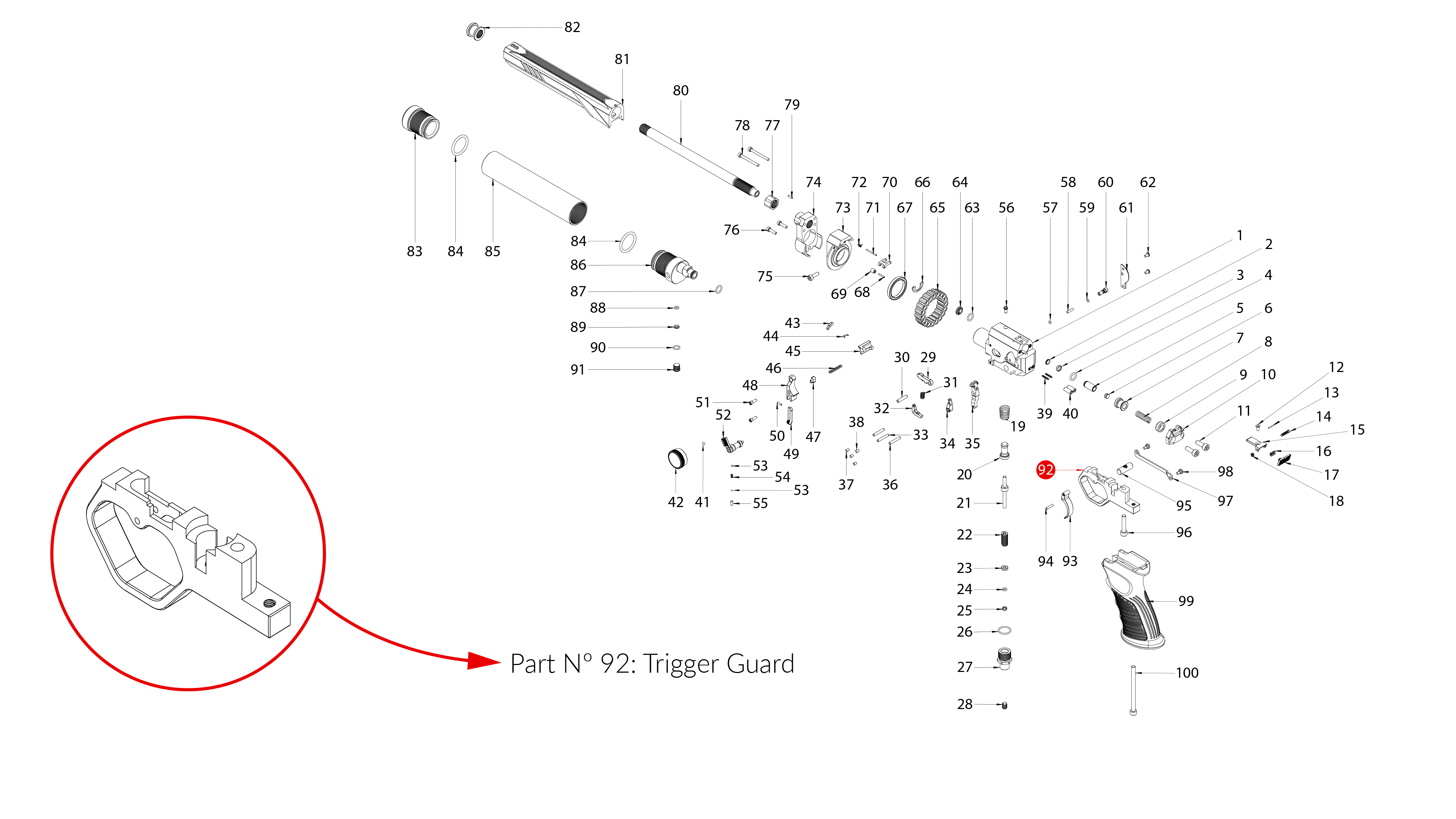

| 92 | Trigger Guard |

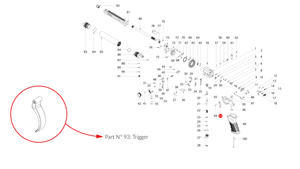

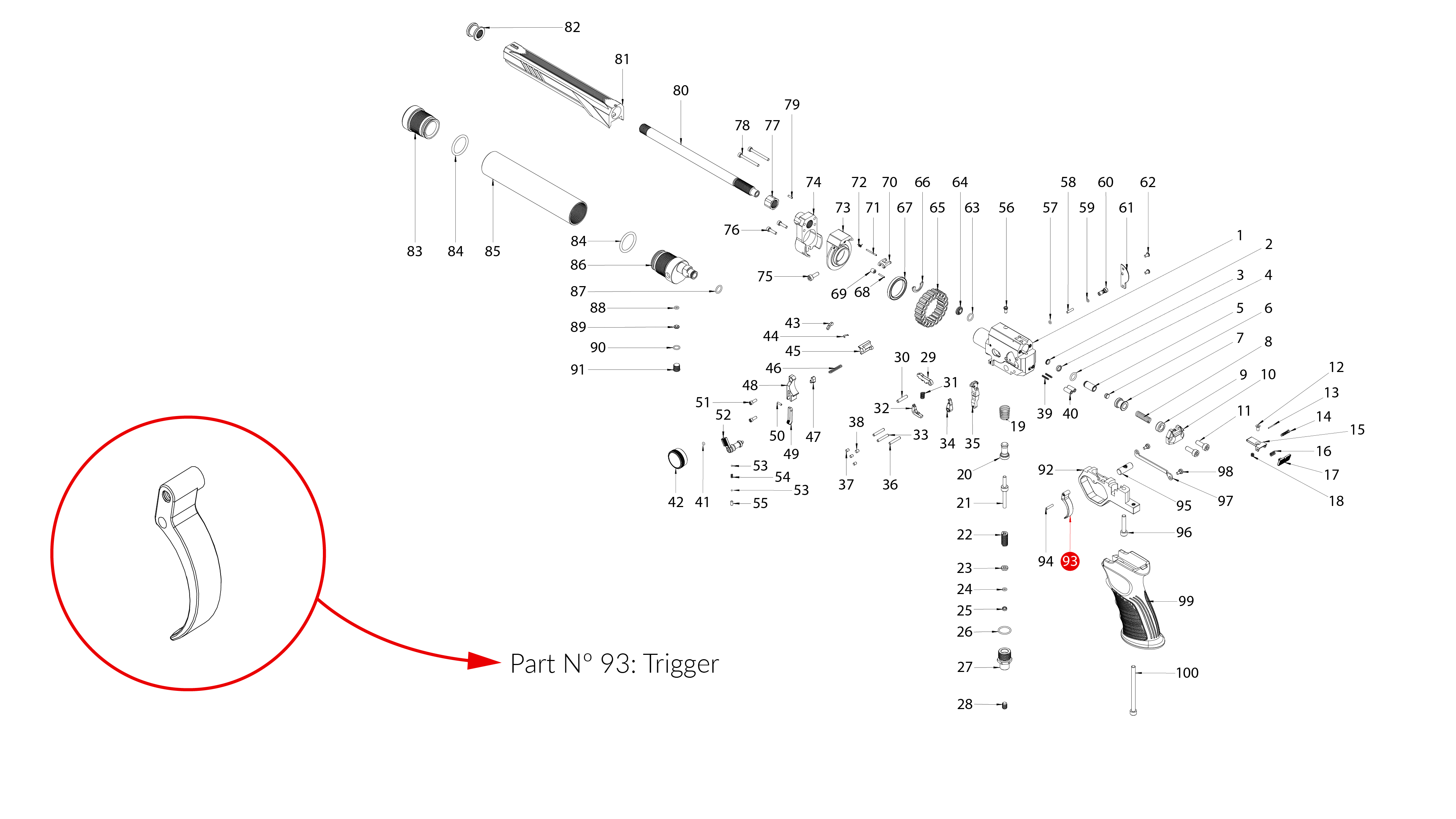

| 93 | Trigger |

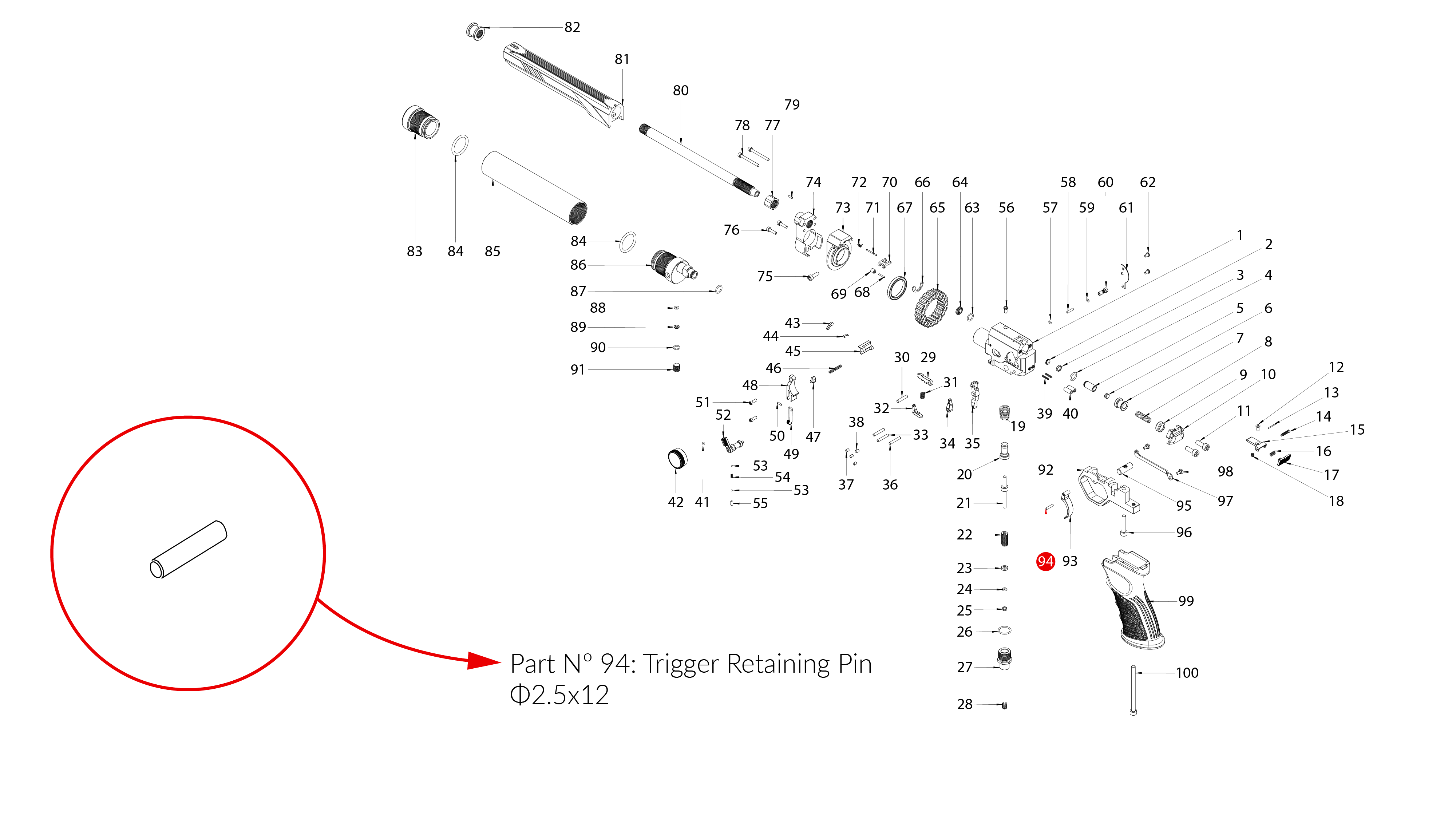

| 94 | Trigger Retaining Pin Φ2.5x12 |

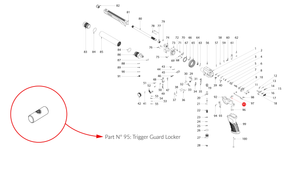

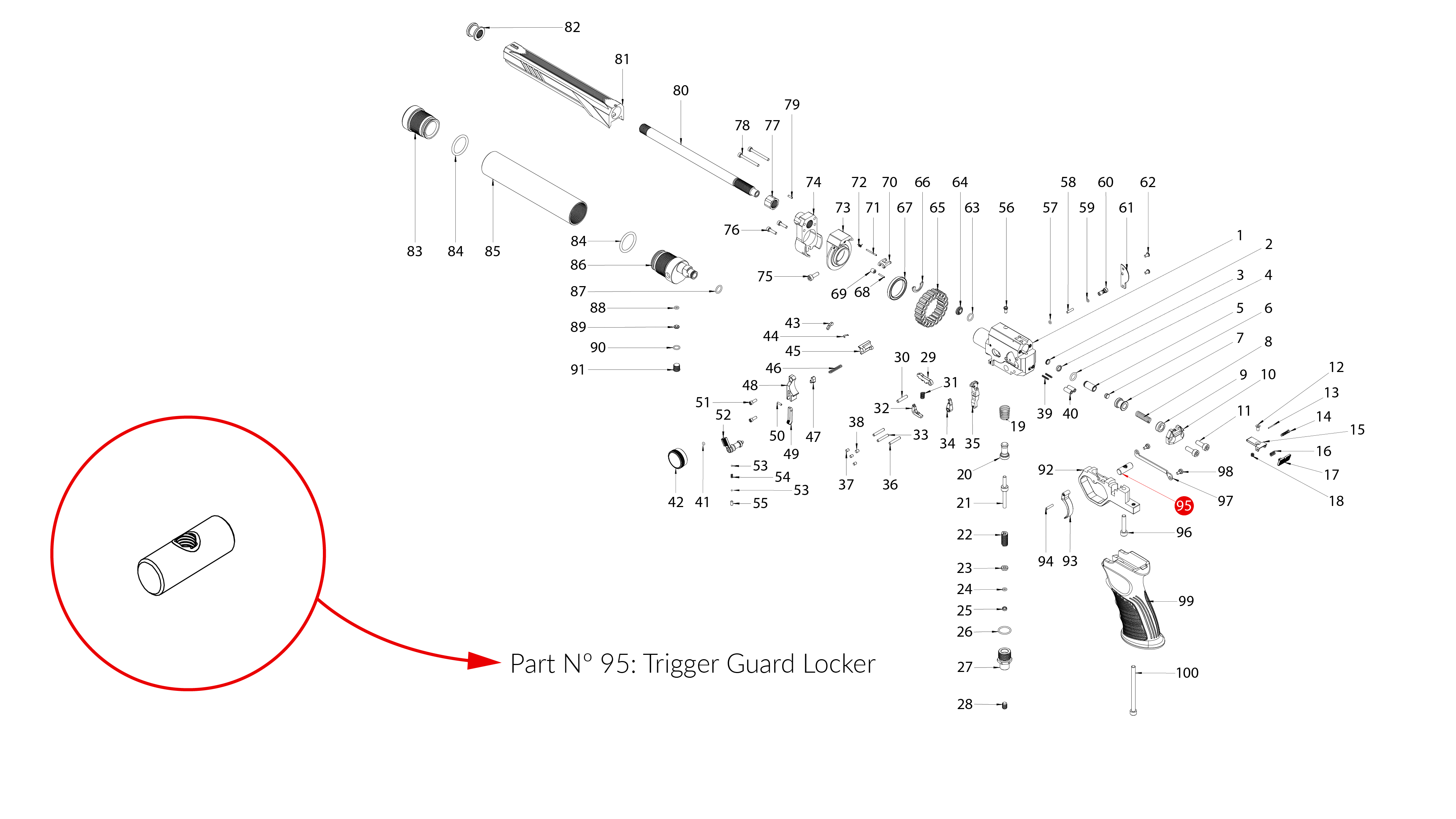

| 95 | Trigger Guard Locker |

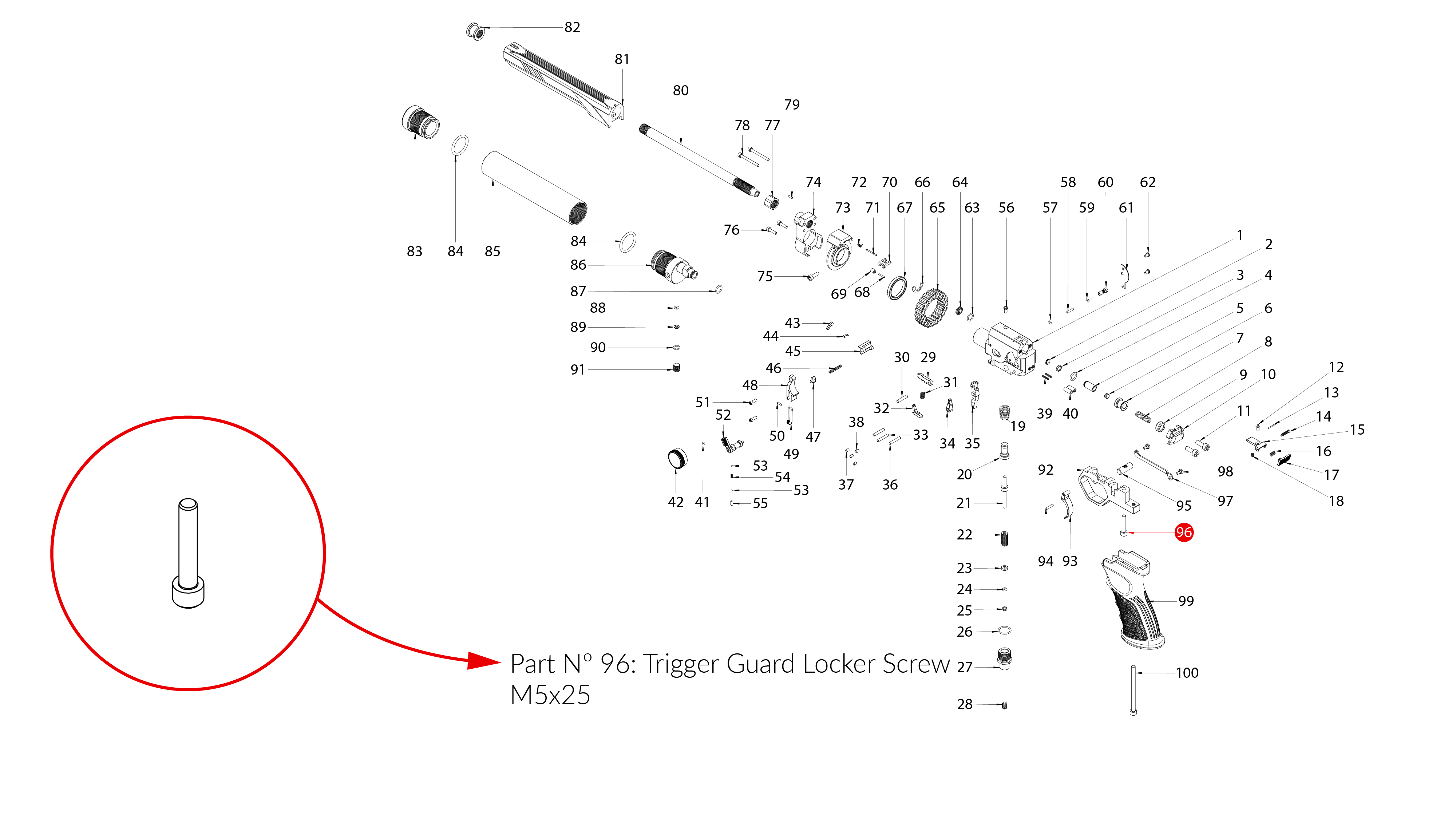

| 96 | Trigger Guard Locker Screw M5x25 |

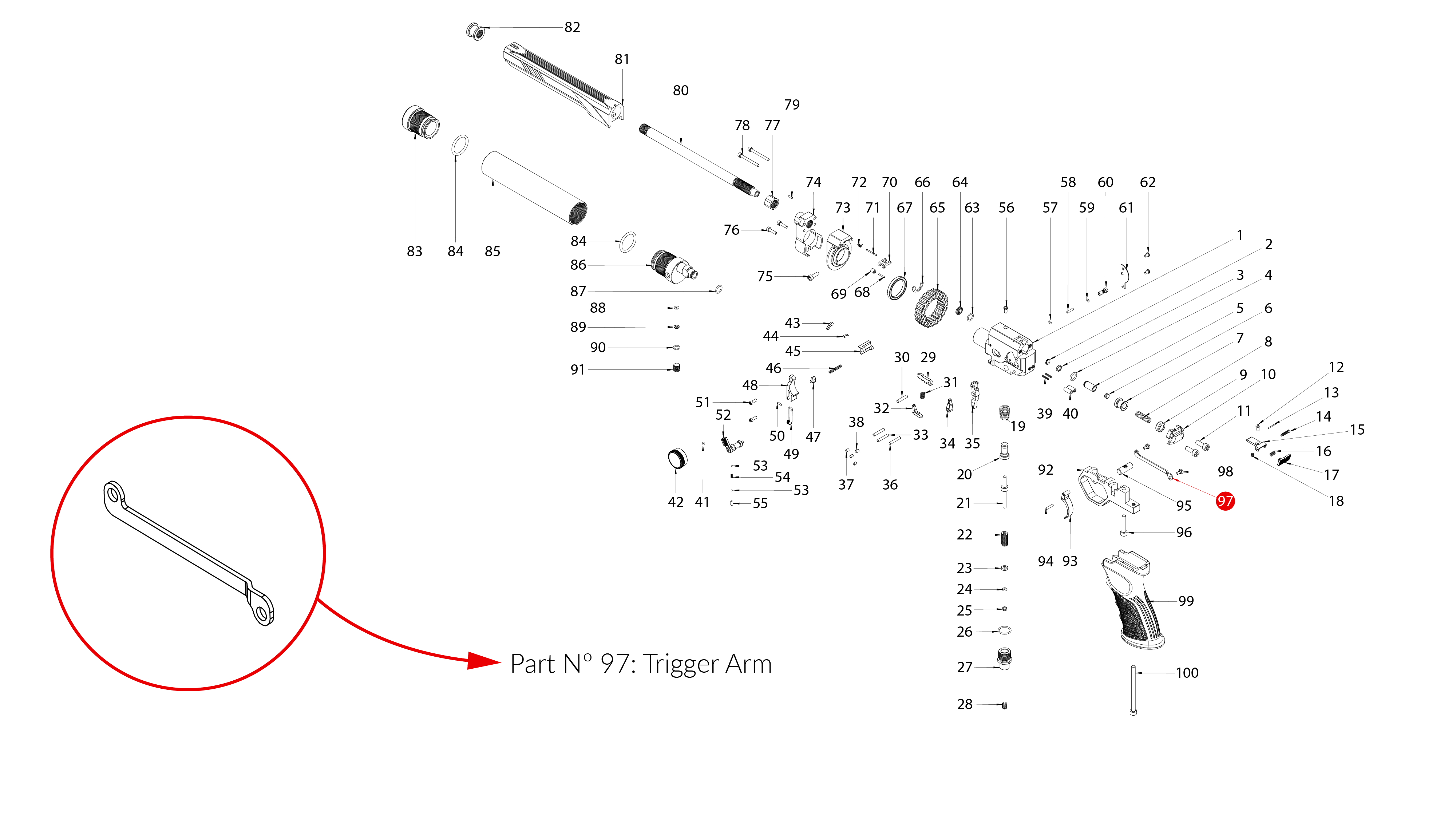

| 97 | Trigger Arm |

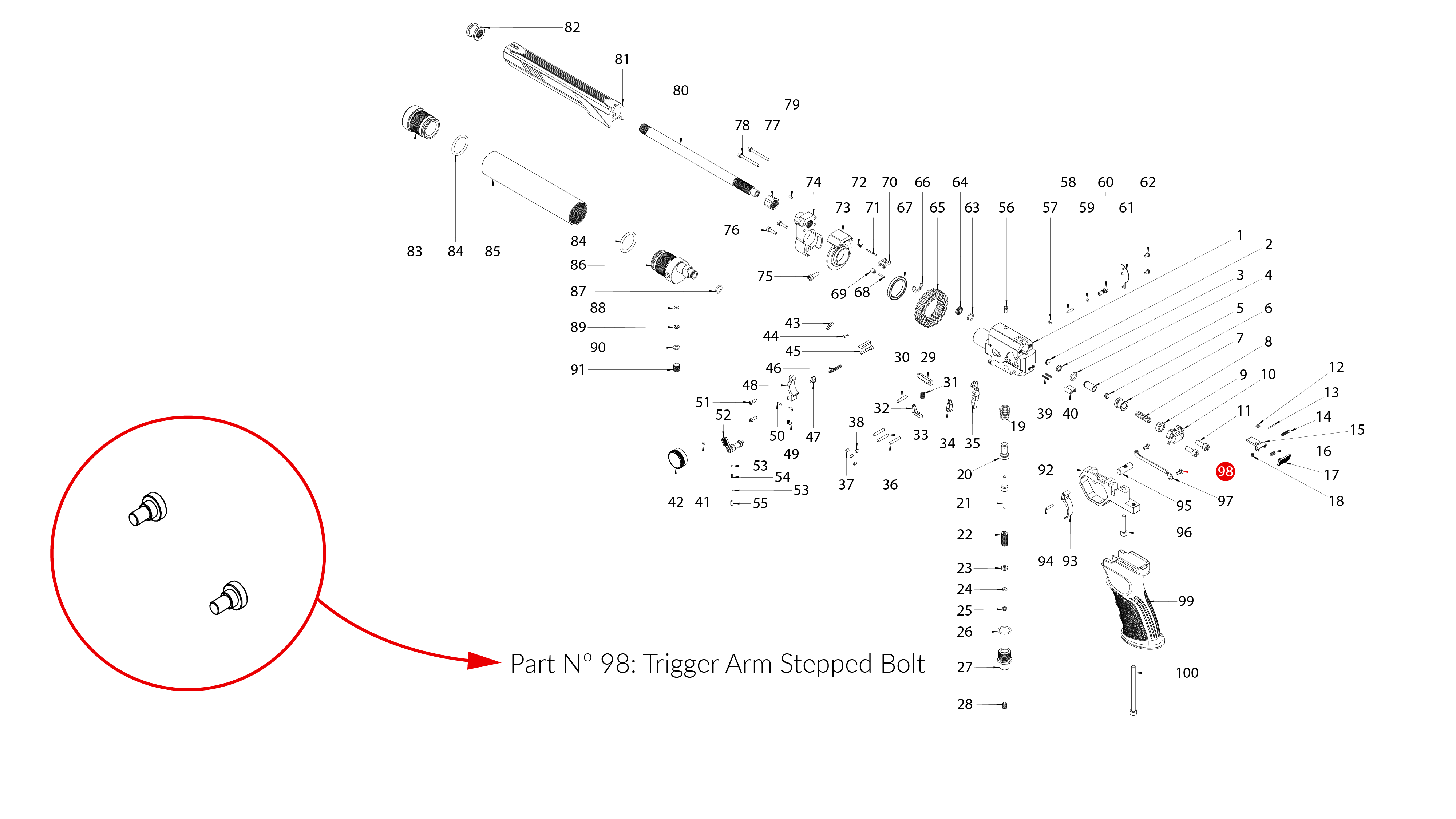

| 98 | Original Trigger Arm Stepped Bolt (x2) |

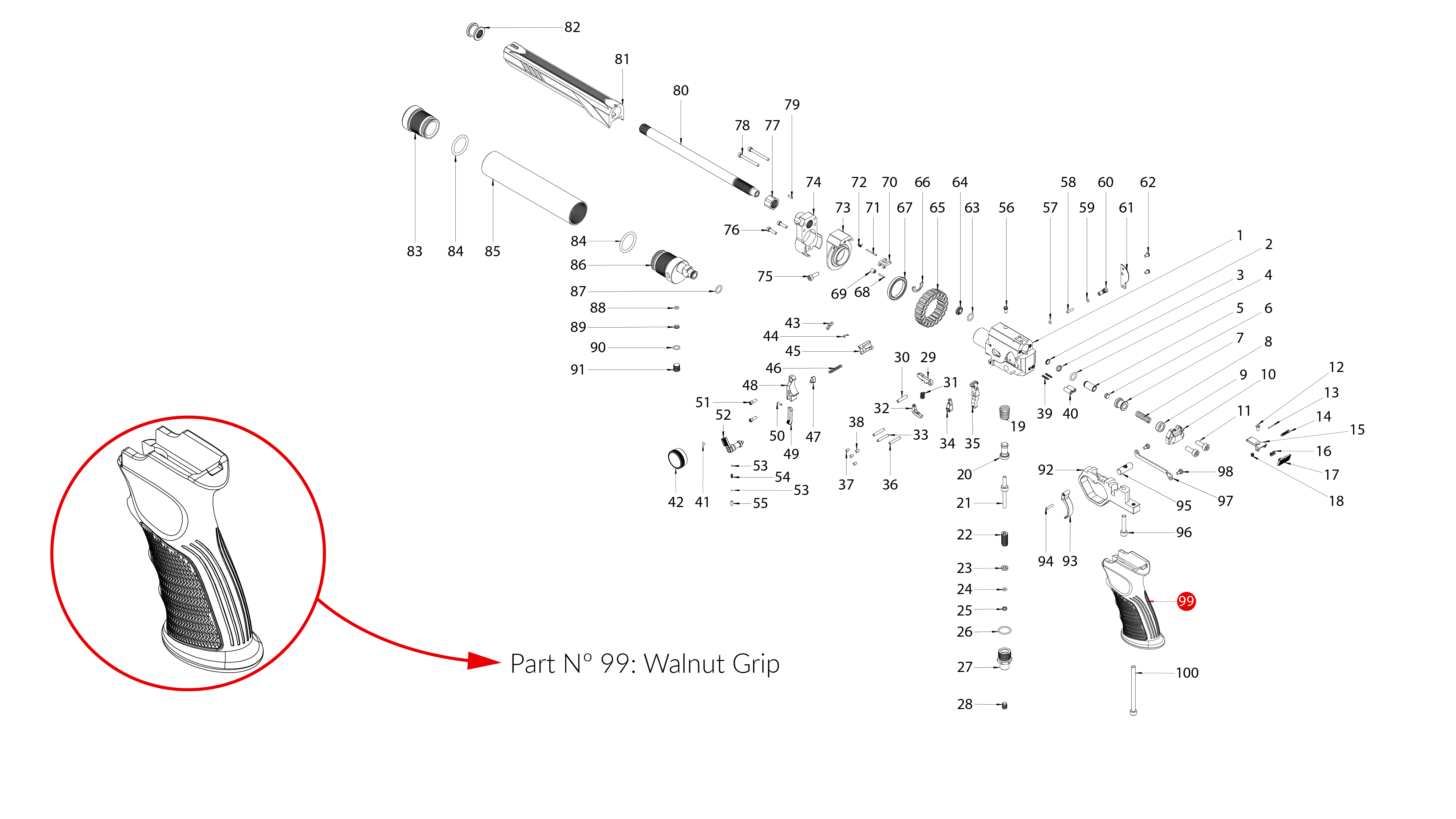

| 99 | Walnut Grip |

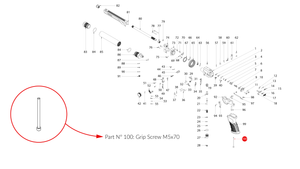

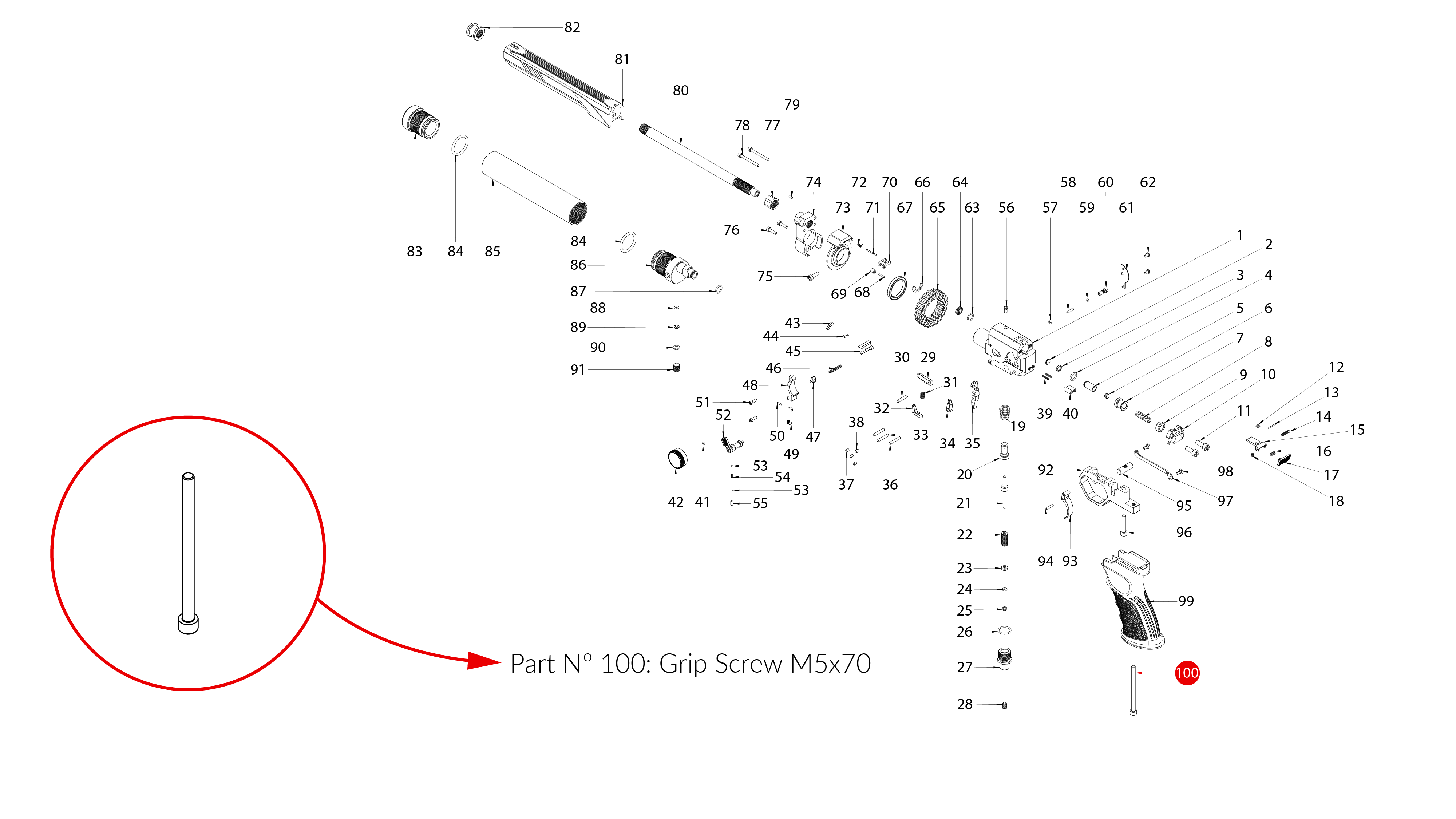

| 100 | Grip Screw M5x70 |
Inside The Box
- Spare Parts for GK1 of your choice
