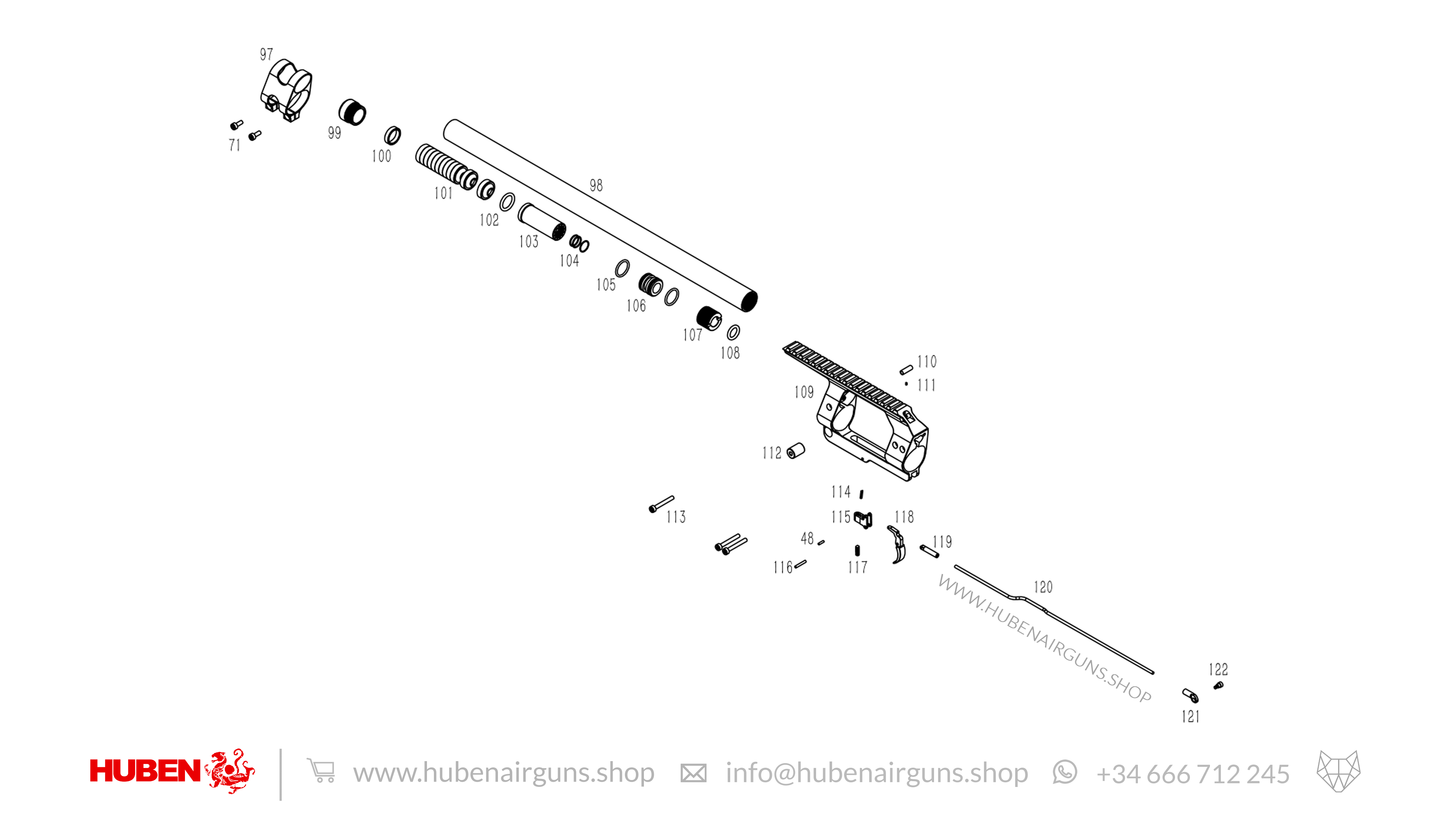

Spare Parts for Huben K1 Air Rifle - Diagram 4: Shroud + Trigger + Rail

€2,90

Impuestos incluidos. Envío calculado al finalizar la compra.

Huben Spare Parts for K1 – Diagram 4 Shroud + Trigger + Rail includes vital components to maintain precision, control, and stability. Engineered for durability and seamless integration.

Technical Specifications

PART Nº	DESCRIPTION
48	Magazine Release Arm Pin/Trigger Arm Housing Pin Φ2x8 (2,90)
71	Barrel Housing Allen Screw M4x12
97	Barrel Band
98	Barrel Shroud
99	Shroud End Muzzle Cap
100	Shroud Baffle Spacer
101	Shroud Baffle (x12)
102	Barrel to Shroud Plastic Bushing O-Ring (front) 22.5x3
103	Barrel to Shroud Plastic Bushing
104	Barrel to Shroud Plastic Bushing O-Ring (back) 16x1
105	Barrel to Shroud Plastic Bushing O-Ring (front) 21x2
106	Reflux Air Stop Bushing
107	Barrel Shroud Plastic Threaded Bushing
108	Barrel Shroud Plastic Threaded Bushing O-Ring 16x2
109	Tube and Barrel Frame with Picatinny Rail
110	Air Level
111	Air Level Spring
112	Stock Retain Pin Rubber Bushing
113	Tube and Barrel Frame Allen Screw M4x27
114	Trigger Spring 2.5x14x0.25
115	Trigger Arm Housing
116	Trigger Arm Housing Pin (long) Φ2.5x16
117	Trigger Adjust Allen Set Screw M4x12
118	Trigger
119	Trigger Arm Adjuster (front)
120	Trigger Arm
121	Trigger Arm Adjuster (rear)
122	Trigger Arm Stepped Bolt
